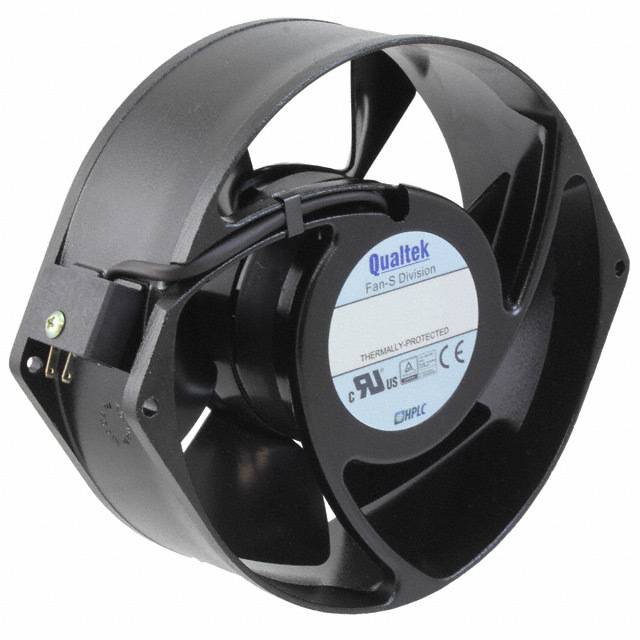

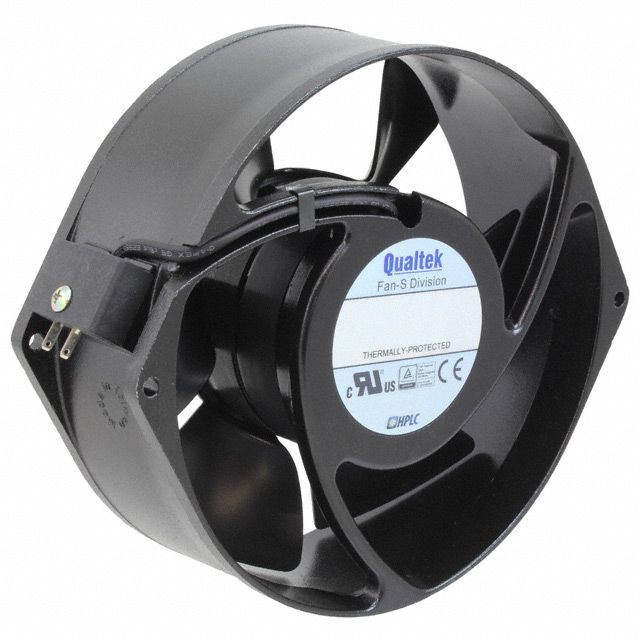

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)
0
13 in stock

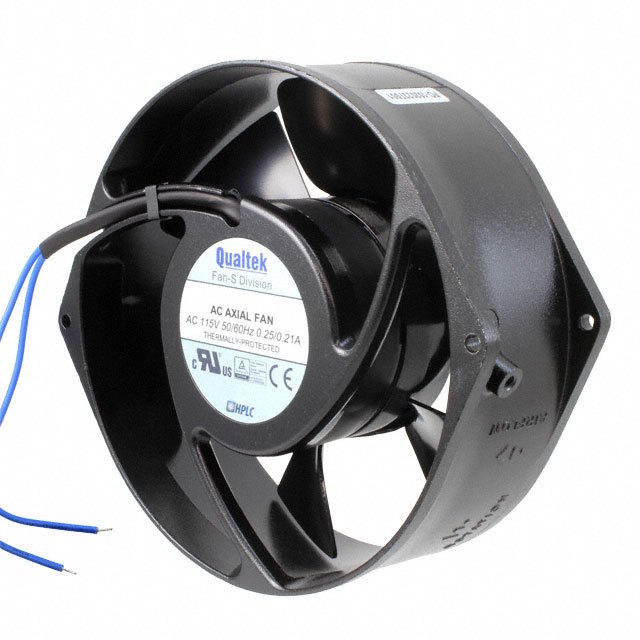

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)
0
19 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)
0
18 in stock

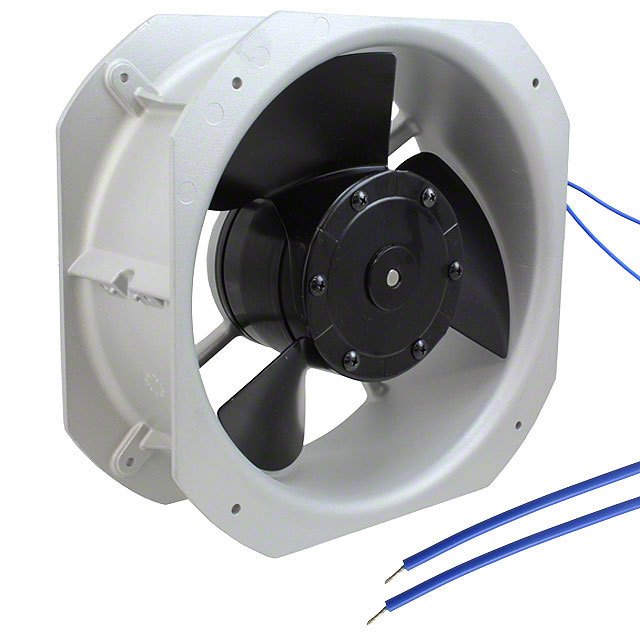

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
46 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
3 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
48 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
7 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock

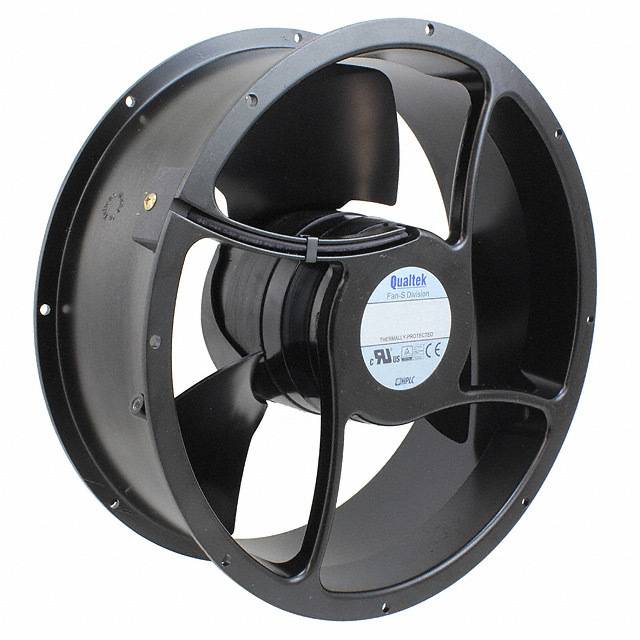

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 860.0 CFM (24.08m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 97.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6 lbs (2.7kg)
0
24 in stock
