Qualtek Electronics Corp.
Part Number
Manufacturer
Description
Unit Price
In Stock

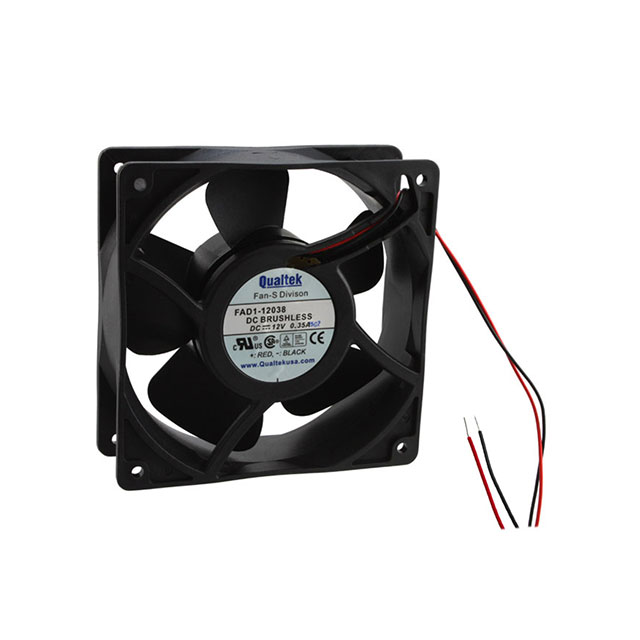

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-12038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 71.6 CFM (2.00m鲁/min)
Static Pressure : 0.128 in H2O (31.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.2 dB(A)
Power (Watts) : 2.64W
RPM : 1950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.518 lb (234.96g)
0
108 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-12038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 96.3 CFM (2.70m鲁/min)
Static Pressure : 0.228 in H2O (56.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 4.08W
RPM : 2540 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.518 lb (234.96g)
0
128 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-12038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 120.1 CFM (3.36m鲁/min)
Static Pressure : 0.335 in H2O (83.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB(A)
Power (Watts) : 9.12W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.518 lb (234.96g)
0
8 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-12038
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.5 CFM (2.95m鲁/min)
Static Pressure : 0.265 in H2O (66.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.7 dB(A)
Power (Watts) : 8.64W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.518 lb (234.96g)
0
520 in stock

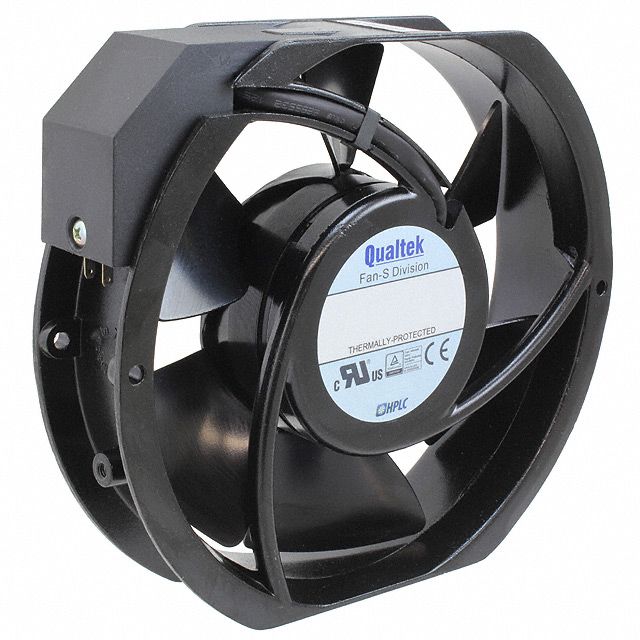

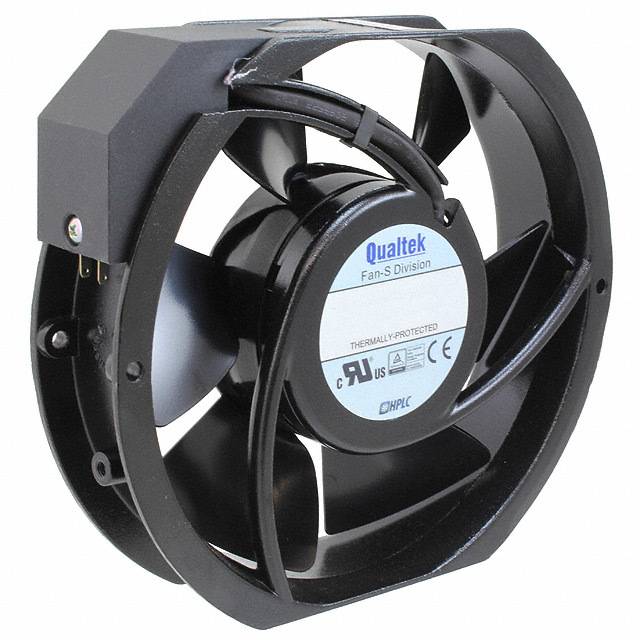

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17238
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.571 in H2O (142.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)
0
50 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17238
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.571 in H2O (142.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)
0
33 in stock

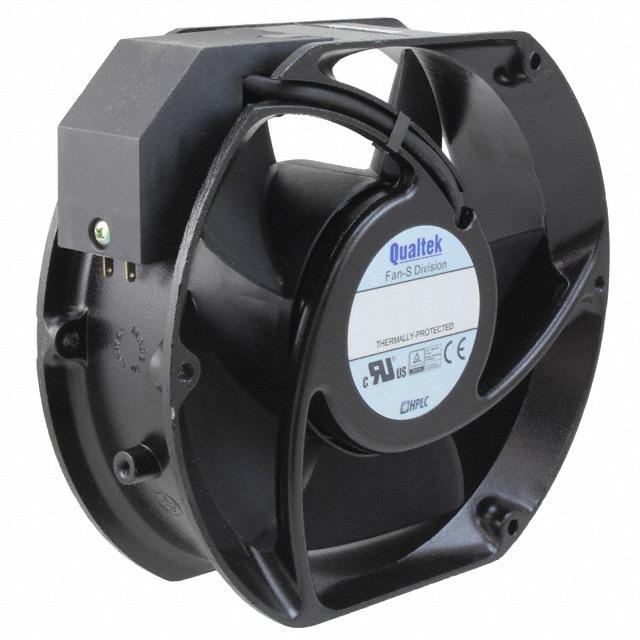

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)
0
27 in stock

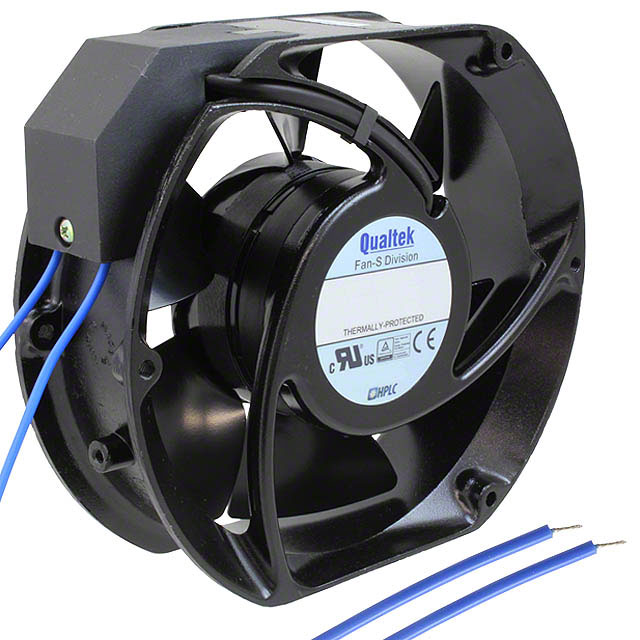

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)
0
71 in stock

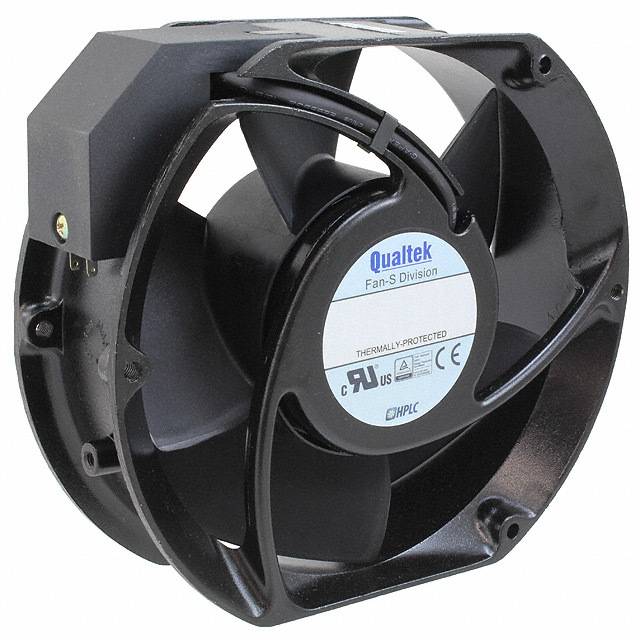

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 275.0 CFM (7.70m鲁/min)
Static Pressure : 0.768 in H2O (191.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 27.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)
0
147 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)
0
18 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)
0
49 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 275.0 CFM (7.70m鲁/min)
Static Pressure : 0.768 in H2O (191.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 27.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)
0
37 in stock
