NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

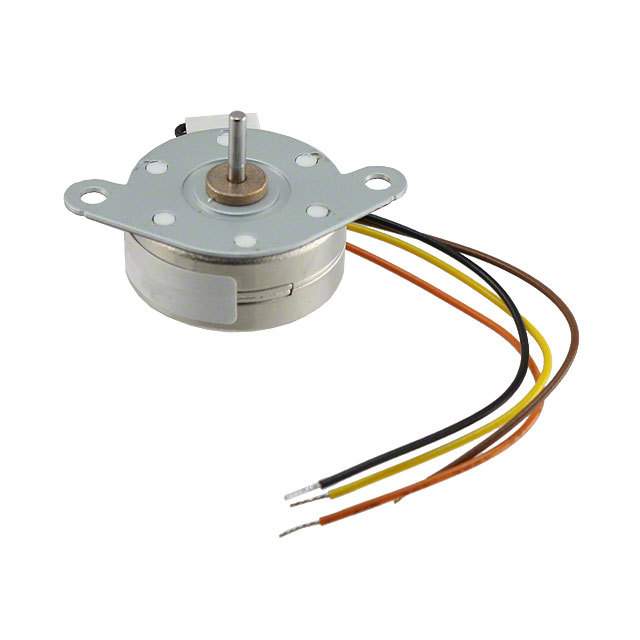

PM25S-048-HHC4 PM25S-048-HHC4

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.260" (32.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 16 Ohms
Features : Round Shaft
0
157 in stock

PM35L-048-HHC7 PM35L-048-HHC7

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
22 in stock

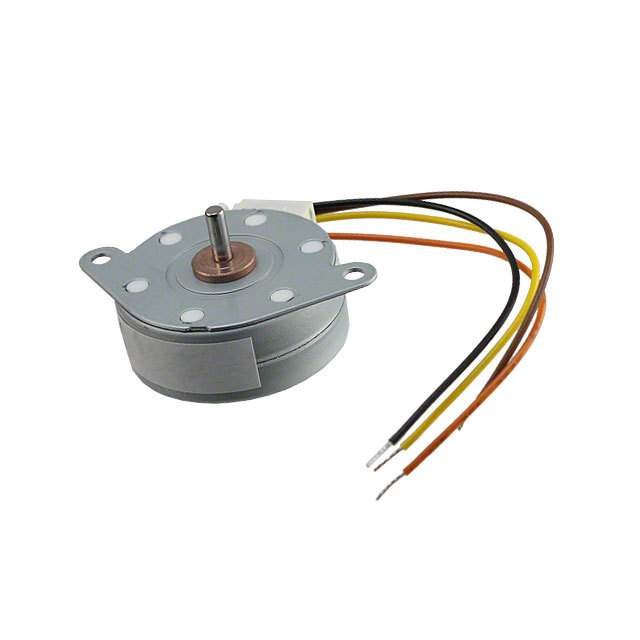

PM35S-048-HHC6 PM35S-048-HHC6

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.9 / 49
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
83 in stock

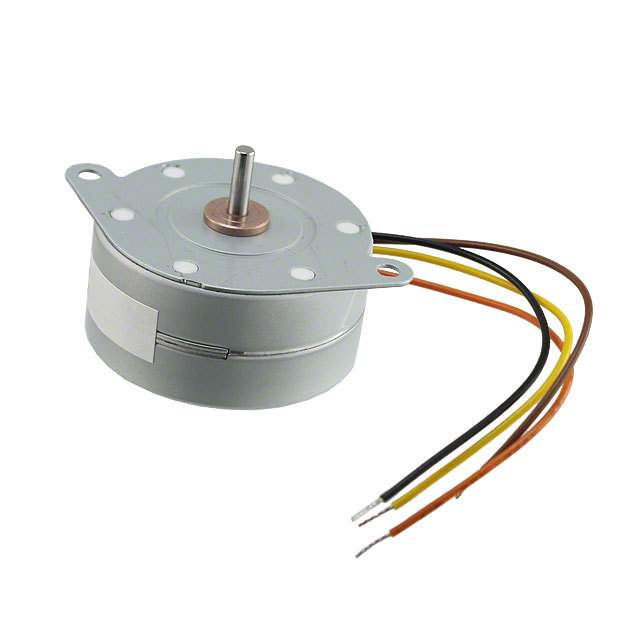

PM42L-048-HHC9 PM42L-048-HHC9

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17.6 / 124
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 7 Ohms
Features : Round Shaft
0
32 in stock

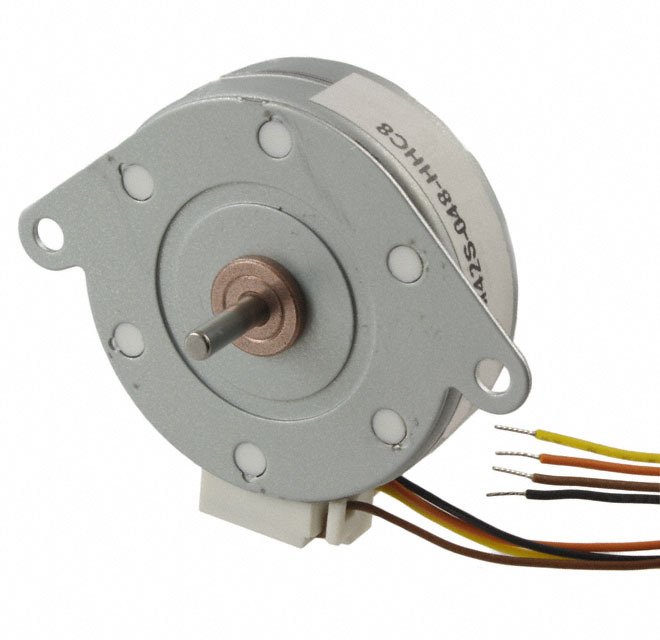

PM42S-048-HHC8 PM42S-048-HHC8

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.3 / 66
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
0
53 in stock

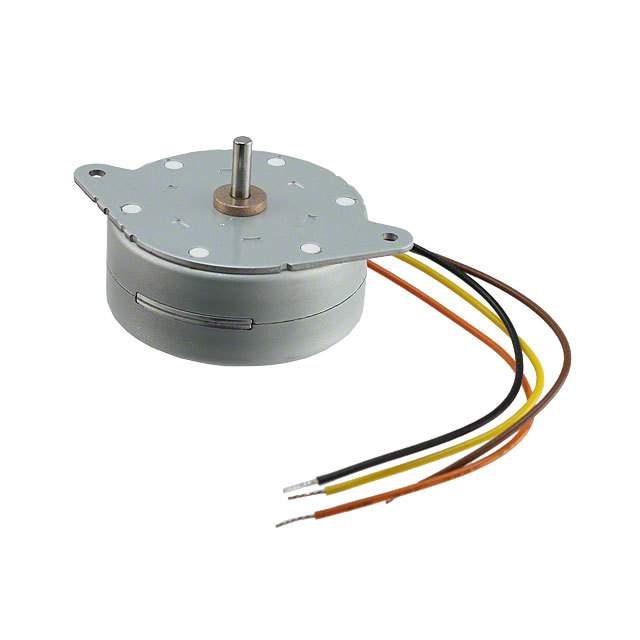

PM55L-048-HHD0 PM55L-048-HHD0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PM
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : -
Torque - Holding (oz-in / mNm) : 23.4 / 167
Size / Dimension : Round - 2.160" Dia (55.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.591" (15.00mm)
Mounting Hole Spacing : 2.560" (65.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 5.5 Ohms
Features : Round Shaft
0
4 in stock

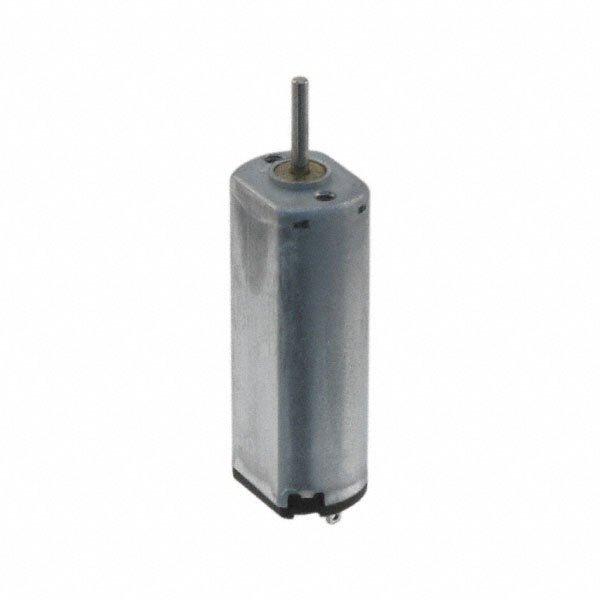

PNN13RE09H1 PNN13RE09H1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PNN13
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 3VDC
RPM : 13833 RPM
Torque - Rated (oz-in / mNm) : 0.01 / 0.1
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.236" (6.00mm)
Mounting Hole Spacing : 0.213" (5.40mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

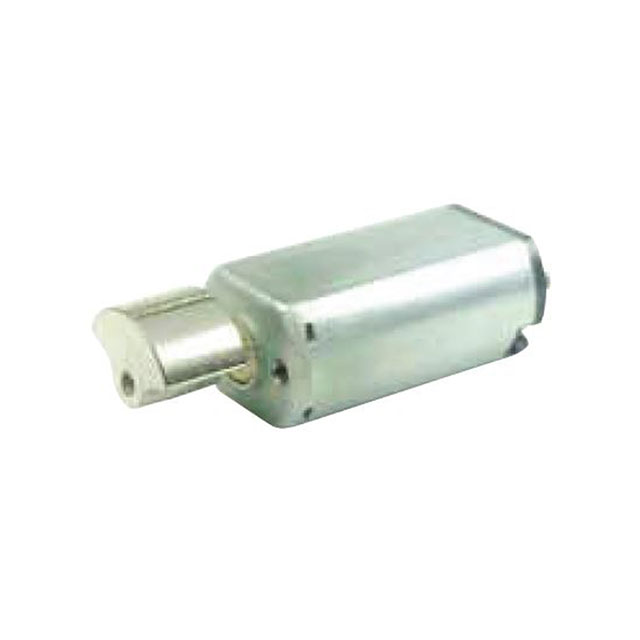

PNN7RB55PW PNN7RB55PW

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Vibration, ERM
Motor Type : -
Voltage - Rated : 3VDC
RPM : 7500 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : -
Length - Shaft and Bearing : 0.236" (6.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
9821 in stock

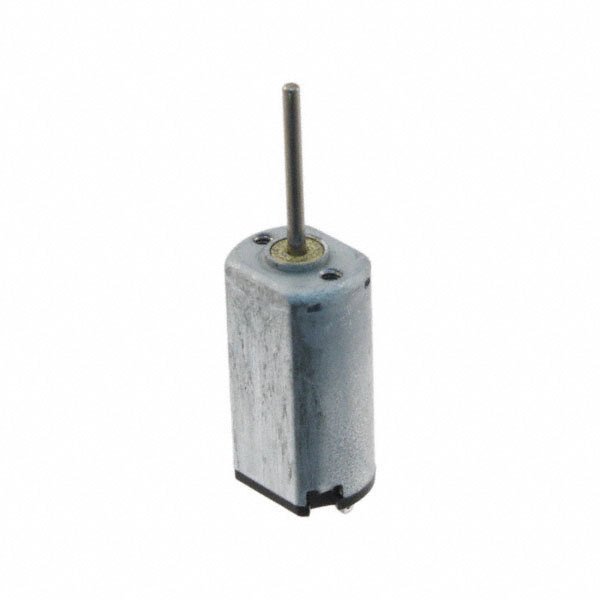

PNN7RE08JD PNN7RE08JD

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PNN7
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 3VDC
RPM : 16364 RPM
Torque - Rated (oz-in / mNm) : 0.01 / 0.1
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.413" (10.50mm)
Mounting Hole Spacing : 0.213" (5.40mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
896 in stock

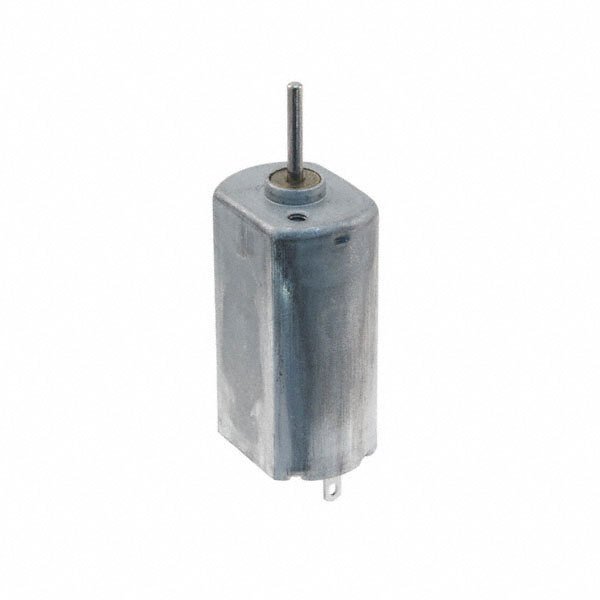

PPN13PB11C2 PPN13PB11C2

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PPN13
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 7.4VDC
RPM : 7473 RPM
Torque - Rated (oz-in / mNm) : 0.01 / 0.1
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.634" Dia (16.10mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.433" (11.00mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
1239 in stock

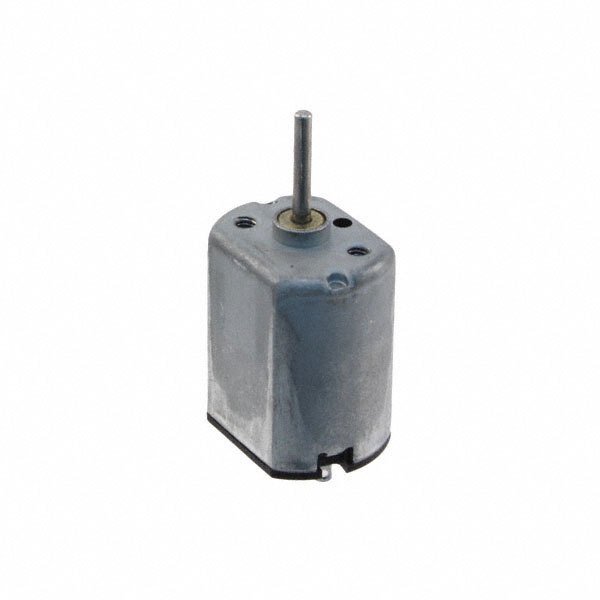

PPN7PA12C1 PPN7PA12C1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PPN7
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 5VDC
RPM : 11605 RPM
Torque - Rated (oz-in / mNm) : 0.07 / 0.49
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.614" Dia (15.60mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.433" (11.00mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
5263 in stock

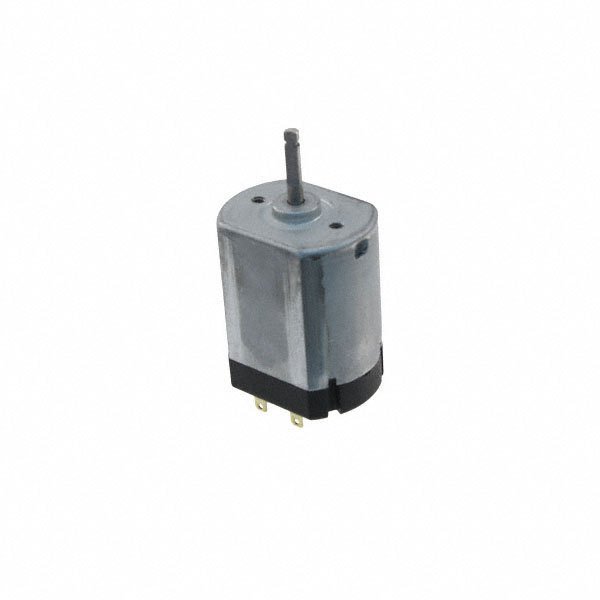

PWN10VEE24AA PWN10VEE24AA

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PWN10V
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 11139 RPM
Torque - Rated (oz-in / mNm) : 0.28 / 1.96
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.803" Dia (20.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 0.488" (12.40mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
499 in stock
