Part Number
Manufacturer
Description
Unit Price
In Stock

MXN13FB08B1 MXN13FB08B1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : MXN13
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 8VDC
RPM : 4714 RPM
Torque - Rated (oz-in / mNm) : 0.14 / 0.98
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 1.004" Dia (25.50mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

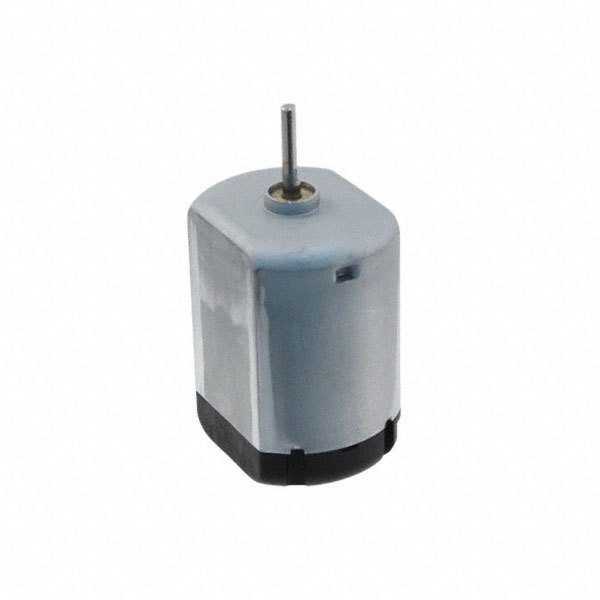

PAN14EE12AA1 PAN14EE12AA1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PAN14
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 12850 RPM
Torque - Rated (oz-in / mNm) : 0.69 / 4.9
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.953" Dia (24.20mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : -
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
6842 in stock

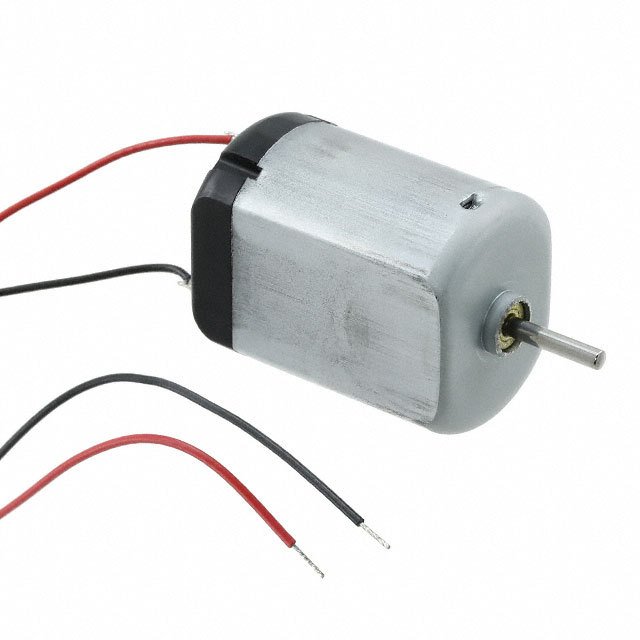

PAN14EE12MD PAN14EE12MD

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PAN14
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : -
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
1957 in stock

PG0024-08M000 PG0024-08M000

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock

PG10-K20-HHE4 PG10-K20-HHE4

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock

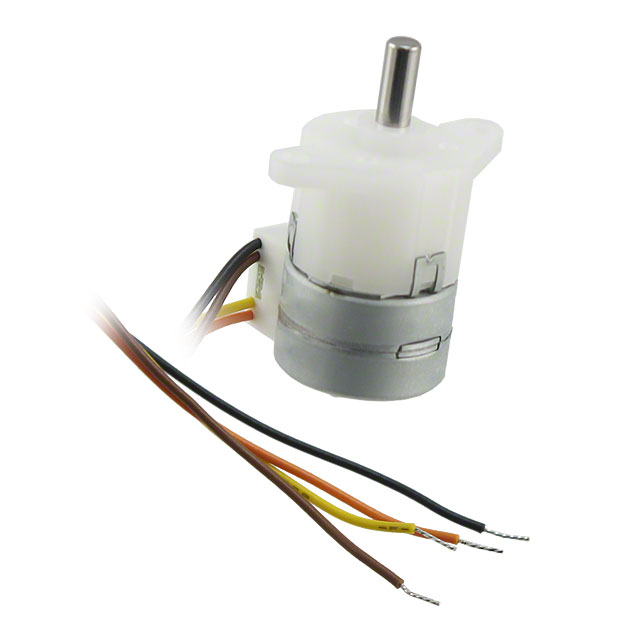

PG15S-D20-HHB9 PG15S-D20-HHB9

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 15VDC
Current Rating : 100mA
Steps per Revolution : 2048
Step Angle : 0.176°
Accuracy : -
Torque - Holding (oz-in / mNm) : 21.2 / 150
Size / Dimension : Round - 0.591" Dia (15.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 10 Ohms
Features : Round Shaft
0
417 in stock

PG15S-J20-HHF3 PG15S-J20-HHF3

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 1000
Step Angle : 0.36°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.591" Dia (15.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Wire Leads
Operating Temperature : 0°C ~ 50°C
Coil Resistance : 10 Ohms
Features : Round Shaft
0
100 in stock

PG15S-K20-HHF0 PG15S-K20-HHF0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock

PG20L-020-XXXX PG20L-020-XXXX

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PG20L
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 3VDC
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.787" Dia (20.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 80 Ohms
Features : Flatted Shaft
0
100 in stock

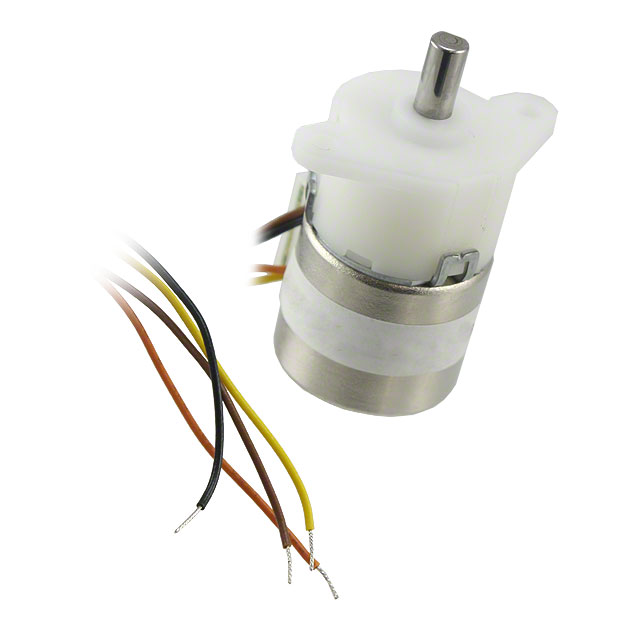

PG20L-D20-HHC0 PG20L-D20-HHC0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 10VDC
Current Rating : 350mA
Steps per Revolution : 1818
Step Angle : 0.198°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.787" Dia (20.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 10 Ohms
Features : Flatted Shaft
0
547 in stock

PG20L-K20-HHF1 PG20L-K20-HHF1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : *
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock

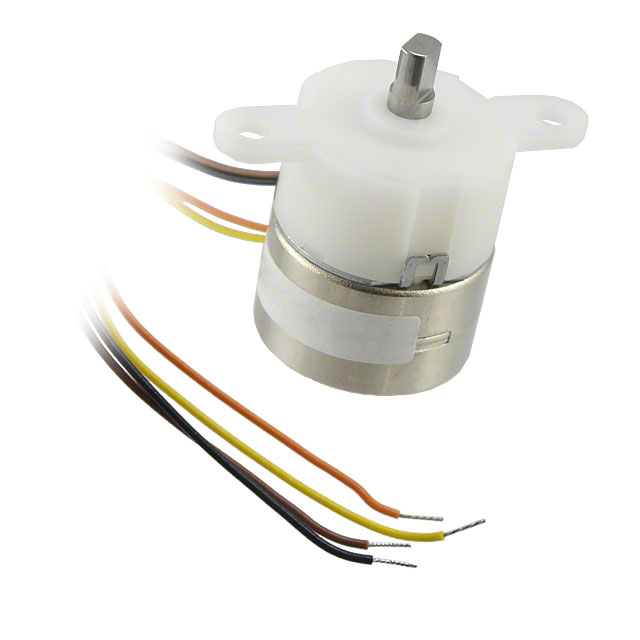

PG25L-D24-HHC1 PG25L-D24-HHC1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : PG
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 250mA
Steps per Revolution : 727
Step Angle : 0.495°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.7 / 450
Size / Dimension : Round - 0.984" Dia (25.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.378" (35.00mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 28 Ohms
Features : Double Flatted Shaft
0
231 in stock
