NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.


Part Number

Manufacturer

Description

Unit Price

In Stock

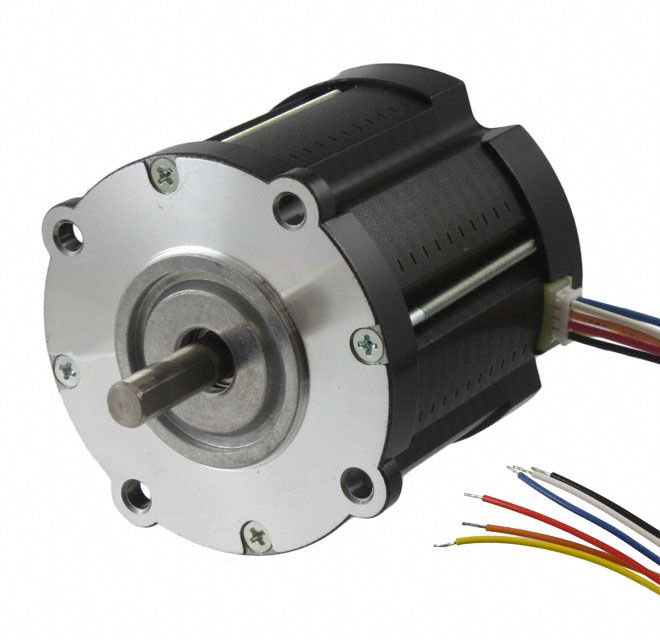

29SM-K138-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.6A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.25 Ohms
Features : Round Shaft

100 in stock

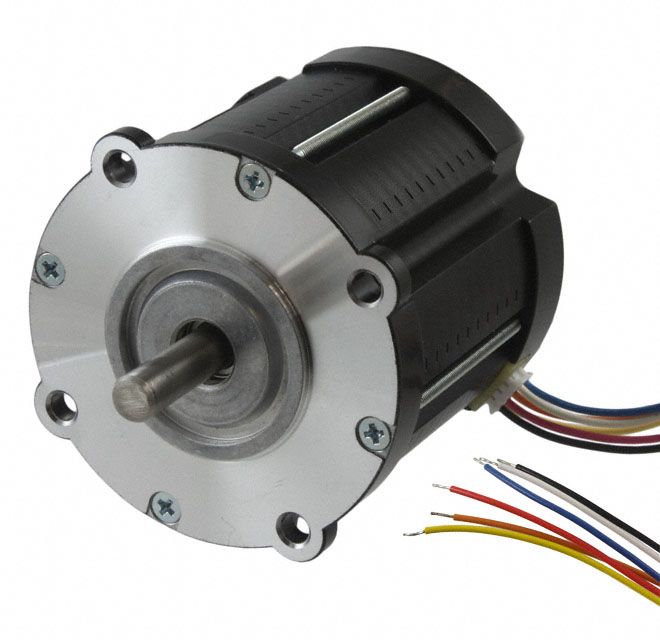

29SM-K138-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.6A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.25 Ohms
Features : Round Shaft

100 in stock

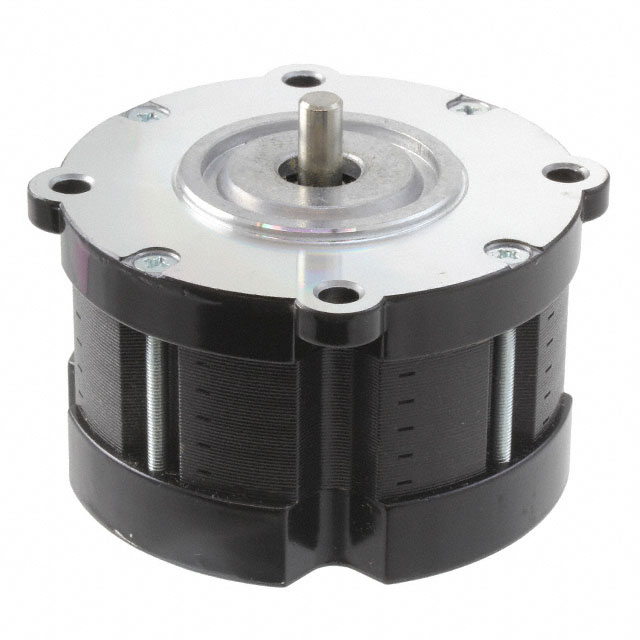

29SM-K242BT01CA

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : -
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : -
Features : Round Shaft

8 in stock

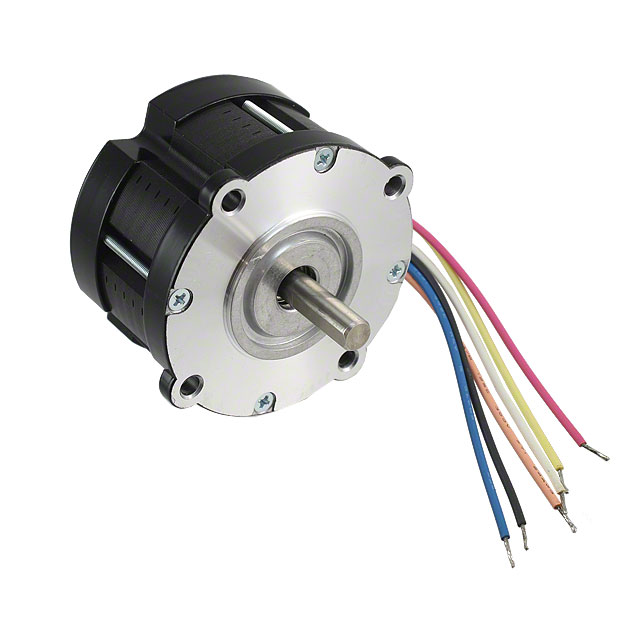

29SM-K250-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.6A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 82.15 / 580
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2 Ohms
Features : Round Shaft

5 in stock

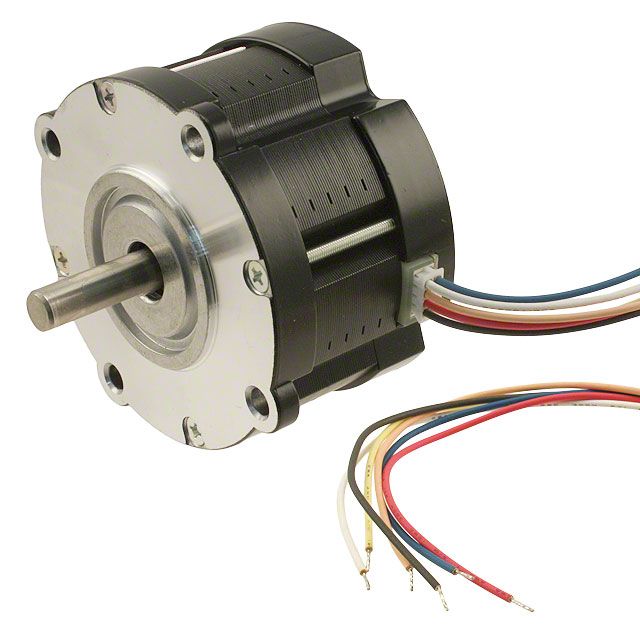

29SM-K250-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.6A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 82.15 / 580
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2 Ohms
Features : Round Shaft

100 in stock

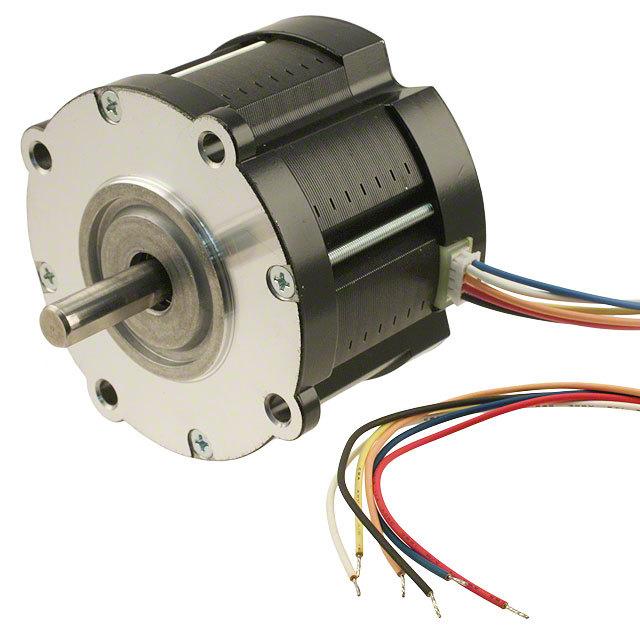

29SM-K379-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 116.14 / 820
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.75 Ohms
Features : Round Shaft

14 in stock

29SM-K379-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 116.14 / 820
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.75 Ohms
Features : Round Shaft

100 in stock

29SM-K550-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 53.82 / 380
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.1 Ohms
Features : Round Shaft

12 in stock

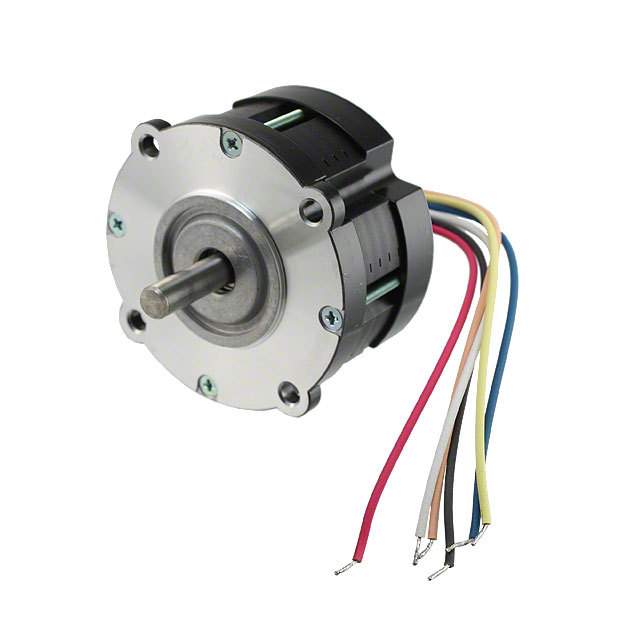

29SM-K550-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 53.82 / 380
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.1 Ohms
Features : Round Shaft

17 in stock

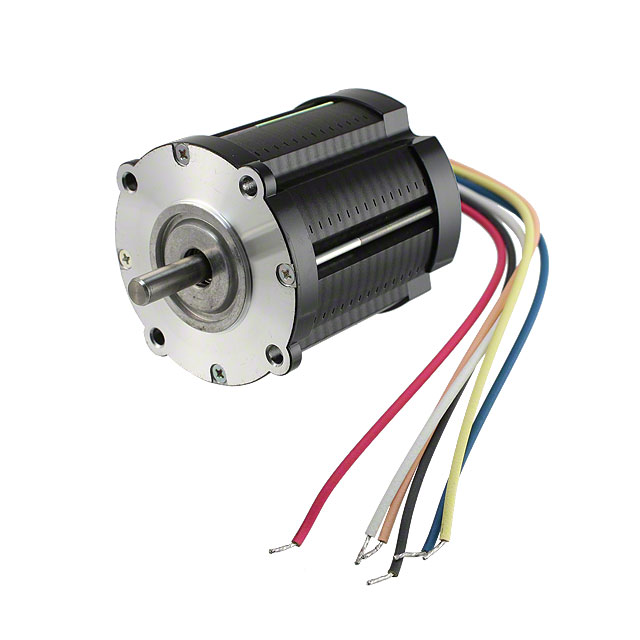

29SM-K711-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 205.36 / 1450
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Round Shaft

13 in stock

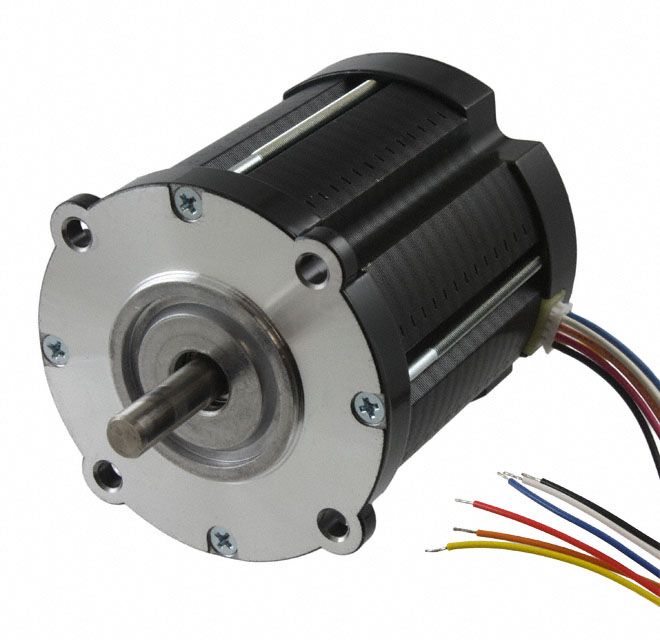

29SM-K711-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 205.36 / 1450
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Round Shaft

100 in stock

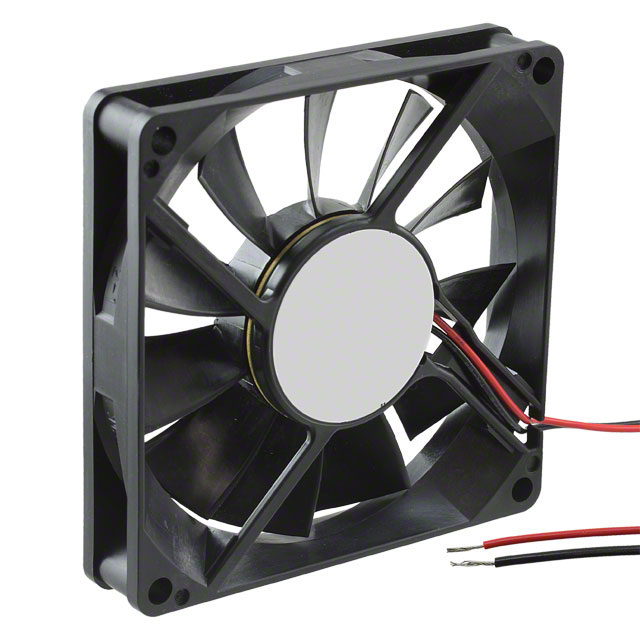

3106KL-04W-B30-B02

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3106KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 23.3 CFM (0.652m鲁/min)
Static Pressure : 0.064 in H2O (16.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : 1.32W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : 0.111 lb (50.35g)

968 in stock
