NMB Technologies Corp.
- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.
From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.
As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.
At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.
Part Number
Manufacturer
Description
Unit Price
In Stock

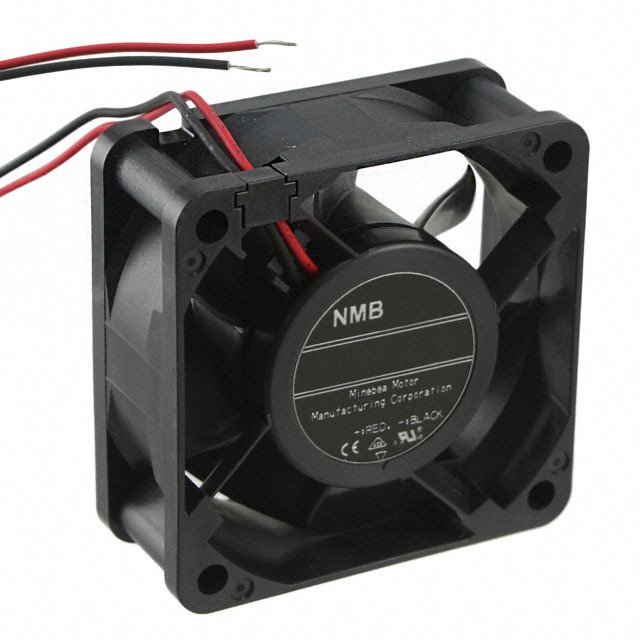

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 14.5 CFM (0.406m鲁/min)
Static Pressure : 0.104 in H2O (26.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 17.0 dB(A)
Power (Watts) : 720mW
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
162 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 16.9 CFM (0.473m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB(A)
Power (Watts) : 960mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
789 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 19.8 CFM (0.554m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.5 dB(A)
Power (Watts) : 1.20W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
1783 in stock

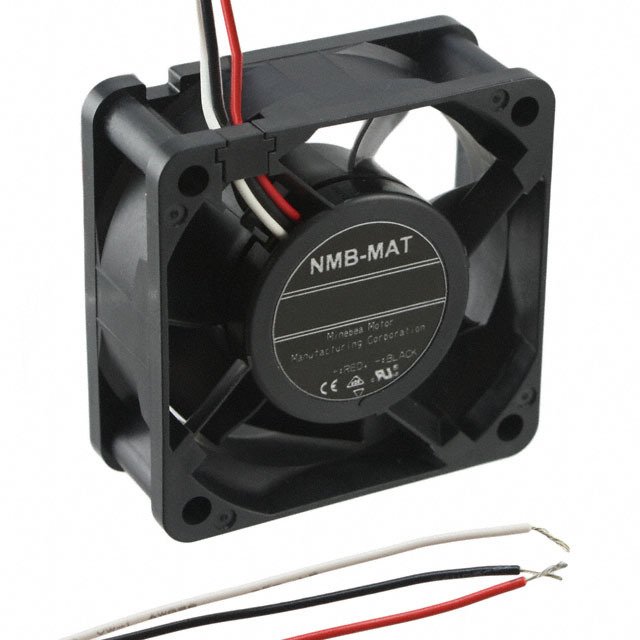

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 19.8 CFM (0.554m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 26.5 dB(A)
Power (Watts) : 1.20W
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
3554 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.3 CFM (0.652m鲁/min)
Static Pressure : 0.253 in H2O (63.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.80W
RPM : 4700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
2466 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.3 CFM (0.652m鲁/min)
Static Pressure : 0.253 in H2O (63.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 32.0 dB(A)
Power (Watts) : 1.80W
RPM : 4700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
2406 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 14.5 CFM (0.406m鲁/min)
Static Pressure : 0.104 in H2O (26.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 17.0 dB(A)
Power (Watts) : 720mW
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
4610 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 16.9 CFM (0.473m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB(A)
Power (Watts) : 960mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
624 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06025SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 19.8 CFM (0.554m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.5 dB(A)
Power (Watts) : 1.44W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL, VDE
Weight : 0.123 lb (55.79g)
0
6545 in stock

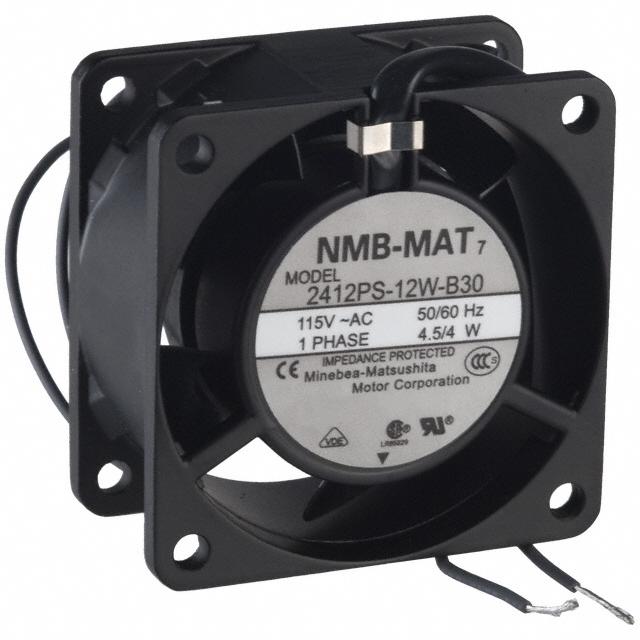

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06030PB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 30.00mm
Air Flow : 9.1 CFM (0.255m鲁/min)
Static Pressure : 0.090 in H2O (22.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB
Power (Watts) : 4.00W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.3 lb (136.08g)
0
2666 in stock

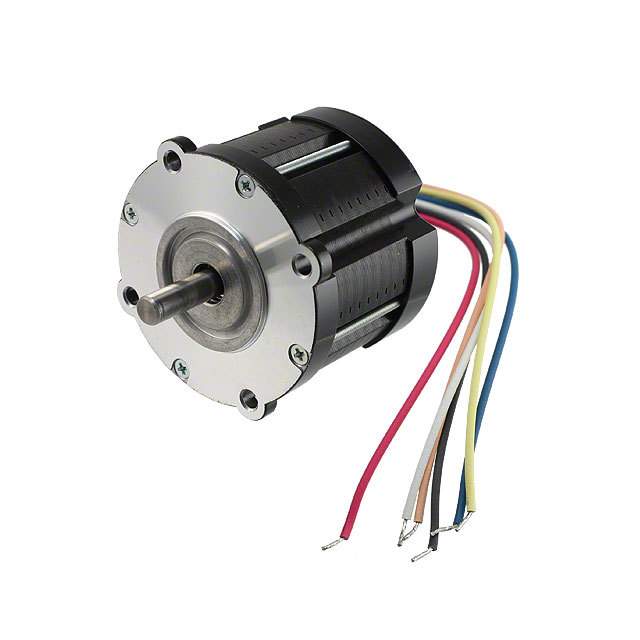

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.55 Ohms
Features : Round Shaft
0
5 in stock

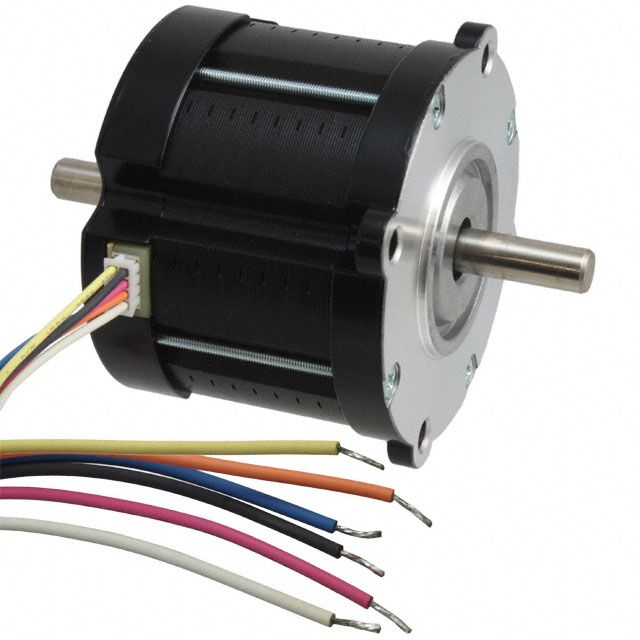

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 29SM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Round - 2.795" Dia (71.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.55 Ohms
Features : Round Shaft
0
100 in stock
