Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD9238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 71.0 CFM (1.99m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 44.5 dB(A)
Power (Watts) : -
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
15 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD9238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 86.9 CFM (2.43m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
9 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD9238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 123.6 CFM (3.46m鲁/min)
Static Pressure : 0.840 in H2O (209.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 5400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
93 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD9238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 123.6 CFM (3.46m鲁/min)
Static Pressure : 0.840 in H2O (209.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 5400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
10 in stock

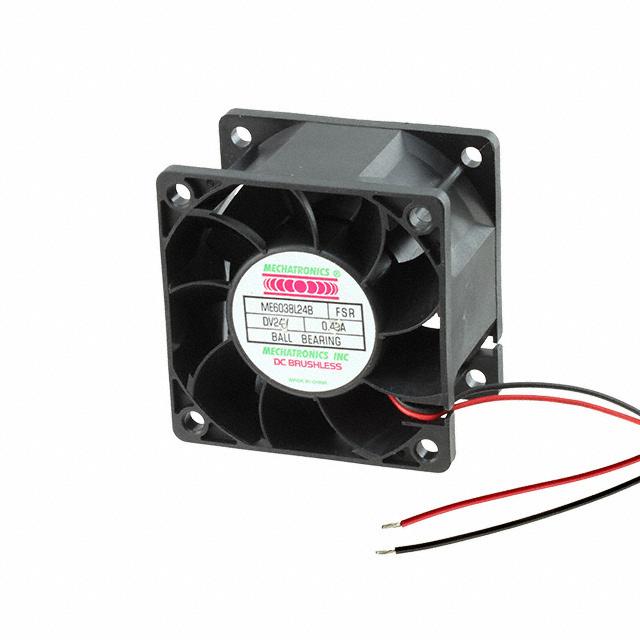

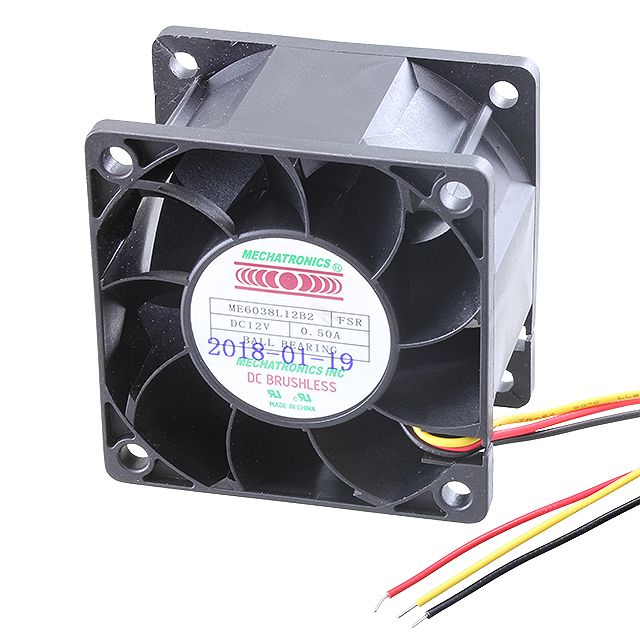

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 35.5 CFM (0.994m鲁/min)
Static Pressure : 0.520 in H2O (129.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 48.5 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
16 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 35.5 CFM (0.994m鲁/min)
Static Pressure : 0.520 in H2O (129.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 48.5 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 35.5 CFM (0.994m鲁/min)
Static Pressure : 0.520 in H2O (129.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.5 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
10 in stock

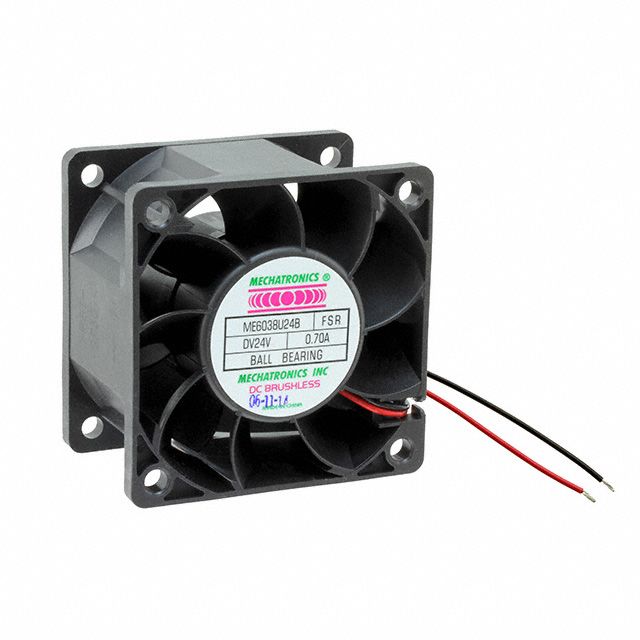

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 41.6 CFM (1.16m鲁/min)
Static Pressure : 0.710 in H2O (176.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.2 dB(A)
Power (Watts) : -
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 61.1 CFM (1.71m鲁/min)
Static Pressure : 1.412 in H2O (351.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB(A)
Power (Watts) : -
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
10 in stock

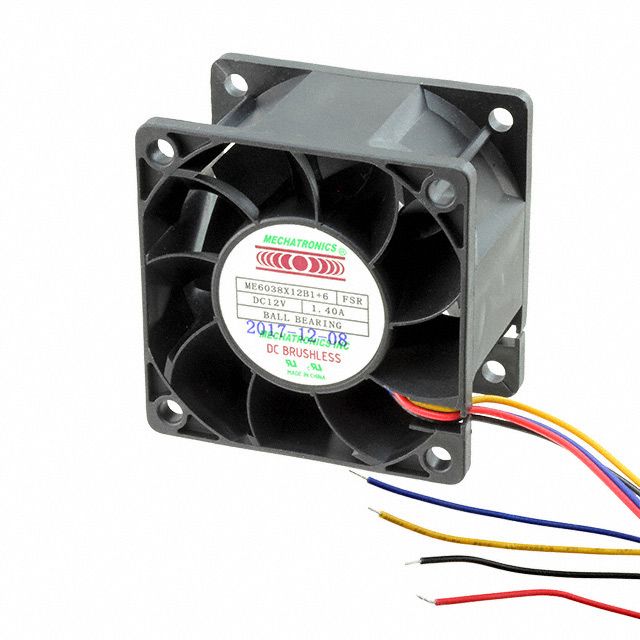

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : ME6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 57.5 CFM (1.61m鲁/min)
Static Pressure : 1.241 in H2O (309.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 9400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.23 lb (104.33g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : -
Part Status : Active
Fan Accessory Type : -
Fits Fan Size : -
For Use With/Related Products : -
Features : -
Material : -
0
30 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : -
Part Status : Active
Fan Accessory Type : -
Fits Fan Size : -
For Use With/Related Products : -
Features : -
Material : -
0
40 in stock
