Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

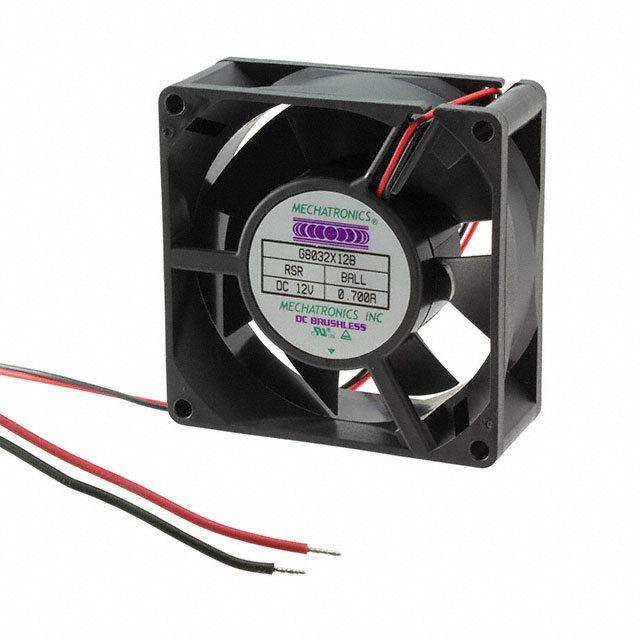

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : -
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.286 lb (129.73g)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : -
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.286 lb (129.73g)
0
34 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.286 lb (129.73g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.286 lb (129.73g)
0
149 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.286 lb (129.73g)
0
10 in stock

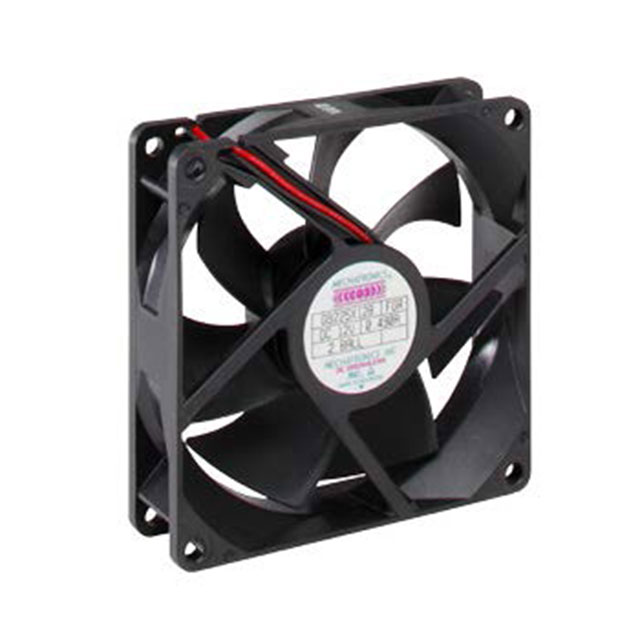

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 58.0 CFM (1.62m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
40 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 58.0 CFM (1.62m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 58.0 CFM (1.62m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control
Noise : 36.0 dB(A)
Power (Watts) : -
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
24 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 23.0 dB(A)
Power (Watts) : -
RPM : 1600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
21 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 66.0 CFM (1.85m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 42.0 dB(A)
Power (Watts) : -
RPM : 3600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
40 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G9225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 66.0 CFM (1.85m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : -
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.218 lb (98.88g)
0
20 in stock
