Category

Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.

Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of CXM-9-27-90-36-AC00-F2-3

CXM-9-27-90-36-AC00-F2-3 CXM-9-27-90-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 720 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

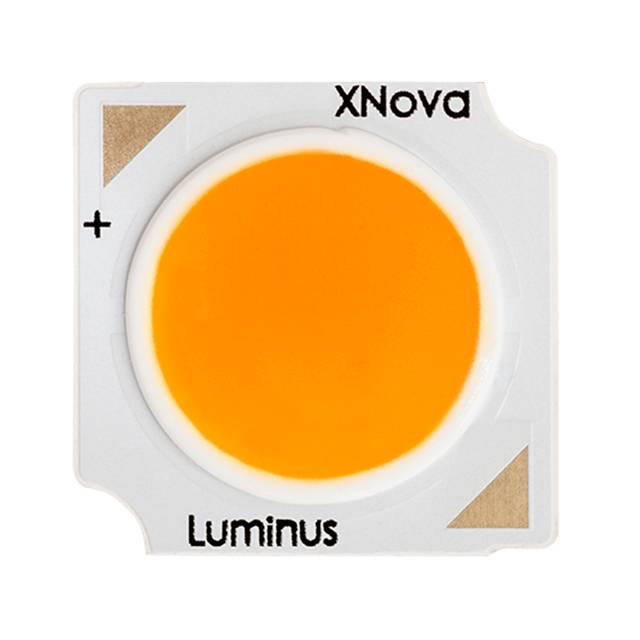

Picture of CXM-9-27-90-36-AC30-F4-3

CXM-9-27-90-36-AC30-F4-3 CXM-9-27-90-36-AC30-F4-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1390 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
1059 in stock
Picture of CXM-9-27-95-36-AA00-F1-3

CXM-9-27-95-36-AA00-F1-3 CXM-9-27-95-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 630 lm (615 lm ~ 645 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 15.00mm L x 15.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-27-95-36-AC00-F2-3

CXM-9-27-95-36-AC00-F2-3 CXM-9-27-95-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 680 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-80-18-AC00-F2-3

CXM-9-30-80-18-AC00-F2-3 CXM-9-30-80-18-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 980 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 1.06A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-80-36-AA00-F1-3

CXM-9-30-80-36-AA00-F1-3 CXM-9-30-80-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 908 lm (885 lm ~ 930 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 15.00mm L x 15.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-80-36-AC00-F2-3

CXM-9-30-80-36-AC00-F2-3 CXM-9-30-80-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 980 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-80-36-AC02-F2-3

CXM-9-30-80-36-AC02-F2-3 CXM-9-30-80-36-AC02-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 930 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-80-36-AC30-F4-3

CXM-9-30-80-36-AC30-F4-3 CXM-9-30-80-36-AC30-F4-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1780 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 146 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
25 in stock
Picture of CXM-9-30-90-18-AC00-F2-3

CXM-9-30-90-18-AC00-F2-3 CXM-9-30-90-18-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : *
Part Status : Not For New Designs
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Picture of CXM-9-30-90-36-AA00-F1-3

CXM-9-30-90-36-AA00-F1-3 CXM-9-30-90-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 770 lm (750 lm ~ 790 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 15.00mm L x 15.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-30-90-36-AC00-F2-3

CXM-9-30-90-36-AC00-F2-3 CXM-9-30-90-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 830 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
