Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.

Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of CXM-7-27-90-36-AA00-F1-3

CXM-7-27-90-36-AA00-F1-3 CXM-7-27-90-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 440 lm (435 lm ~ 455 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock

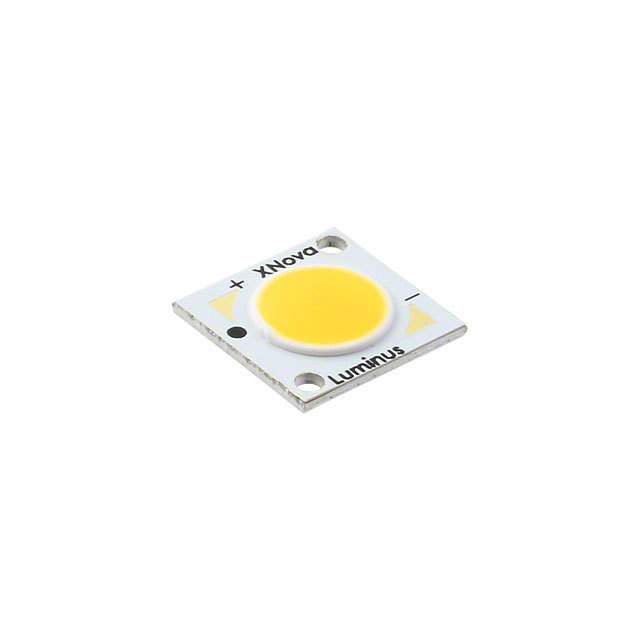

Picture of CXM-7-27-95-36-AA00-F1-3

CXM-7-27-95-36-AA00-F1-3 CXM-7-27-95-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 415 lm (405 lm ~ 425 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-30-80-36-AA00-F1-3

CXM-7-30-80-36-AA00-F1-3 CXM-7-30-80-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 600 lm (585 lm ~ 615 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-30-90-36-AA00-F1-3

CXM-7-30-90-36-AA00-F1-3 CXM-7-30-90-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 508 lm (495 lm ~ 520 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 91 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-30-95-36-AA00-F1-3

CXM-7-30-95-36-AA00-F1-3 CXM-7-30-95-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 483 lm (470 lm ~ 495 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 86 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-35-80-36-AA00-F1-3

CXM-7-35-80-36-AA00-F1-3 CXM-7-35-80-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 630 lm (615 lm ~ 645 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-40-80-36-AA00-F1-3

CXM-7-40-80-36-AA00-F1-3 CXM-7-40-80-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 648 lm (630 lm ~ 665 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-7-50-80-36-AA00-F1-5

CXM-7-50-80-36-AA00-F1-5 CXM-7-50-80-36-AA00-F1-5

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-7
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 658 lm (640 lm ~ 675 lm)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 10.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 7.50mm Diameter
Lens Type : Flat
0
100 in stock

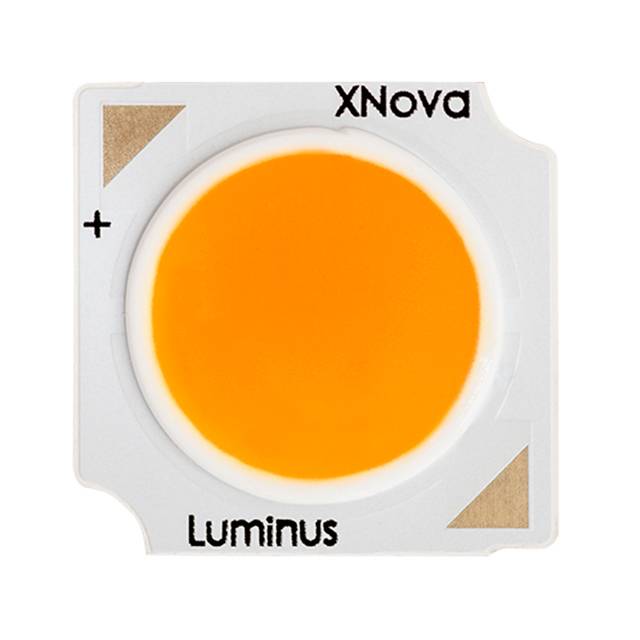

Picture of CXM-9-27-80-18-AC00-F2-3

CXM-9-27-80-18-AC00-F2-3 CXM-9-27-80-18-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 920 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 110 lm/W
Current - Max : 1.06A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-27-80-36-AA00-F1-3

CXM-9-27-80-36-AA00-F1-3 CXM-9-27-80-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 853 lm (830 lm ~ 875 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 15.00mm L x 15.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-27-80-36-AC00-F2-3

CXM-9-27-80-36-AC00-F2-3 CXM-9-27-80-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 920 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CXM-9-27-90-36-AA00-F1-3

CXM-9-27-90-36-AA00-F1-3 CXM-9-27-90-36-AA00-F1-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-9
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 668 lm (650 lm ~ 685 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 530mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 15.00mm L x 15.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
