Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CXM-32-65-80-54-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18740 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-80-18-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 410 lm (400 lm ~ 420 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 480mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

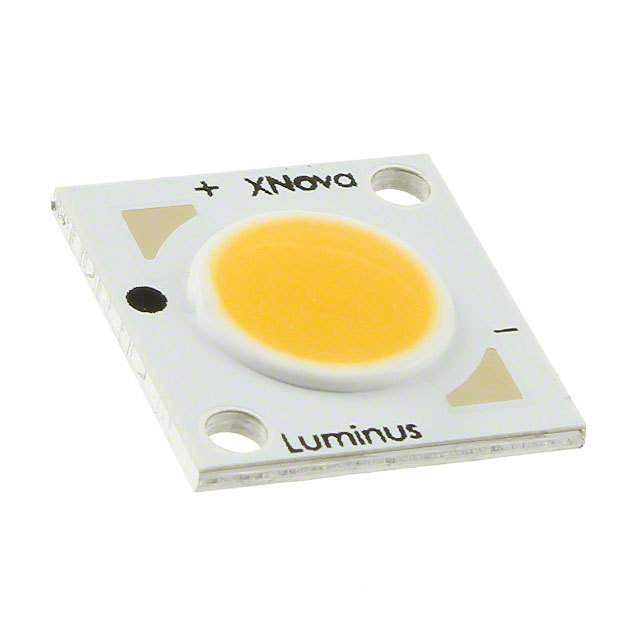

CXM-6-27-80-18-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 430 lm (420 lm ~ 440 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 480mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-80-36-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 410 lm (400 lm ~ 420 lm)
Current - Test : 120mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 240mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 8.90mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 120mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 240mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 8.90mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

322 in stock

CXM-6-27-80-9-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 410 lm (400 lm ~ 420 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.8V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 960mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-80-9-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 430 lm (420 lm ~ 440 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.8V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 960mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-90-18-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 318 lm (310 lm ~ 325 lm)
Current - Test : 120mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 240mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-90-18-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 333 lm (325 lm ~ 340 lm)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 480mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-90-36-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 318 lm (310 lm ~ 325 lm)
Current - Test : 120mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 240mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 8.90mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-90-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 120mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 240mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 8.90mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CXM-6-27-90-9-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 318 lm (310 lm ~ 325 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.8V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 960mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock
