Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CXM-32-40-70-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18920 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 137 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

11 in stock

CXM-32-40-80-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18370 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 133 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

26 in stock

CXM-32-40-80-54-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18045 lm (Typ)
Current - Test : 2.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51V
Lumens/Watt @ Current - Test : 161 lm/W
Current - Max : 4.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

45 in stock

CXM-32-40-90-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 15830 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-32-50-70-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 19385 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-32-50-70-54-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 19385 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

100 in stock

CXM-32-50-80-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18820 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-32-50-80-54-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18820 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

208 in stock

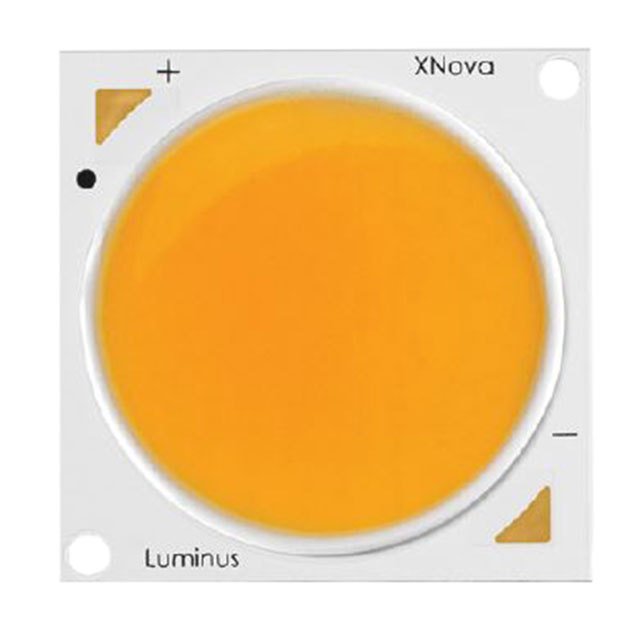

CXM-32-50-80-54-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18170 lm (Typ)
Current - Test : 2.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 4.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

16 in stock

CXM-32-65-70-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 19305 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-32-65-70-54-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 19305 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock

CXM-32-65-80-54-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-32
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 18740 lm (Typ)
Current - Test : 2.64A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52.5V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 3.96A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 38.00mm L x 38.00mm W
Height : -
Light Emitting Surface (LES) : 32.80mm Diameter
Lens Type : Flat

100 in stock
