Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CDM-6-4027-90-18-DW01

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 525 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.8V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 6.80mm Diameter
Lens Type : Flat

367 in stock

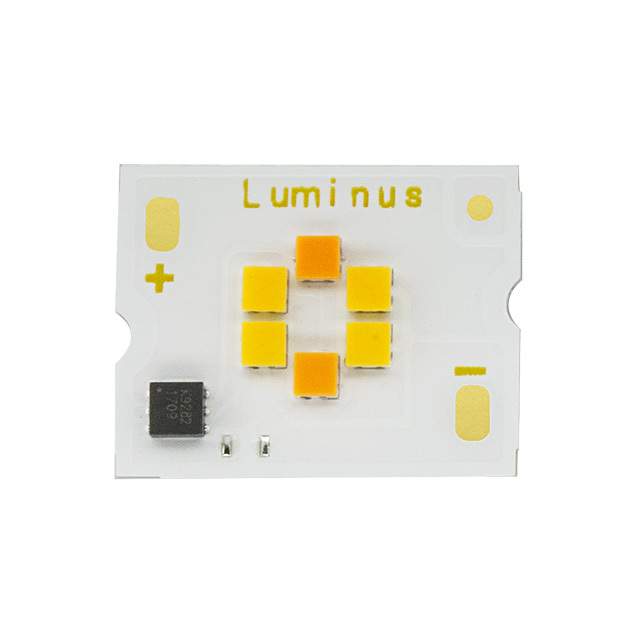

CDM-6-4027-90-18-DW02

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 495 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.8V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 6.80mm Diameter
Lens Type : Flat

400 in stock

CDM-9-3018-90-36-DW01

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 925 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 9.50mm Diameter
Lens Type : Flat

396 in stock

CDM-9-3018-90-36-DW02

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 870 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 9.50mm Diameter
Lens Type : Flat

378 in stock

CDM-9-4027-90-36-DW01

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1040 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 9.50mm Diameter
Lens Type : Flat

400 in stock

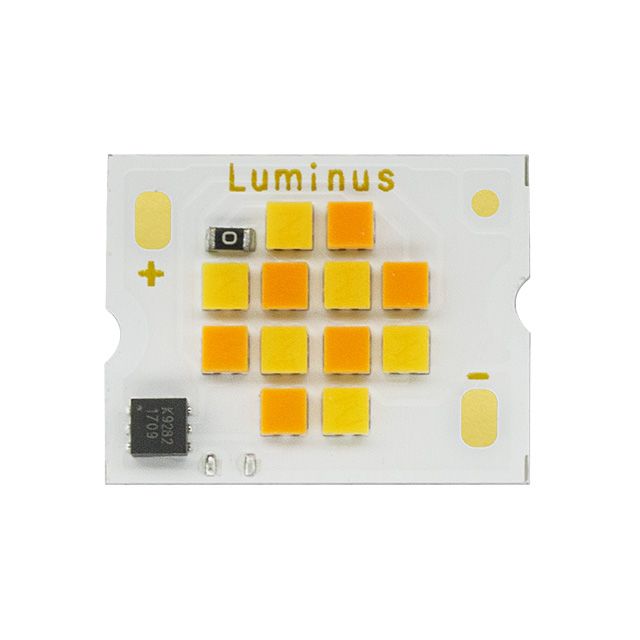

CDM-9-4027-90-36-DW02

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 990 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 9.50mm Diameter
Lens Type : Flat

396 in stock

CHM-11-27-80-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-11
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3305 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

100 in stock

CHM-11-27-90-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-11
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2575 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

956 in stock

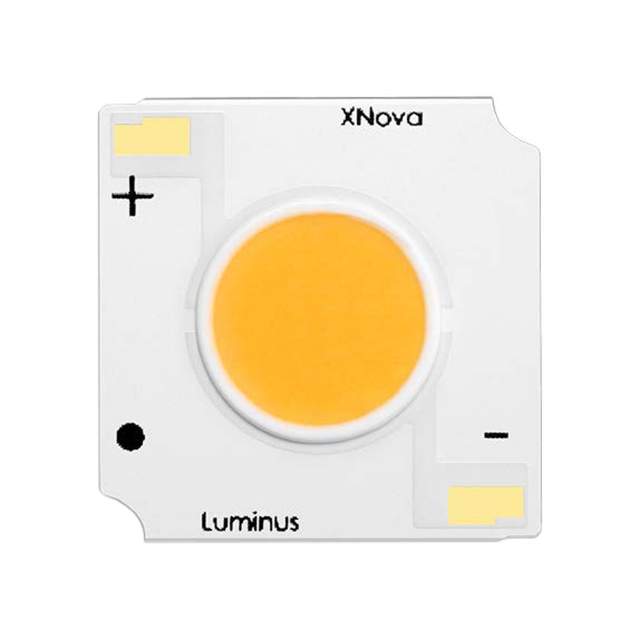

CHM-11-27-95-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-11
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2420 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 70 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

100 in stock

CHM-11-30-80-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-11
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3485 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

100 in stock

CHM-11-30-80-36-XH02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3310 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

100 in stock

CHM-11-30-90-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-11
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2815 lm (Typ)
Current - Test : 960mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat

342 in stock
