Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

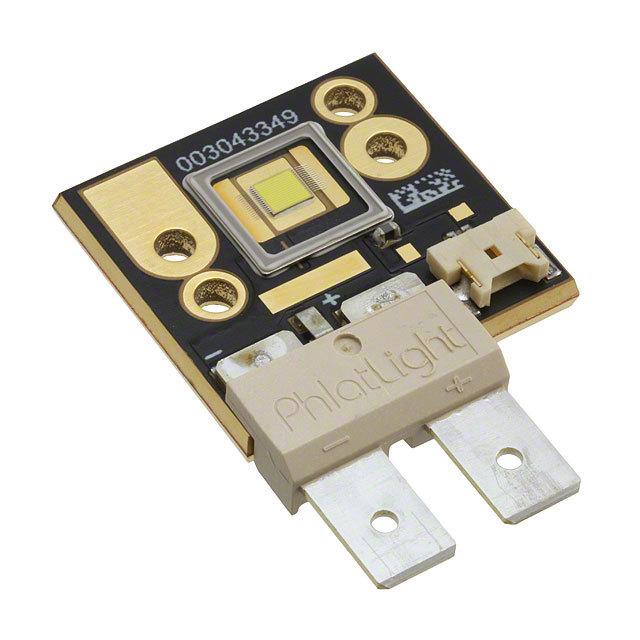

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 9A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
105 in stock

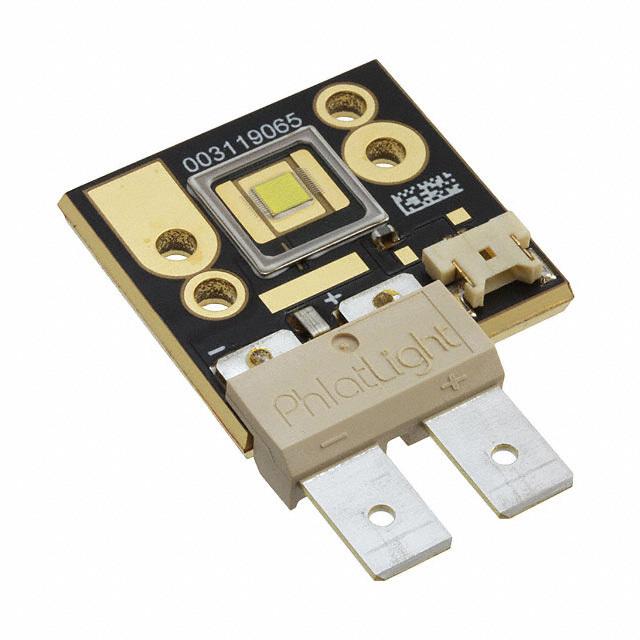

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 9A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock

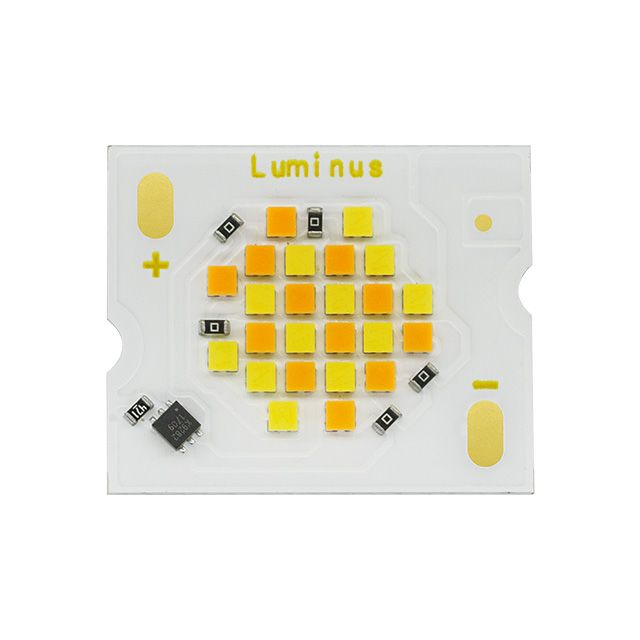

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1850 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 800mA
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 15.50mm Diameter
Lens Type : Flat
0
147 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1745 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 800mA
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 15.50mm Diameter
Lens Type : Flat
0
149 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2085 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 800mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 15.50mm Diameter
Lens Type : Flat
0
147 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1980 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 800mA
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 15.50mm Diameter
Lens Type : Flat
0
150 in stock

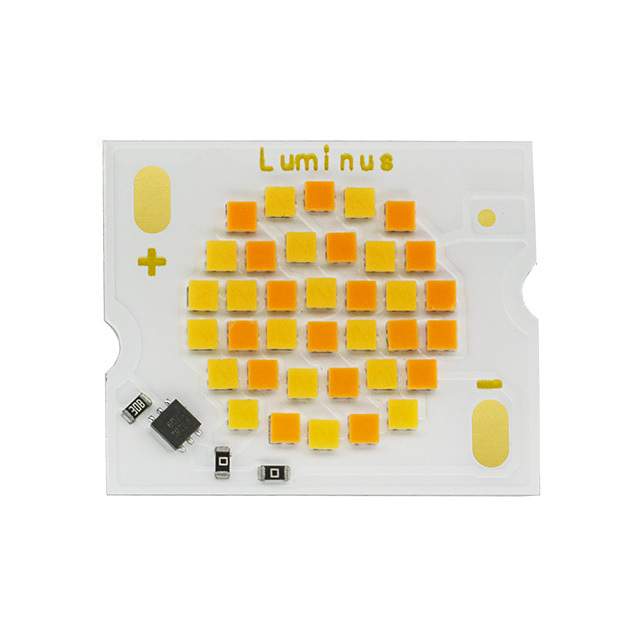

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-18
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2875 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 16.80mm Diameter
Lens Type : Flat
0
140 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-18
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2700 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 97
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 16.80mm Diameter
Lens Type : Flat
0
140 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-18
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3190 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 16.80mm Diameter
Lens Type : Flat
0
150 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-18
Part Status : Active
Type : LED Module
Color : White, Warm / White, Neutral
CCT (K) : 2700K ~ 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3025 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 95 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 92
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 16.80mm Diameter
Lens Type : Flat
0
150 in stock

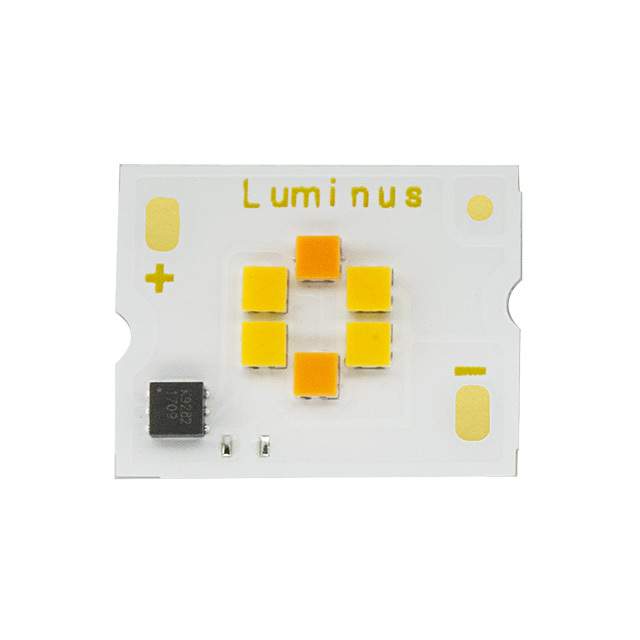

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 490 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.8V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 90
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 6.80mm Diameter
Lens Type : Flat
0
399 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CDM-14
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 1800K ~ 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 438 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.8V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 440mA
CRI (Color Rendering Index) : 90
Viewing Angle : 130°
Features : Dimming - Warm
Size / Dimension : 15.00mm L x 12.00mm W
Height : 1.58mm
Light Emitting Surface (LES) : 6.80mm Diameter
Lens Type : Flat
0
785 in stock
