Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

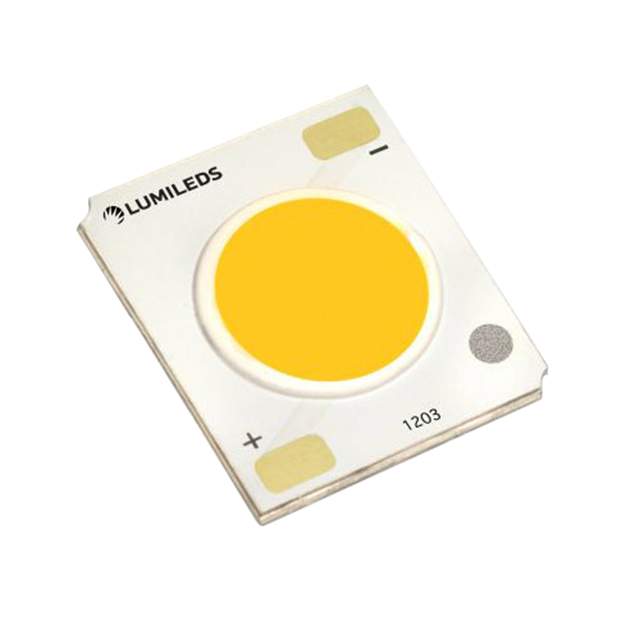

LHC1-5770-1203 LHC1-5770-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1375 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

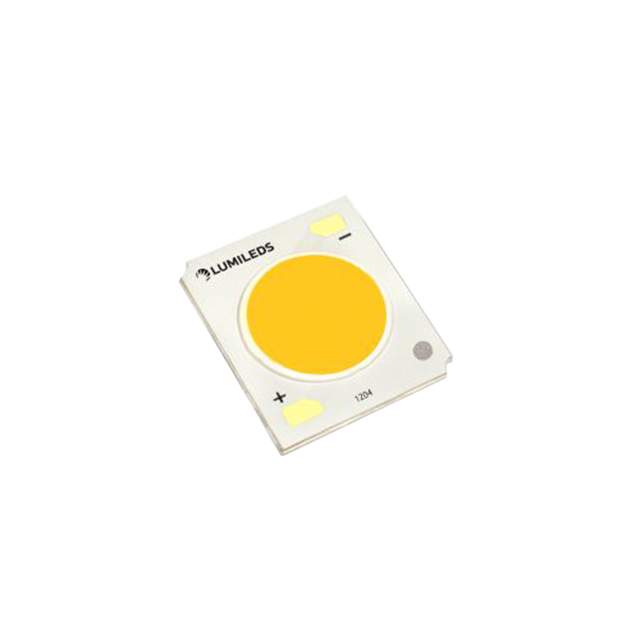

LHC1-5770-1204 LHC1-5770-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2050 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

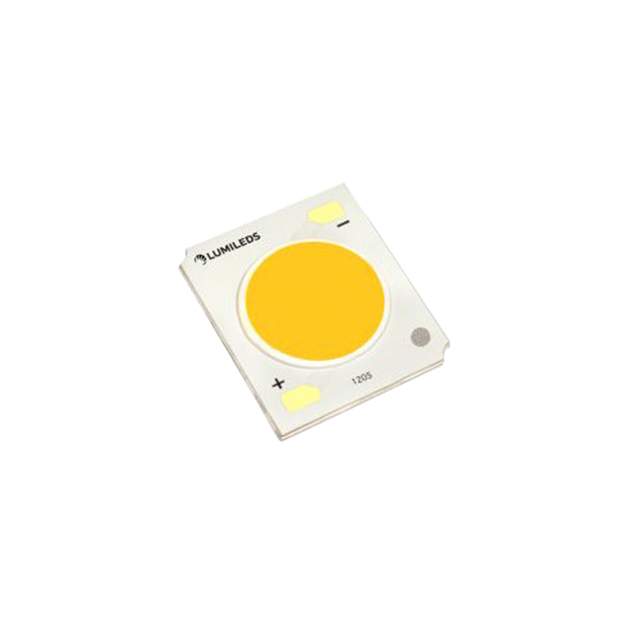

LHC1-5770-1205 LHC1-5770-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2750 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

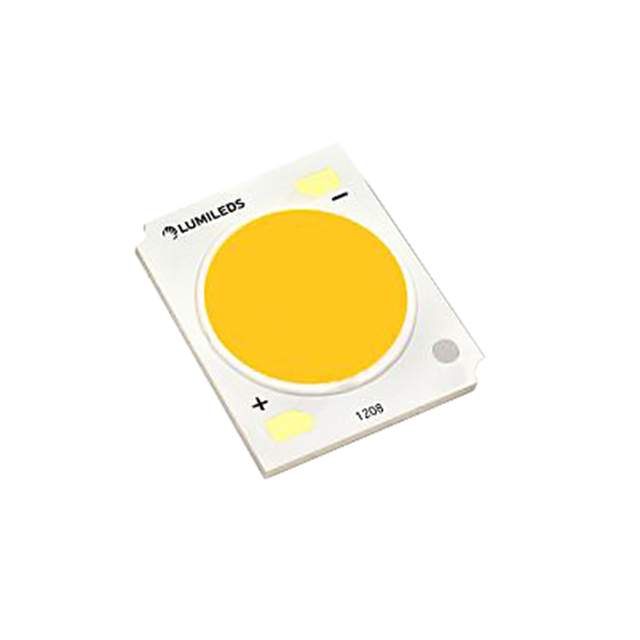

LHC1-5770-1208 LHC1-5770-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4100 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
100 in stock

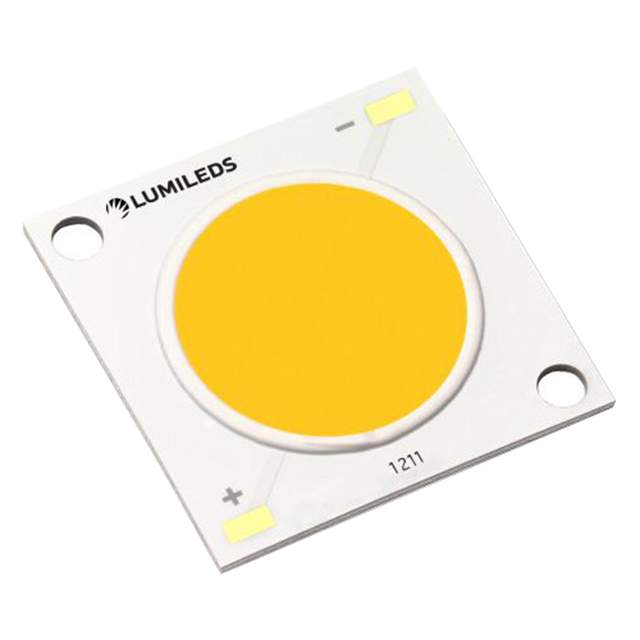

LHC1-5770-1211 LHC1-5770-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5600 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
32 in stock

LHUV-0380-0150 LHUV-0380-0150

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 175mW/sr @ 500mA
Wavelength : 380nm ~ 385nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

LHUV-0380-0200 LHUV-0380-0200

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 225mW/sr @ 500mA
Wavelength : 380nm ~ 385nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

LHUV-0380-0300 LHUV-0380-0300

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 325mW/sr @ 500mA
Wavelength : 380nm ~ 385nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

LHUV-0380-0400 LHUV-0380-0400

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON Z UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 385nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

LHUV-0380-0500 LHUV-0380-0500

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON Z UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 385nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

LHUV-0385-0200 LHUV-0385-0200

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 225mW/sr @ 500mA
Wavelength : 385nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.1V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock

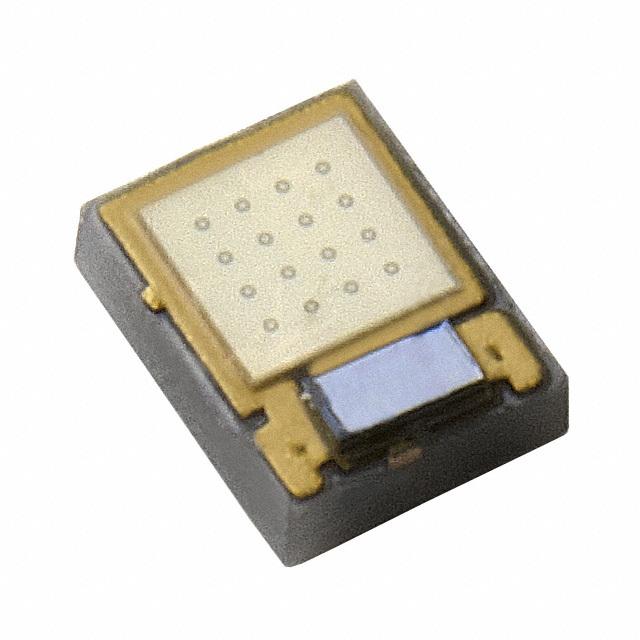

LHUV-0385-0250 LHUV-0385-0250

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON UV
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 275mW/sr @ 500mA
Wavelength : 385nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.1V
Viewing Angle : 125°
Orientation : Top View
Operating Temperature : -40°C ~ 135°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
100 in stock
