Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

LHC1-4070-1211 LHC1-4070-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5600 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
49 in stock

LHC1-4080-1202 LHC1-4080-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K (Typ) 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 850 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
34 in stock

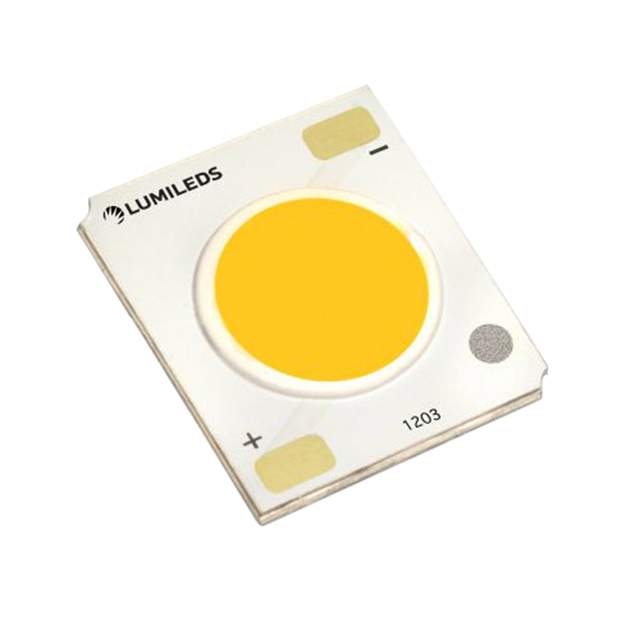

LHC1-4080-1203 LHC1-4080-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1300 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-4080-1204 LHC1-4080-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1950 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

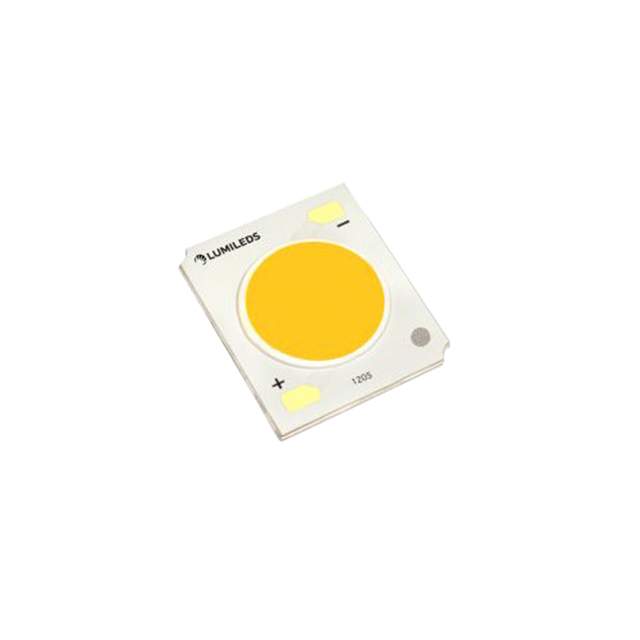

LHC1-4080-1205 LHC1-4080-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2600 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

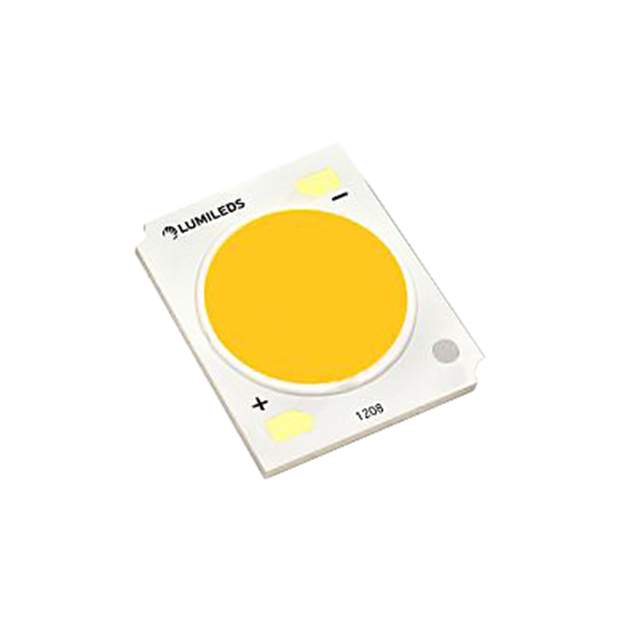

LHC1-4080-1208 LHC1-4080-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3900 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

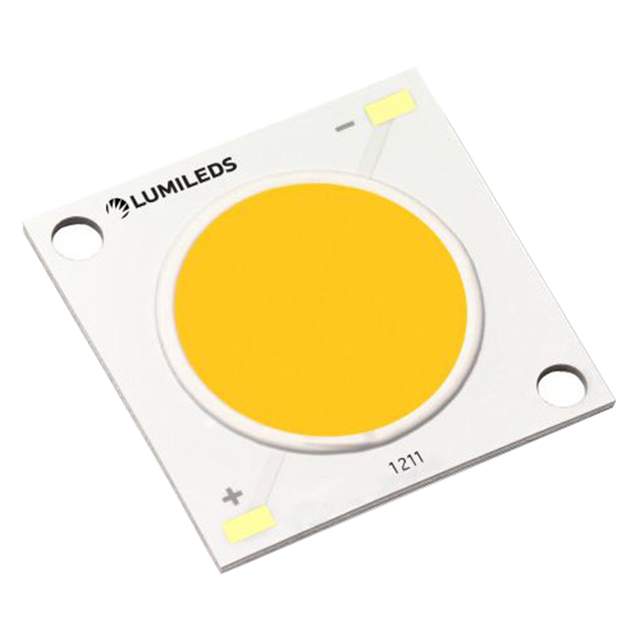

LHC1-4080-1211 LHC1-4080-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5200 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
48 in stock

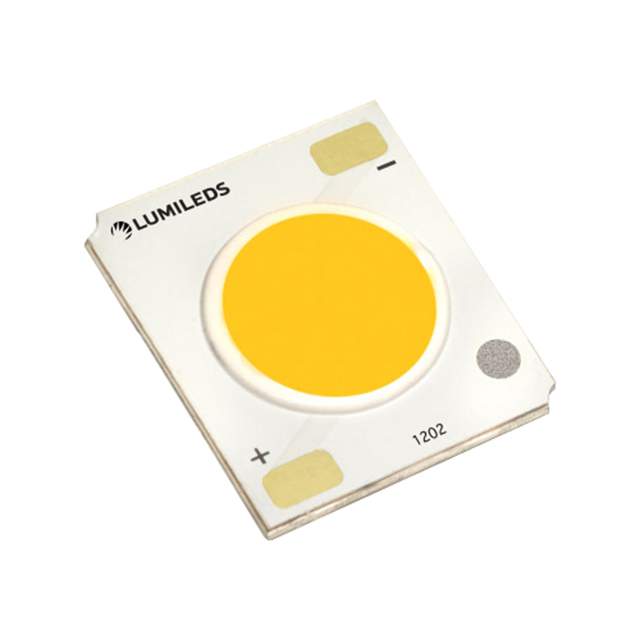

LHC1-4090-1202 LHC1-4090-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White
CCT (K) : 4000K (Typ) 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 725 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
95 in stock

LHC1-4090-1203 LHC1-4090-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1100 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 90
Viewing Angle : 100°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

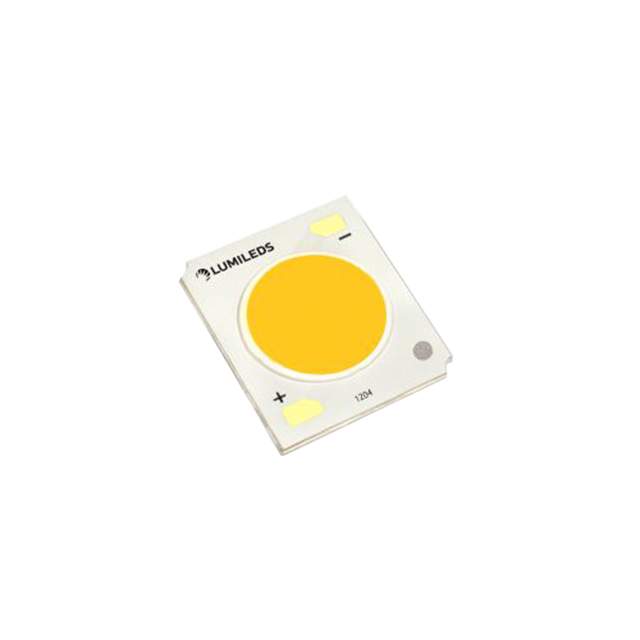

LHC1-4090-1204 LHC1-4090-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1600 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-4090-1205 LHC1-4090-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2150 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-4090-1208 LHC1-4090-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3200 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 100°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
100 in stock
