- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

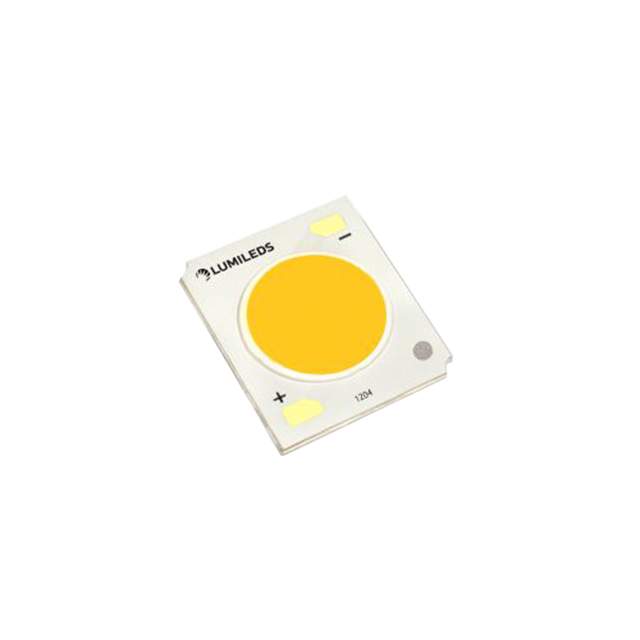

LHC1-2290-1204 LHC1-2290-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1250 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 78 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-2290-1205 LHC1-2290-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1600 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

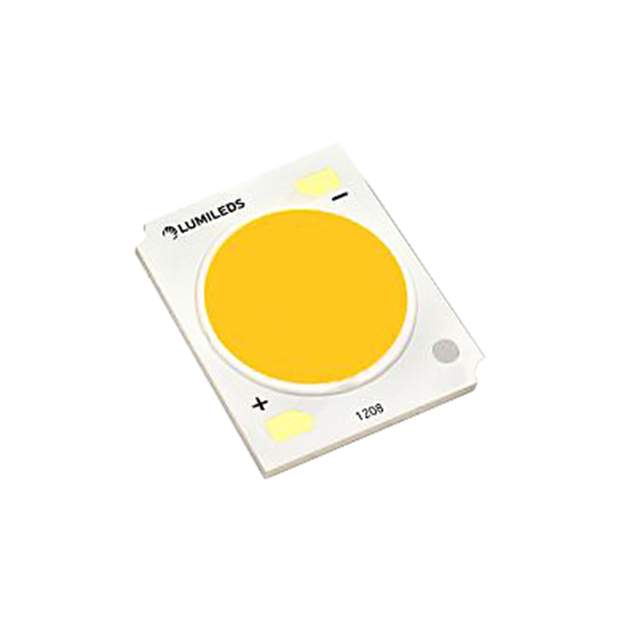

LHC1-2290-1208 LHC1-2290-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2125 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
20 in stock

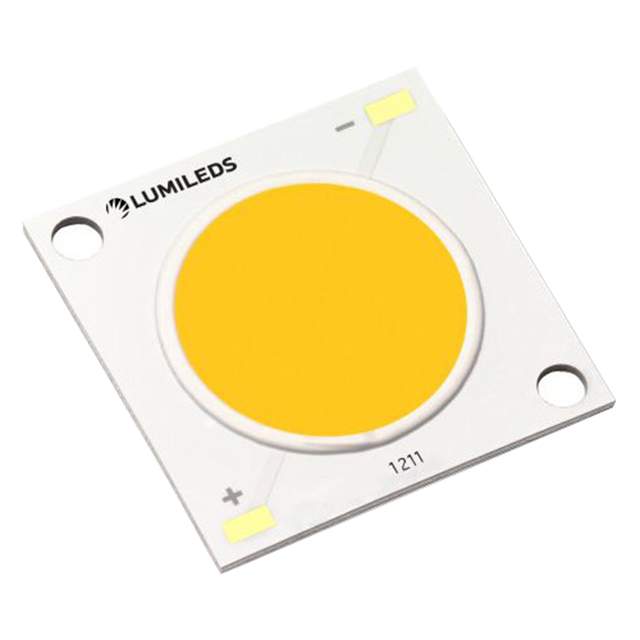

LHC1-2290-1211 LHC1-2290-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3425 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
100 in stock

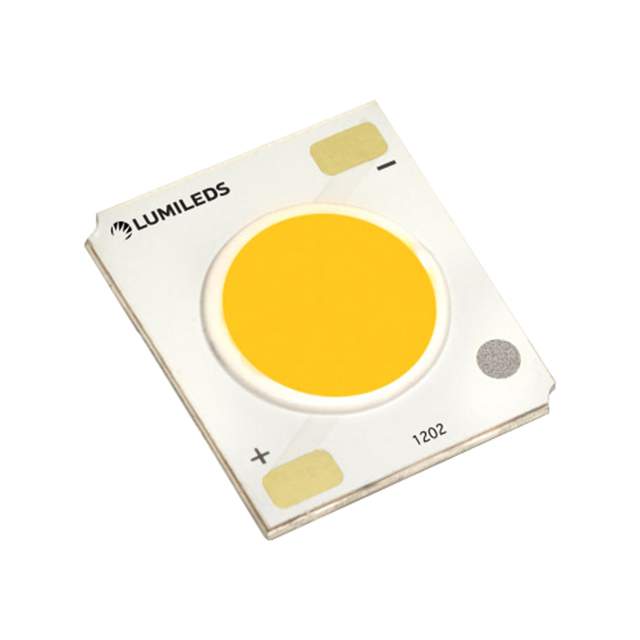

LHC1-2780-1202 LHC1-2780-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White
CCT (K) : 2700K (3-Step SDCM MacAdam Ellipse)
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 750 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

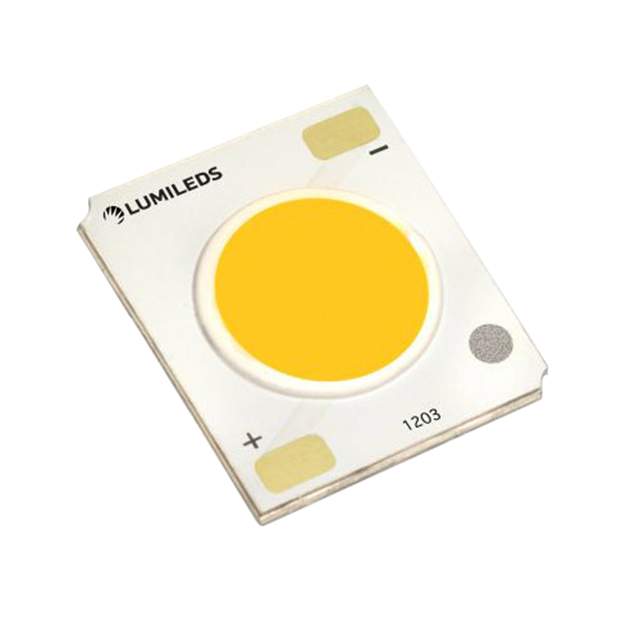

LHC1-2780-1203 LHC1-2780-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1125 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-2780-1204 LHC1-2780-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1700 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

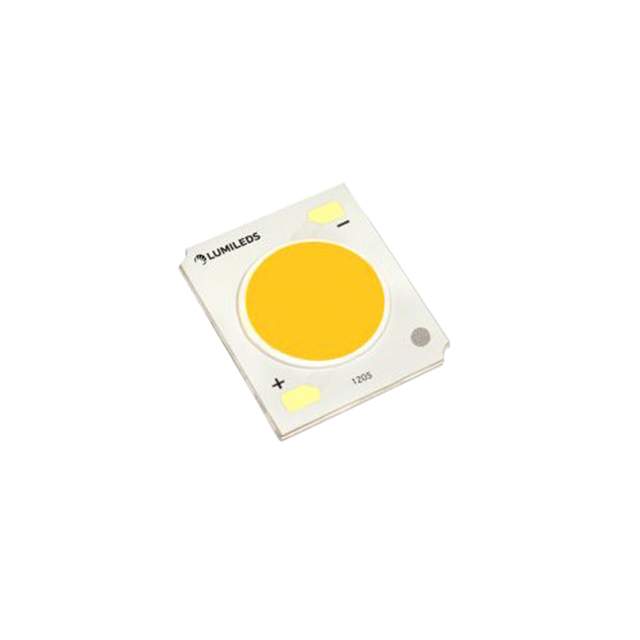

LHC1-2780-1205 LHC1-2780-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2250 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-2780-1208 LHC1-2780-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3400 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 125°
Features : -
Size / Dimension : 24.00mm L x 20.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-2780-1211 LHC1-2780-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4600 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
100 in stock

LHC1-2790-1202 LHC1-2790-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K (Typ) 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
78 in stock

LHC1-2790-1203 LHC1-2790-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 950 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 90
Viewing Angle : 100°
Features : -
Size / Dimension : 19.00mm L x 16.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
