Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

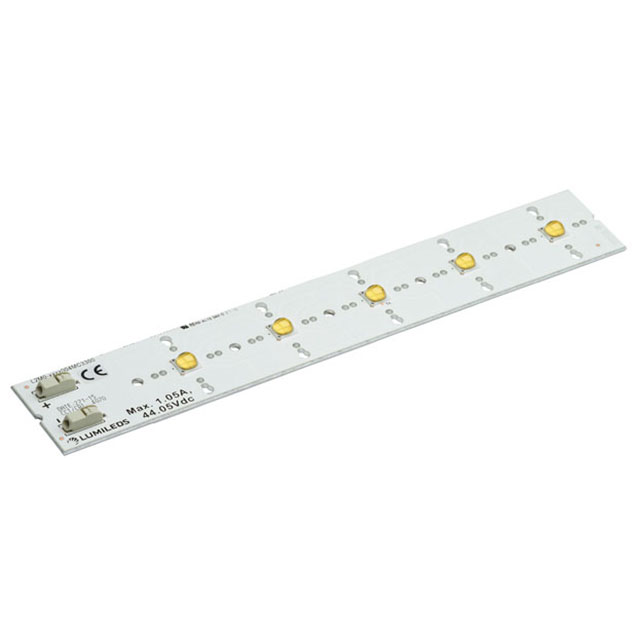

L2M0-5770005MC3300 L2M0-5770005MC3300

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-M
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 5397 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 54.8V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 198.00mm L x 33.00mm W
Height : 6.21mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
12 in stock

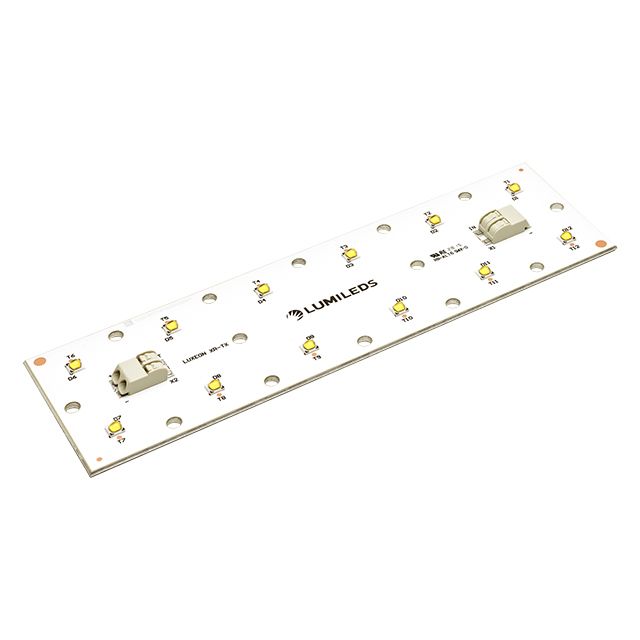

L2T0-4070012M00000 L2T0-4070012M00000

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-TX
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3221 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.25V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 146.60mm L x 45.00mm W
Height : 6.21mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
23 in stock

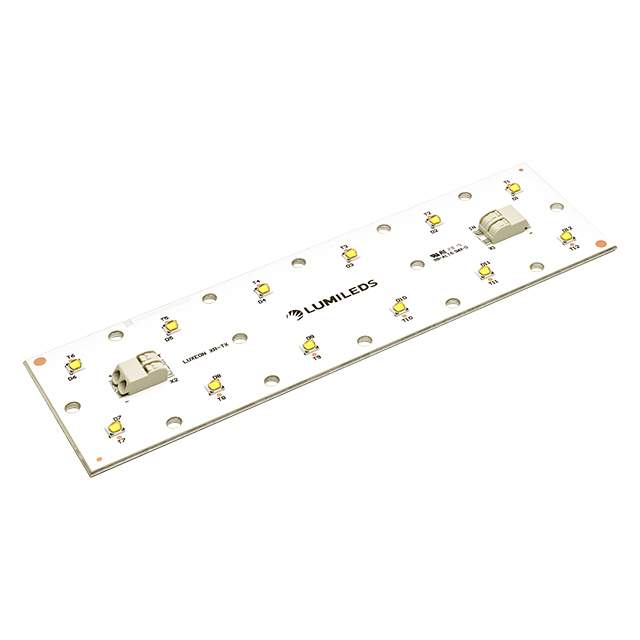

L2T0-5070012M00000 L2T0-5070012M00000

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-TX
Part Status : Discontinued at
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3260 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.25V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 146.60mm L x 45.00mm W
Height : 6.21mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

L2T0-5770012M00000 L2T0-5770012M00000

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-TX
Part Status : Discontinued at
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3257 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.25V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 146.60mm L x 45.00mm W
Height : 6.21mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LHC1-2280-1202 LHC1-2280-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 650 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

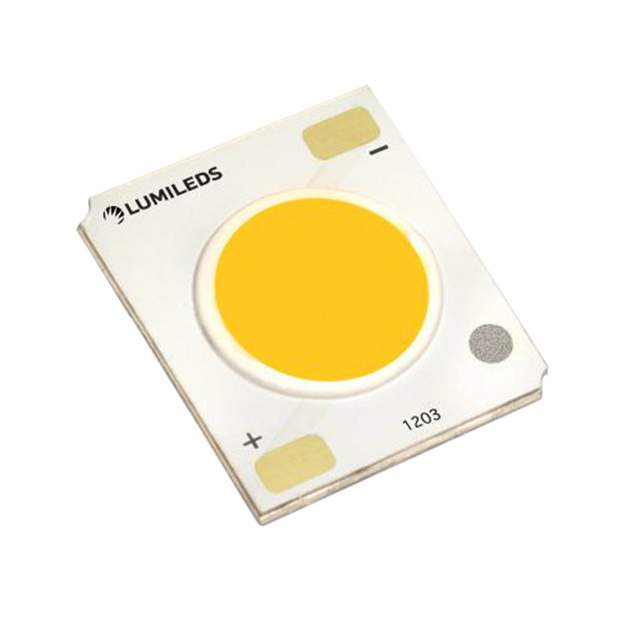

LHC1-2280-1203 LHC1-2280-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 950 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 89 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

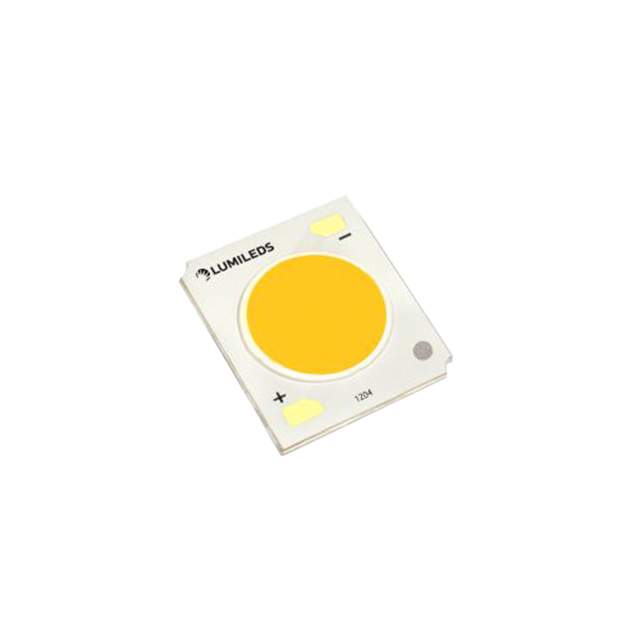

LHC1-2280-1204 LHC1-2280-1204

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1475 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

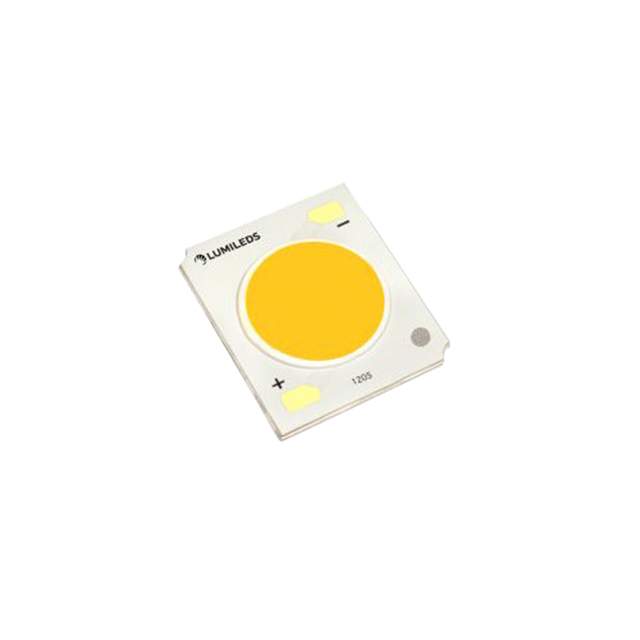

LHC1-2280-1205 LHC1-2280-1205

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1950 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

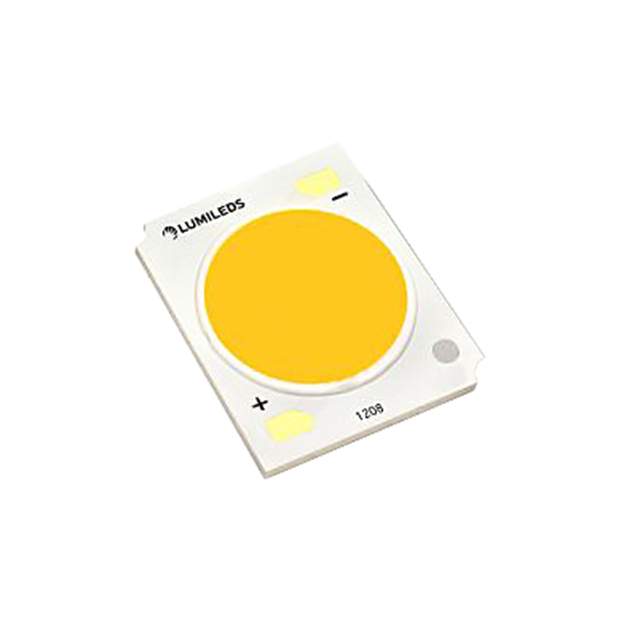

LHC1-2280-1208 LHC1-2280-1208

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2925 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
59 in stock

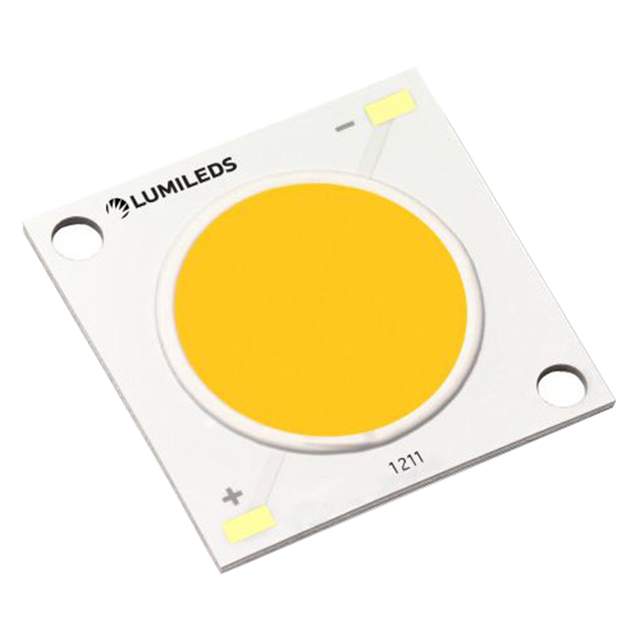

LHC1-2280-1211 LHC1-2280-1211

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3975 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
47 in stock

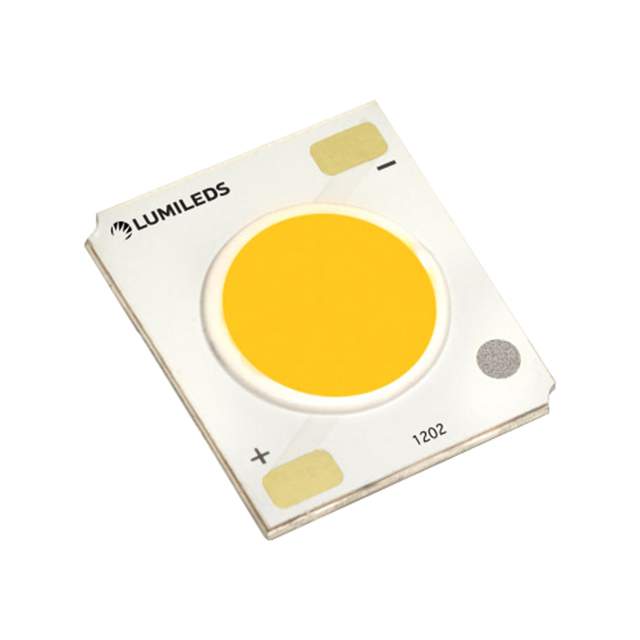

LHC1-2290-1202 LHC1-2290-1202

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 550 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
68 in stock

LHC1-2290-1203 LHC1-2290-1203

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 825 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
