Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

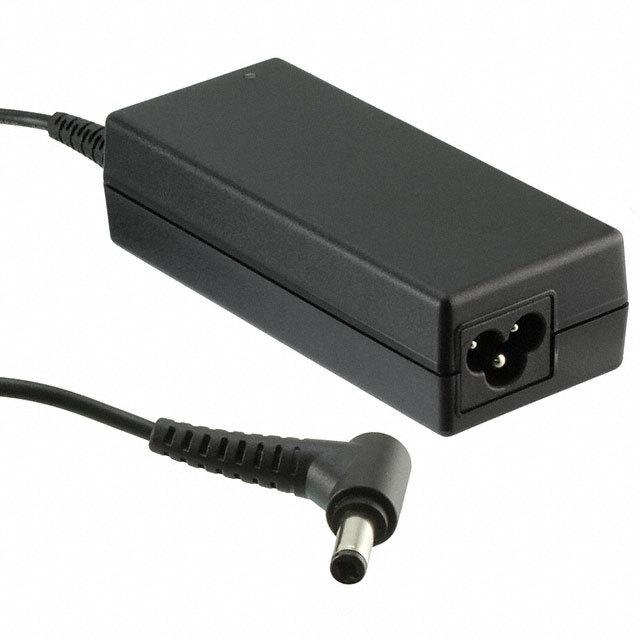

ADP-65JH HBAN ADP-65JH HBAN

Delta Electronics
Manufacturer : Delta Electronics
Series : ADP
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 3.42A
Power (Watts) : 65W
No Load Power Consumption : 210mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.25" L x 1.81" W x 1.16" H (108.0mm x 46.0mm x 29.5mm)
Approvals : CB, CE, cULus
0
1710 in stock

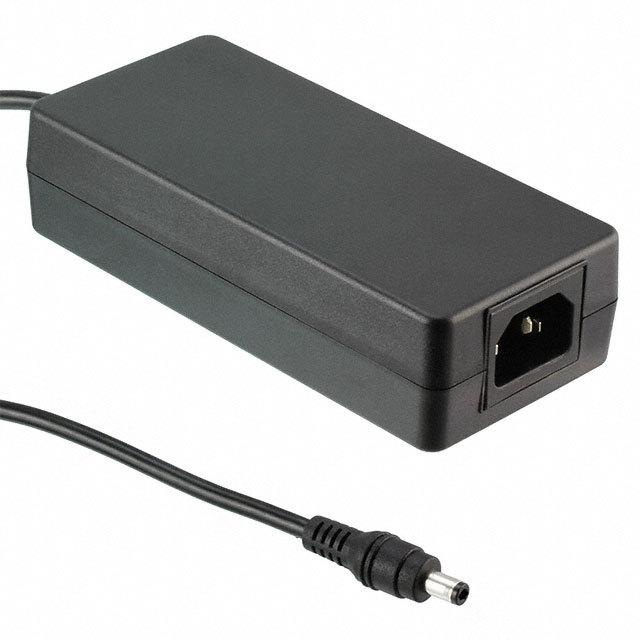

ADP-66CR BE ADP-66CR BE

Delta Electronics
Manufacturer : Delta Electronics
Series : ADP
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 5.5A
Power (Watts) : 66W
No Load Power Consumption : 210mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : -20°C ~ 45°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.31" L x 2.44" W x 1.34" H (135.0mm x 62.0mm x 34.1mm)
Approvals : -
0
617 in stock

ADP-90MD HDM ADP-90MD HDM

Delta Electronics
Manufacturer : Delta Electronics
Series : ADP
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 4.74A
Power (Watts) : 90W
No Load Power Consumption : 210mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 1.7mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 5.00" L x 2.01" W x 1.20" H (127.0mm x 51.0mm x 30.5mm)
Approvals : CB, CE, cULus
0
858 in stock

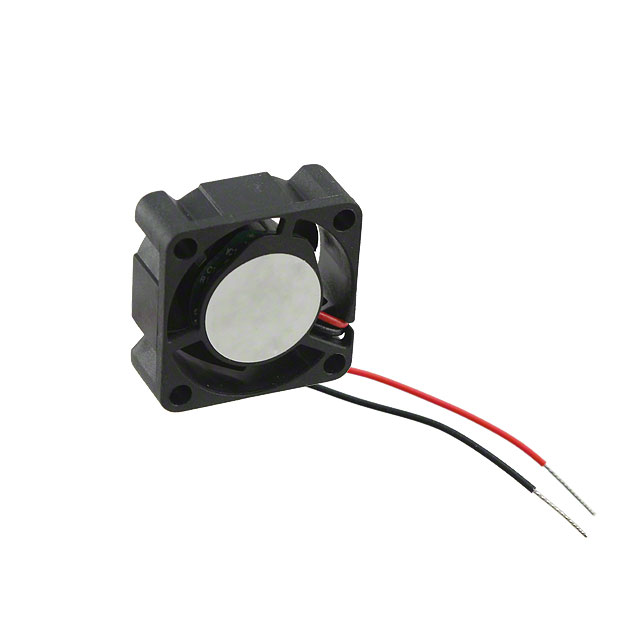

AFB02512HA-A AFB02512HA-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 1.8 CFM (0.050m鲁/min)
Static Pressure : 0.176 in H2O (43.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 23.5 dB(A)
Power (Watts) : 720mW
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.023 lb (10.43g)
0
643 in stock

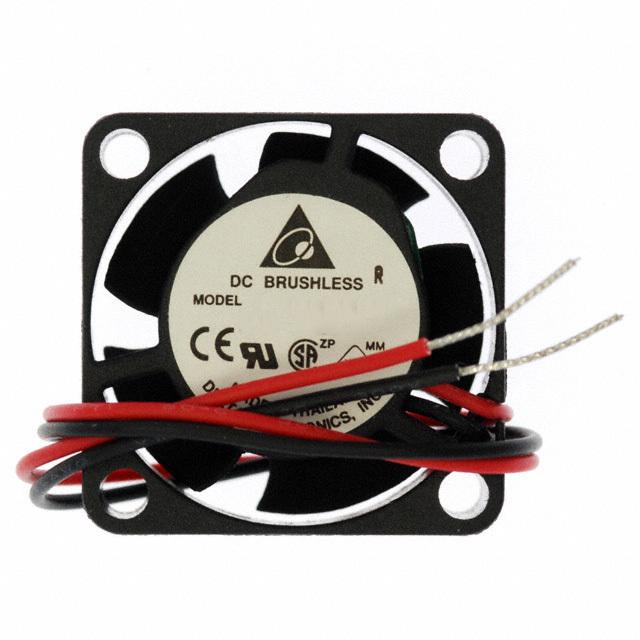

AFB02512HHA-A AFB02512HHA-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.4 CFM (0.067m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 960mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.023 lb (10.43g)
0
5373 in stock

AFB02512HHA-AF00 AFB02512HHA-AF00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.4 CFM (0.067m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 960mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.023 lb (10.43g)
0
504 in stock

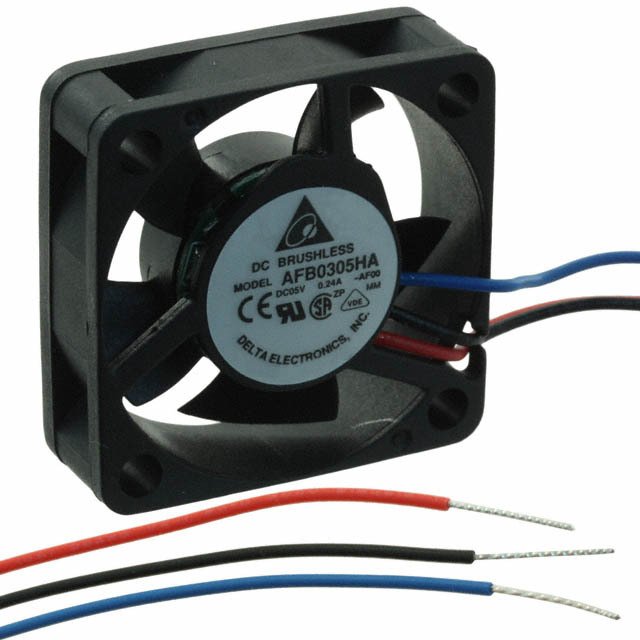

AFB0305HA-AF00 AFB0305HA-AF00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB(A)
Power (Watts) : 800mW
RPM : 9000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.023 lb (10.43g)
0
647 in stock

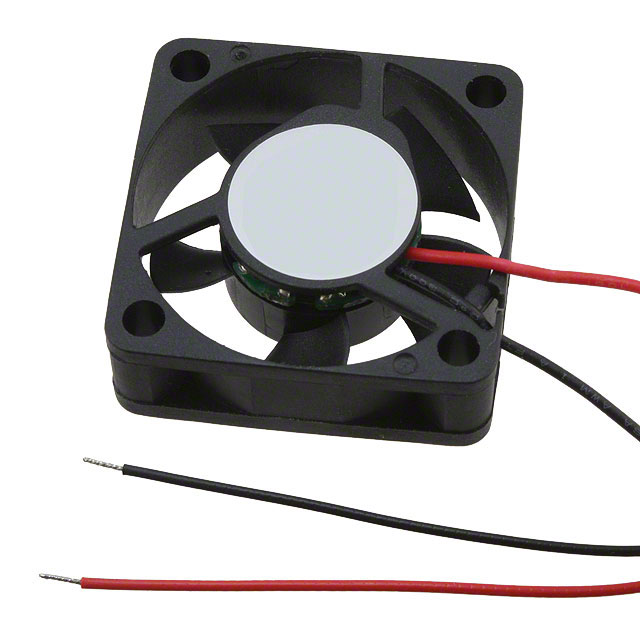

AFB0312HA-A AFB0312HA-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : 1.08W
RPM : 9000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.023 lb (10.43g)
0
1311 in stock

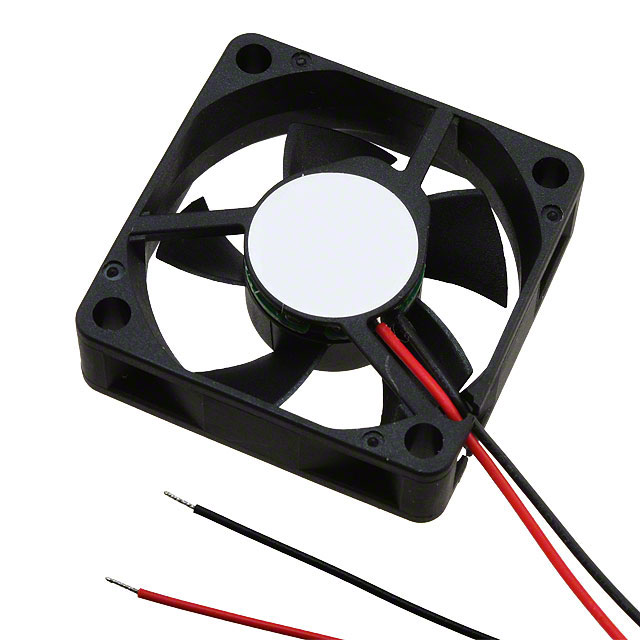

AFB03505HA-A AFB03505HA-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 5.5 CFM (0.154m鲁/min)
Static Pressure : 0.106 in H2O (26.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB(A)
Power (Watts) : 700mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.022 lb (9.98g)
0
761 in stock

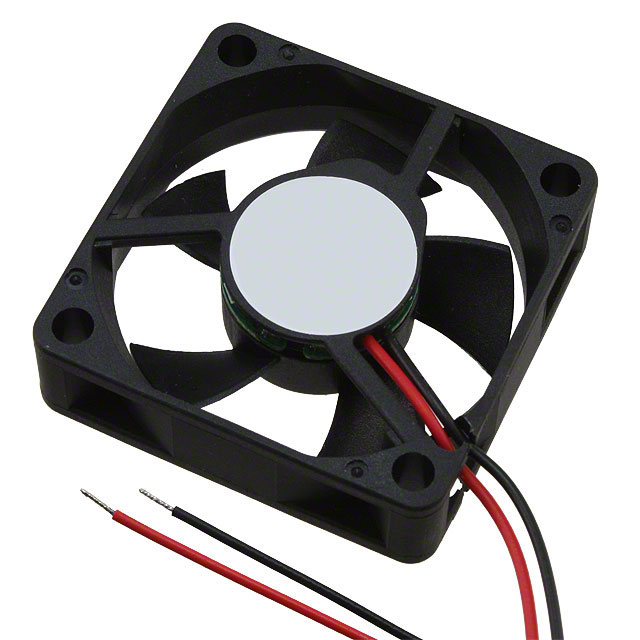

AFB03505LA-A AFB03505LA-A

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 3.4 CFM (0.095m鲁/min)
Static Pressure : 0.048 in H2O (11.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 15.0 dB(A)
Power (Watts) : 300mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.022 lb (9.98g)
0
12 in stock

AFB03505MA-C AFB03505MA-C

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 4.3 CFM (0.120m鲁/min)
Static Pressure : 0.076 in H2O (18.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 16.0 dB(A)
Power (Watts) : 500mW
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
100 in stock

AFB03505MA-CF00 AFB03505MA-CF00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 4.3 CFM (0.120m鲁/min)
Static Pressure : 0.076 in H2O (18.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 16.0 dB(A)
Power (Watts) : 500mW
RPM : 5800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
100 in stock
