Nidec Copal Electronics

- Nidec Copal Electronics, founded in 1967 and a subsidiary of Nidec Corporation, is a global supplier to the telecommunications, computer, industrial, medical, and semiconductor equipment markets. Products designed and manufactured for these markets include trimmer and precision potentiometers, switches, optical encoders, and DC fans. Copal has also expanded its’ new product development activity into areas including silicon pressure sensors, polygon laser scanners, DC turbo fans, and thermal variable attenuators.

As part of Copal’s strategy to provide the market with one of the largest portfolios of industrial switch products from one supplier, Copal Electronics completed the acquisition of the Fujisoku Corporation in late 2007. This acquisition added panel mounted toggle, rocker, lever, pushbutton, and trigger switches to an extensive range of board level switch products already manufactured by Copal. Switch product development is a focus of the combined product group in meeting market requirements for standard and customized switching solutions.

Copal Electronics maintains global customer support capabilities through regional product and customer service offices located in Germany, China, Japan, Singapore, Korea, and the USA. Multiple product manufacturing facilities are located in Japan, China, and Vietnam.


Part Number

Manufacturer

Description

Unit Price

In Stock

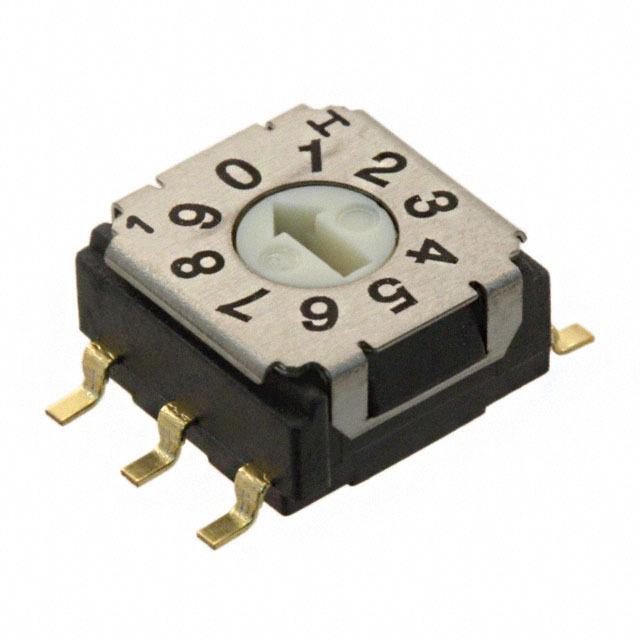

Picture of SH-7010TB

SH-7010TB

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : BCD
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

31848 in stock

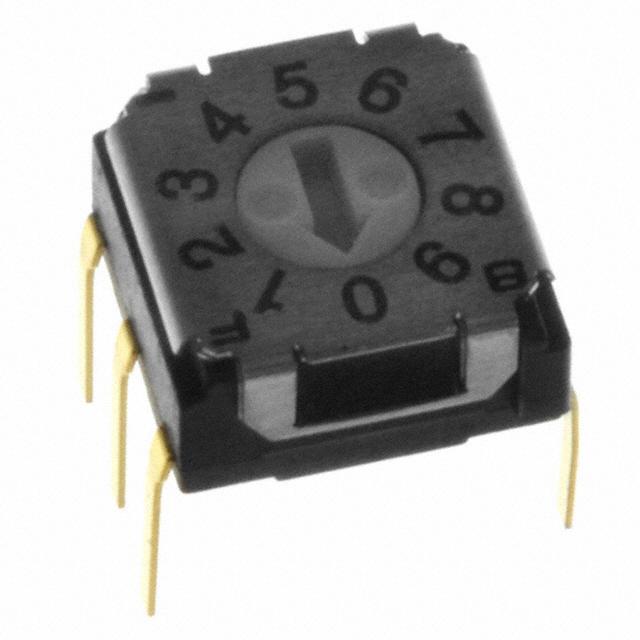

Picture of SH-7030MC

SH-7030MC

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Tube
Series : SH-7000
Part Status : Active
Circuit : BCD Complement
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.146" (3.70mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

993 in stock

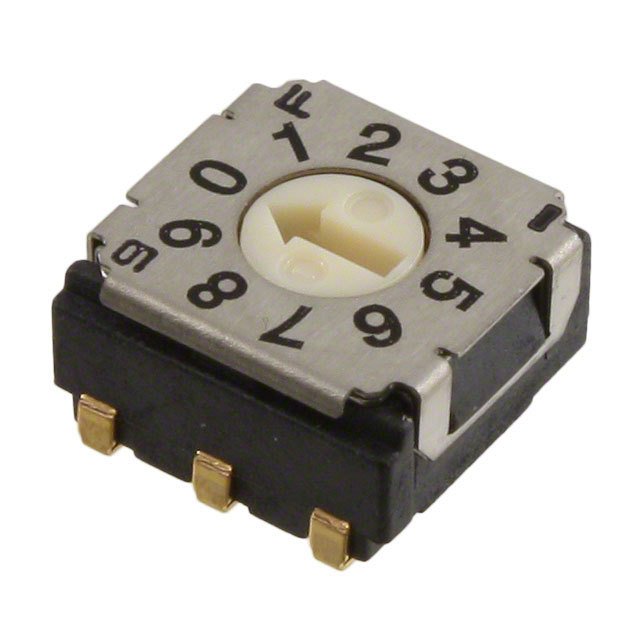

Picture of SH-7030TA

SH-7030TA

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : BCD Complement
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

873 in stock

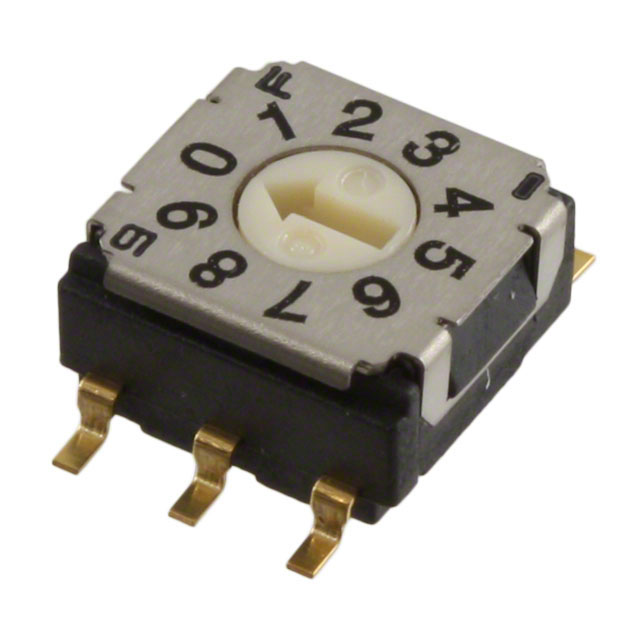

Picture of SH-7030TB

SH-7030TB

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : BCD Complement
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

6984 in stock

Picture of SH-7050MC

SH-7050MC

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Tube
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.146" (3.70mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

6907 in stock

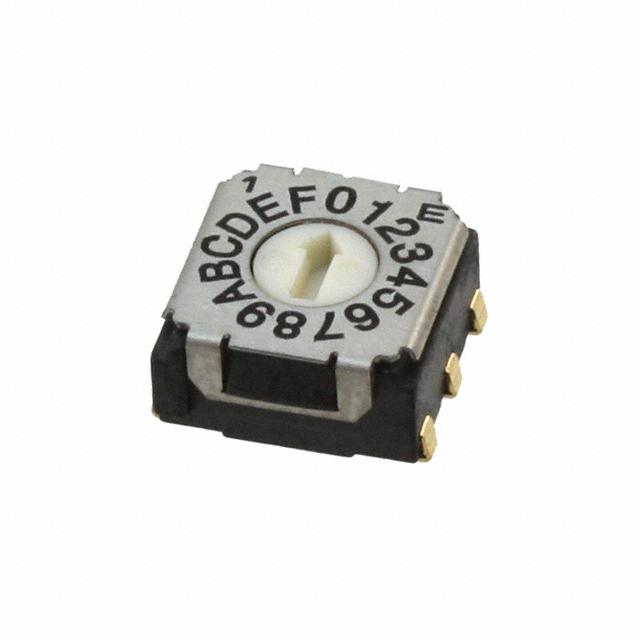

Picture of SH-7050TA

SH-7050TA

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

39600 in stock

Picture of SH-7050TB

SH-7050TB

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

64710 in stock

Picture of SH-7070MC

SH-7070MC

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Tube
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal Complement
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.146" (3.70mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

1830 in stock

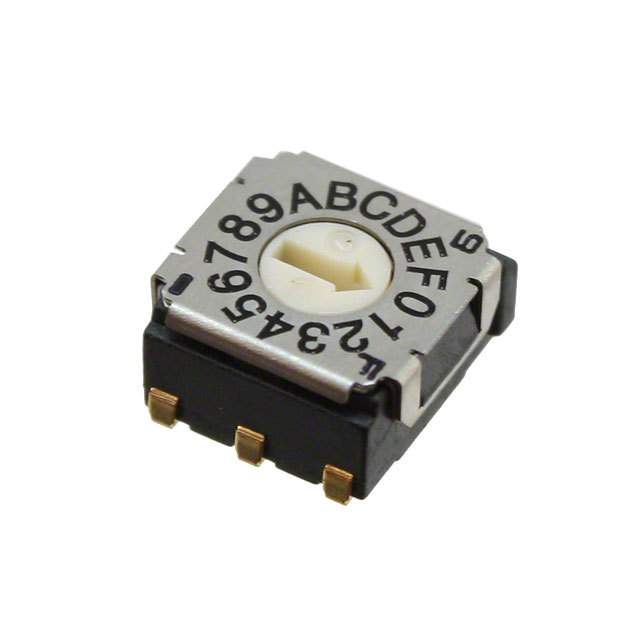

Picture of SH-7070TA

SH-7070TA

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal Complement
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

8349 in stock

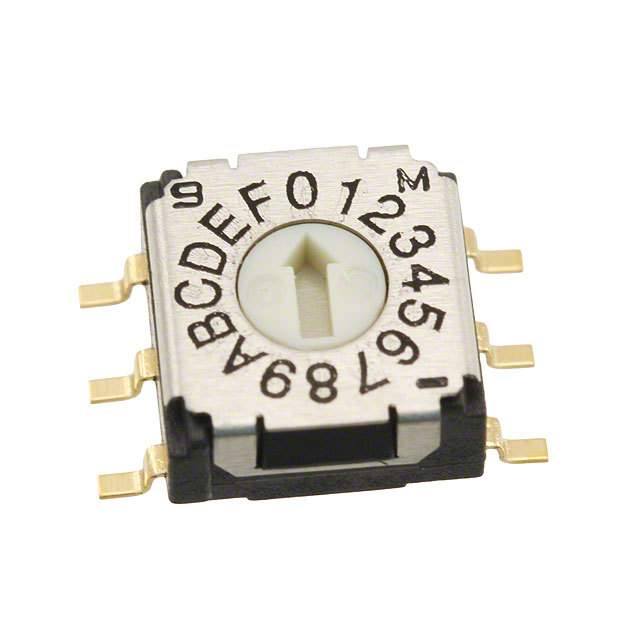

Picture of SH-7070TB

SH-7070TB

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH-7000
Part Status : Active
Circuit : Hexadecimal Complement
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

7118 in stock

Picture of SM-31TW102

SM-31TW102

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SM31
Part Status : Active
Resistance : 1 kOhms
Power (Watts) : 0.125W, 1/8W
Tolerance : ±20%
Temperature Coefficient : ±100ppm/°C
Number of Turns : 5
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.154" L x 0.126" W x 0.154" H (3.90mm x 3.20mm x 3.90mm)

0

889 in stock

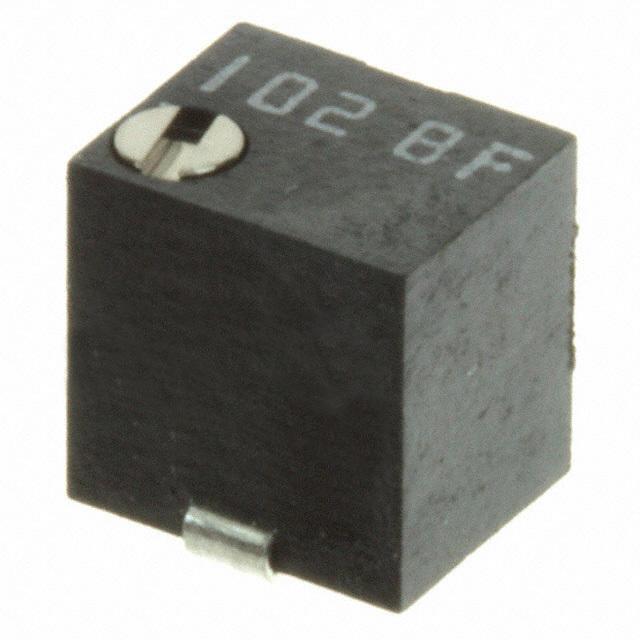

Picture of SM-31TW103

SM-31TW103

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SM31
Part Status : Active
Resistance : 10 kOhms
Power (Watts) : 0.125W, 1/8W
Tolerance : ±20%
Temperature Coefficient : ±100ppm/°C
Number of Turns : 5
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.154" L x 0.126" W x 0.154" H (3.90mm x 3.20mm x 3.90mm)

0

908 in stock
