Nidec Copal Electronics

- Nidec Copal Electronics, founded in 1967 and a subsidiary of Nidec Corporation, is a global supplier to the telecommunications, computer, industrial, medical, and semiconductor equipment markets. Products designed and manufactured for these markets include trimmer and precision potentiometers, switches, optical encoders, and DC fans. Copal has also expanded its’ new product development activity into areas including silicon pressure sensors, polygon laser scanners, DC turbo fans, and thermal variable attenuators.

As part of Copal’s strategy to provide the market with one of the largest portfolios of industrial switch products from one supplier, Copal Electronics completed the acquisition of the Fujisoku Corporation in late 2007. This acquisition added panel mounted toggle, rocker, lever, pushbutton, and trigger switches to an extensive range of board level switch products already manufactured by Copal. Switch product development is a focus of the combined product group in meeting market requirements for standard and customized switching solutions.

Copal Electronics maintains global customer support capabilities through regional product and customer service offices located in Germany, China, Japan, Singapore, Korea, and the USA. Multiple product manufacturing facilities are located in Japan, China, and Vietnam.


Part Number

Manufacturer

Description

Unit Price

In Stock

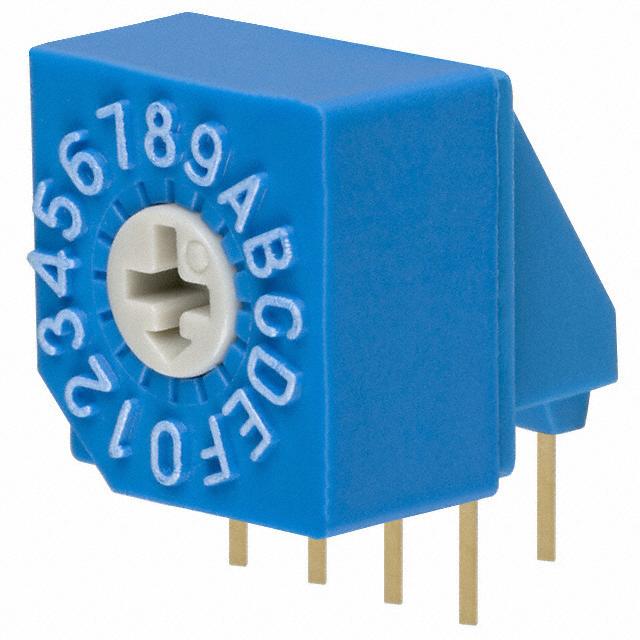

Picture of S-1031A

S-1031A

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-1000A
Part Status : Active
Circuit : Hexadecimal Complement
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.394" (10.00mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

7210 in stock

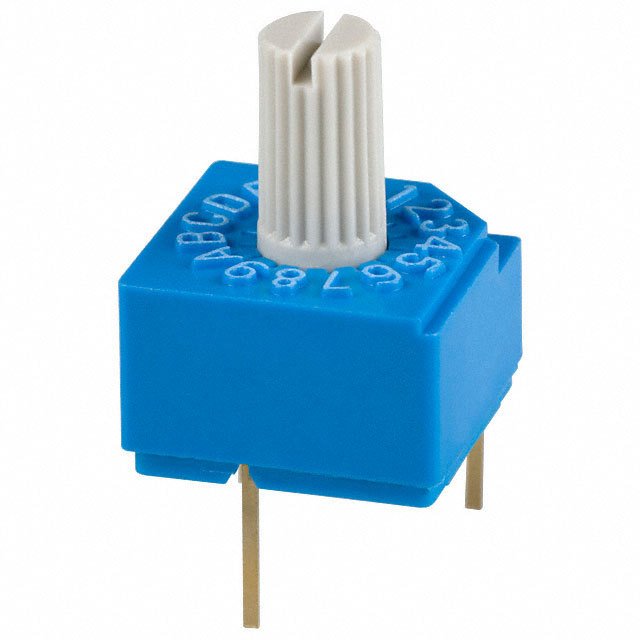

Picture of S-1110A

S-1110A

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-1000A
Part Status : Active
Circuit : Hexadecimal
Number of Positions : 16
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary with Shaft
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.535" (13.59mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

2912 in stock

Picture of S-1-Z

S-1-Z

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 8A (AC)
Voltage Rating - AC : 125V
Voltage Rating - DC : -
Actuator Type : Standard
Actuator Length : 9.00mm
Contact Material : -
Contact Finish : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Features : -
Operating Temperature : -

0

25 in stock

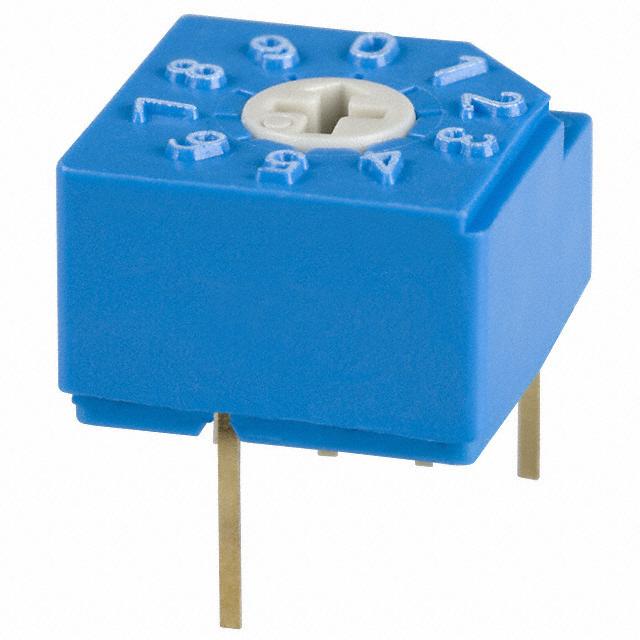

Picture of S-2010A

S-2010A

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2000A
Part Status : Active
Circuit : BCD
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.275" (6.99mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

1713 in stock

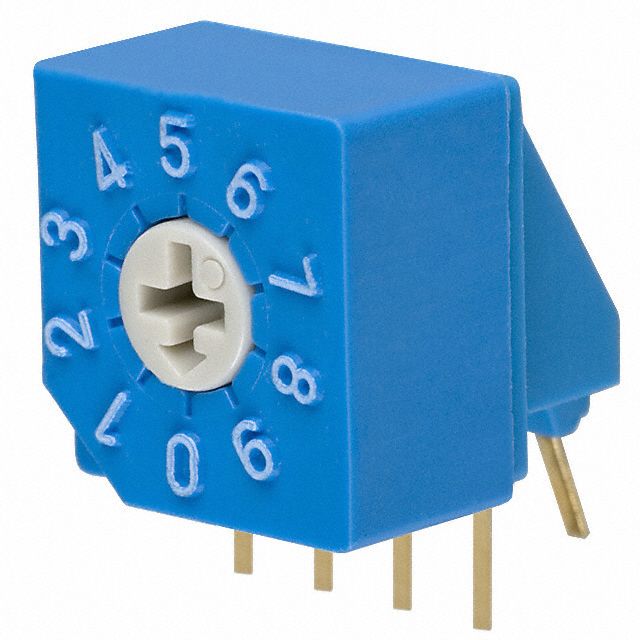

Picture of S-2011A

S-2011A

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2000A
Part Status : Active
Circuit : BCD
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.394" (10.00mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

41 in stock

Picture of S-2031A

S-2031A

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2000A
Part Status : Active
Circuit : BCD Complement
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.394" (10.00mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -40°C ~ 85°C

0

445 in stock

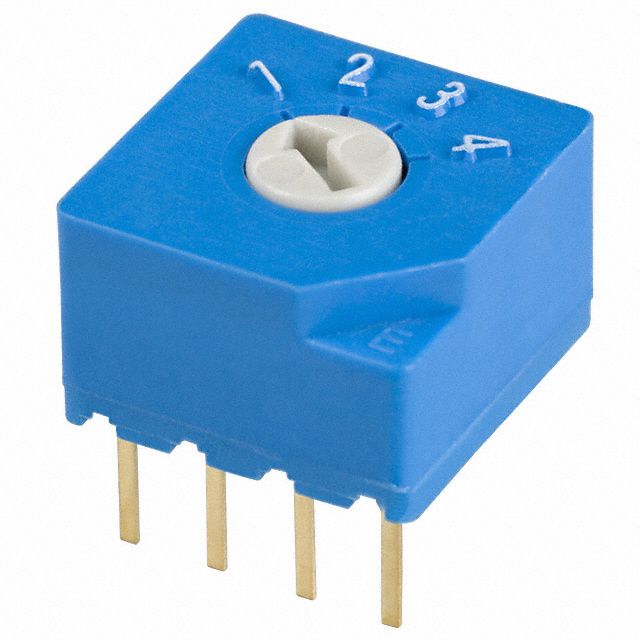

Picture of S-2050

S-2050

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2050
Part Status : Active
Circuit : SP4T
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.275" (6.99mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

1209 in stock

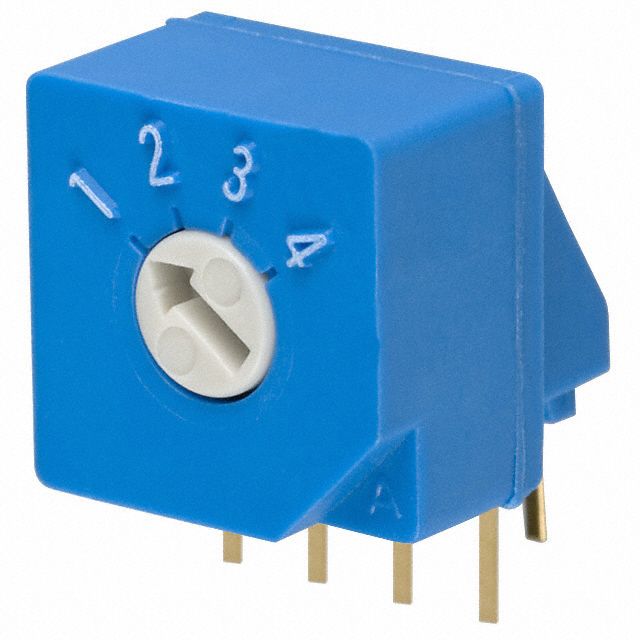

Picture of S-2051

S-2051

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2050
Part Status : Active
Circuit : SP4T
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.394" (10.00mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

7134 in stock

Picture of S-2150

S-2150

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2050
Part Status : Active
Circuit : SP4T
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary with Shaft
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.535" (13.59mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

1464 in stock

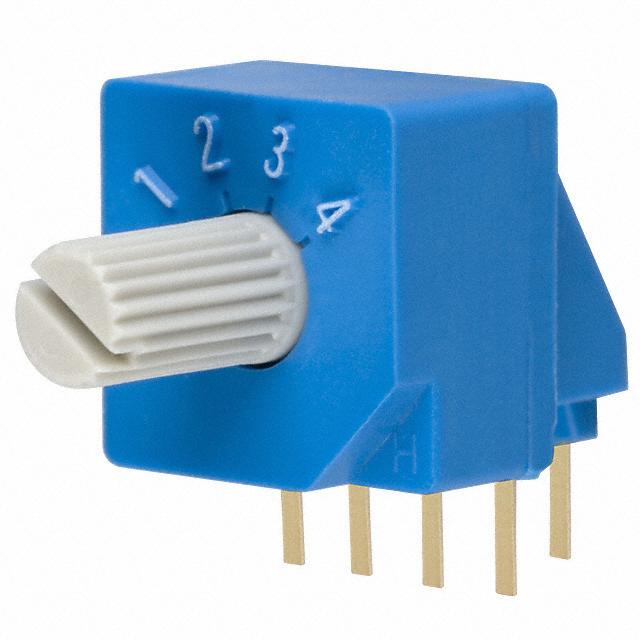

Picture of S-2151

S-2151

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S-2050
Part Status : Active
Circuit : SP4T
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary with Shaft
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.394" (10.00mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

726 in stock

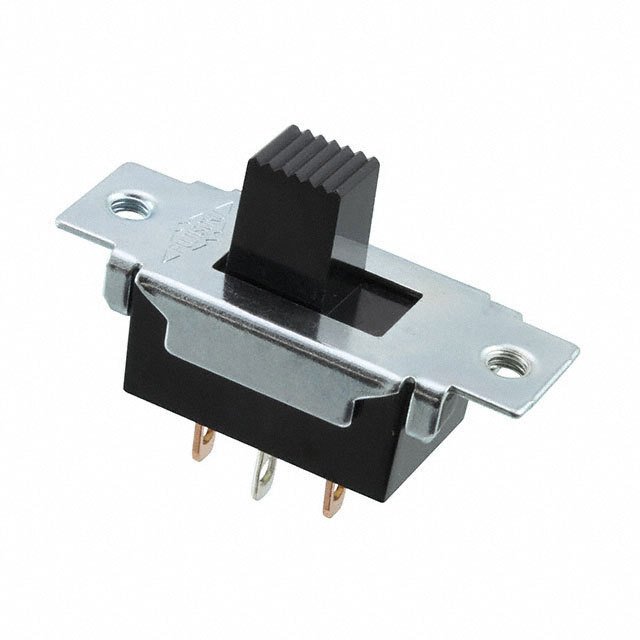

Picture of S-3-Z

S-3-Z

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : S
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 8A (AC)
Voltage Rating - AC : 125V
Voltage Rating - DC : -
Actuator Type : Standard
Actuator Length : 9.00mm
Contact Material : -
Contact Finish : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Features : -
Operating Temperature : -

0

210 in stock

Picture of S-4010TA

S-4010TA

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S-4000
Part Status : Active
Circuit : BCD
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 2.4VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.102" (2.60mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.050" (1.27mm), Half
Washable : No
Features : -
Operating Temperature : -25°C ~ 70°C

0

1672 in stock
