Central Semiconductor

- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.


Part Number

Manufacturer

Description

Unit Price

In Stock

CMSZDA12V TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 12V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 25 Ohms
Current - Reverse Leakage @ Vr : 100nA @ 8V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

5641 in stock

CMSZDA20V TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 20V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 55 Ohms
Current - Reverse Leakage @ Vr : 50nA @ 14V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

5168 in stock

CMSZDA33V TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 33V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 80 Ohms
Current - Reverse Leakage @ Vr : 50nA @ 23.1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

5646 in stock

CMSZDA5V1 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 5.1V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 60 Ohms
Current - Reverse Leakage @ Vr : 2µA @ 2V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

8988 in stock

CMSZDA5V6 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 5.6V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 40 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 2V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

5811 in stock

CMSZDA8V2 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 8.2V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 15 Ohms
Current - Reverse Leakage @ Vr : 700nA @ 5V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

8865 in stock

CMSZDA9V1 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Configuration : 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) : 9.1V
Tolerance : ±5%
Power - Max : 275mW
Impedance (Max) (Zzt) : 15 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 6V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323

5898 in stock

CMUD2838 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 100mA
Speed : Small Signal =

4ns

100nA @ 50V

-65°C ~ 150°C

Surface Mount

SC-89, SOT-490

SOT-523
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-89, SOT-490
Supplier Device Package : SOT-523

3000 in stock

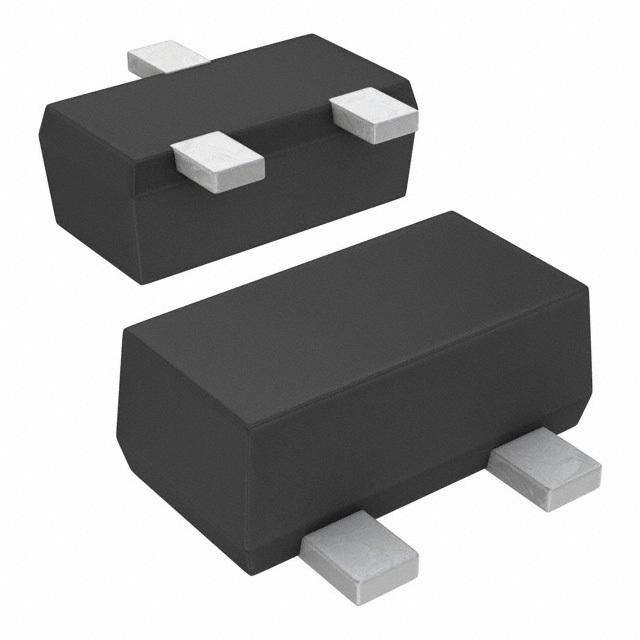

CMUD4448 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 250mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 25nA @ 20V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-89, SOT-490
Supplier Device Package : SOT-523
Operating Temperature - Junction : -65°C ~ 150°C

5771 in stock

CMUD7000 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 100mA
Speed : Small Signal =

4ns

300nA @ 50V

-65°C ~ 150°C

Surface Mount

SC-89, SOT-490

SOT-523
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 300nA @ 50V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-89, SOT-490
Supplier Device Package : SOT-523

2850 in stock

CMUDM7001 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4V
Rds On (Max) @ Id, Vgs : 3 Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.57nC @ 4.5V
Vgs (Max) : 10V
Input Capacitance (Ciss) (Max) @ Vds : 9pF @ 3V
FET Feature : -
Power Dissipation (Max) : 250mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-523
Package / Case : SC-89, SOT-490

2474 in stock

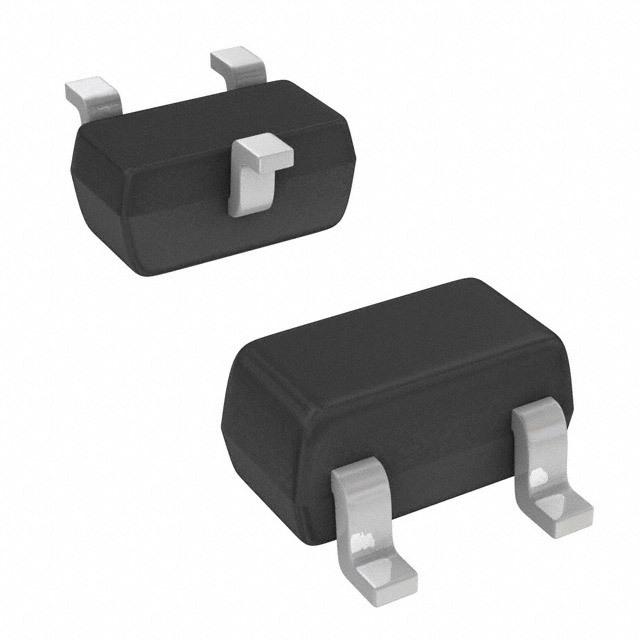

CMUDM7004 TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 460 mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.79nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 45pF @ 25V
FET Feature : -
Power Dissipation (Max) : 250mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-523
Package / Case : SOT-523

18771 in stock
