Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 91 mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.6nC @ 5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 800pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)

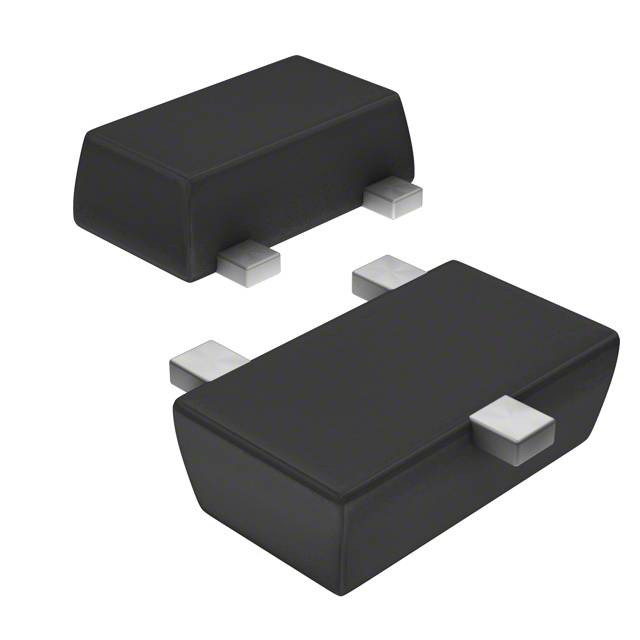

Mounting Type : Surface Mount
Supplier Device Package : SOT-23F
Package / Case : SOT-23-3 Flat Leads
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 91 mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.6nC @ 5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 800pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23F
Package / Case : SOT-23-3 Flat Leads
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 40 mOhm @ 1.8A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23F
Package / Case : SOT-23-3 Flat Leads
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 40 mOhm @ 1.8A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23F
Package / Case : SOT-23-3 Flat Leads
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.59nC @ 4.5V
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)

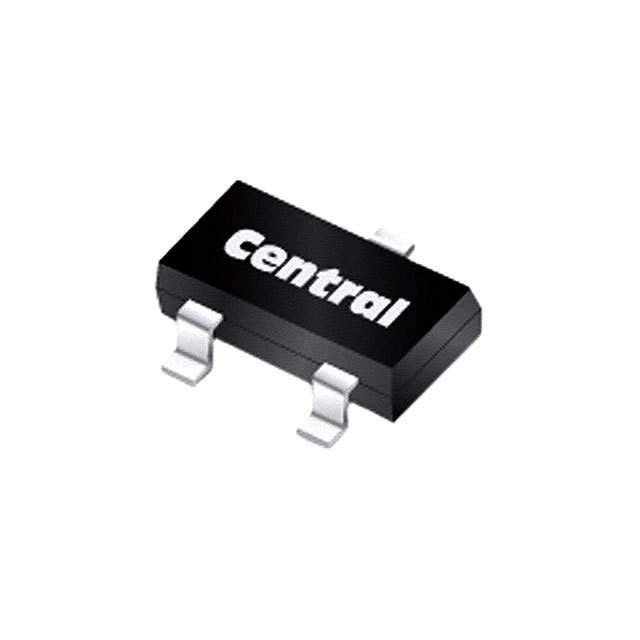

Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
7352 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 220 mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.3nC @ 4.5V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 240pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
2994 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.76nC @ 4.5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
3534 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 25mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 2V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 60 Ohms
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
27000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 100 Ohms
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
7435 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 35V
Drain to Source Voltage (Vdss) : 35V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 2.5V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 4.5pF @ 15V
Resistance - RDS(On) : -
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
2451 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 4mA @ 15V
Current Drain (Id) - Max : 30mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 10nA
Input Capacitance (Ciss) (Max) @ Vds : 5pF @ 15V
Resistance - RDS(On) : -
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
100 in stock
