Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock

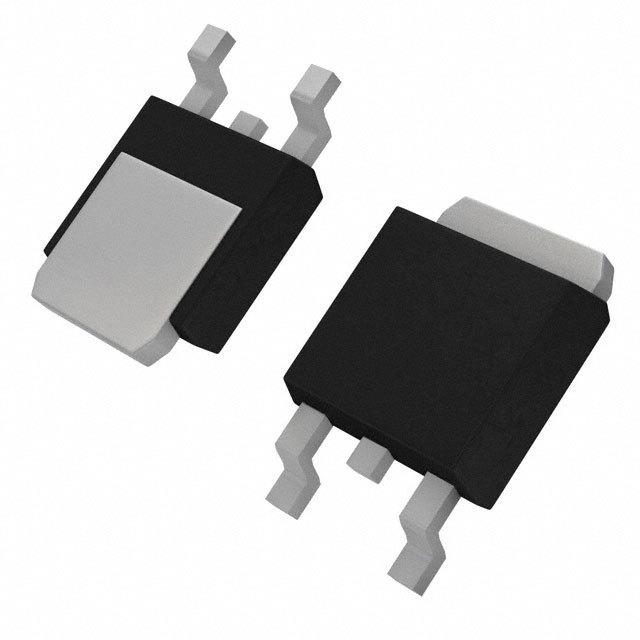

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 10A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 125µA @ 650V
Capacitance @ Vr, F : 325pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : -55°C ~ 175°C
0
86 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : *
Part Status : Obsolete
Voltage - Breakover : -
Current - Breakover : -
Current - Hold (Ih) (Max) : -
Current - Peak Output : -
Operating Temperature : -
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : *
Part Status : Obsolete
Voltage - Breakover : -
Current - Breakover : -
Current - Hold (Ih) (Max) : -
Current - Peak Output : -
Operating Temperature : -
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.6A (Ta)
Rds On (Max) @ Id, Vgs : 40 mOhm @ 1.8A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 10V
Power - Max : 1.65W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TDFN Exposed Pad
Supplier Device Package : TLM832DS
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.6A
Rds On (Max) @ Id, Vgs : 40 mOhm @ 1.8A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 10V
Power - Max : 1.65W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TDFN Exposed Pad
Supplier Device Package : TLM832DS
0
100 in stock

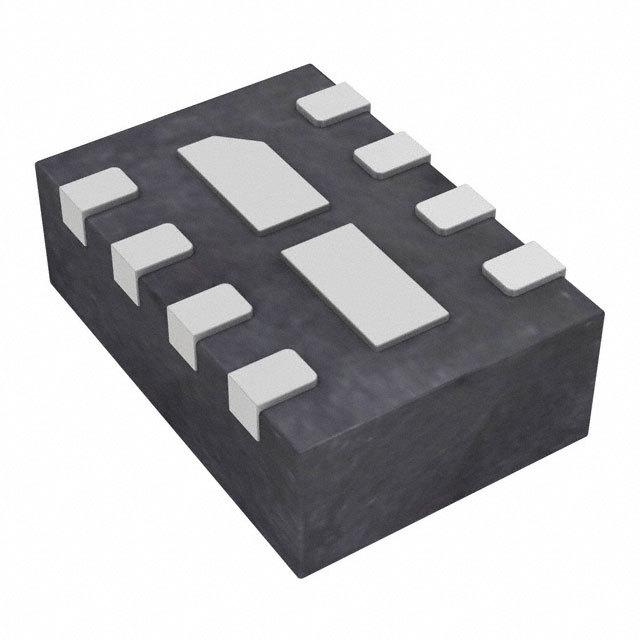

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.2A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 4.2A, 10V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 760pF @ 15V
Power - Max : 1.65W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TDFN Exposed Pad
Supplier Device Package : TLM832DS
0
12000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 160mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.2V, 4.5V
Rds On (Max) @ Id, Vgs : 3 Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.46nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 9pF @ 15V
FET Feature : -
Power Dissipation (Max) : 125mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM3D6D8
Package / Case : 3-XFDFN
0
260000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.592nC @ 4.5V
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 900mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM621
Package / Case : 6-PowerVFDFN
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.592nC @ 4.5V
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 900mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM621
Package / Case : 6-PowerVFDFN
0
21000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 5V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.764nC @ 4.5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 900mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM621
Package / Case : 6-PowerVFDFN
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 5V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.764nC @ 4.5V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 900mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM621
Package / Case : 6-PowerVFDFN
0
42000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : -
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 100 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 2.4nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 220pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TLM621H
Package / Case : 6-XFDFN Exposed Pad
0
100 in stock
