Welcome to Eruic

Central Semiconductor

- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.

Part Number
Manufacturer
Description
Unit Price
In Stock

CQ48-35M CQ48-35M

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 35A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A @ 100Hz
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis, Stud Mount
Package / Case : TO-208AA, TO-48-3, Stud
Supplier Device Package : TO-48
0
100 in stock

CQ92-2M CQ92-2M

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 2A
Voltage - Gate Trigger (Vgt) (Max) : 1.8V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 8mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92-2N CQ92-2N

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 2A
Voltage - Gate Trigger (Vgt) (Max) : 1.8V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 8mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92B CQ92B

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 200V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92BT CQ92BT

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 200V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 3mA
Current - Hold (Ih) (Max) : 3mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92D CQ92D

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92D APM CQ92D APM

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92DT CQ92DT

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 3mA
Current - Hold (Ih) (Max) : 3mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92M CQ92M

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92MT CQ92MT

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 3mA
Current - Hold (Ih) (Max) : 3mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

CQ92N CQ92N

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Internally Triggered
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 5mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
100 in stock

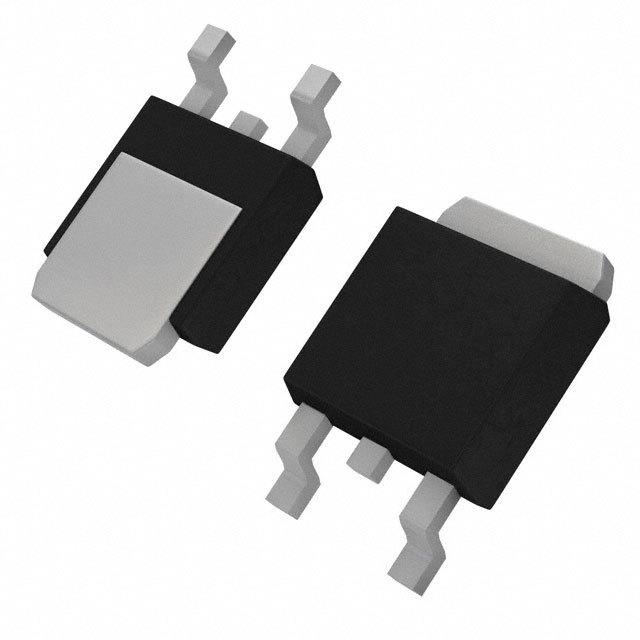

CSHD10-45L TR13 CSHD10-45L TR13

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : -65°C ~ 150°C
0
1263 in stock
