API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

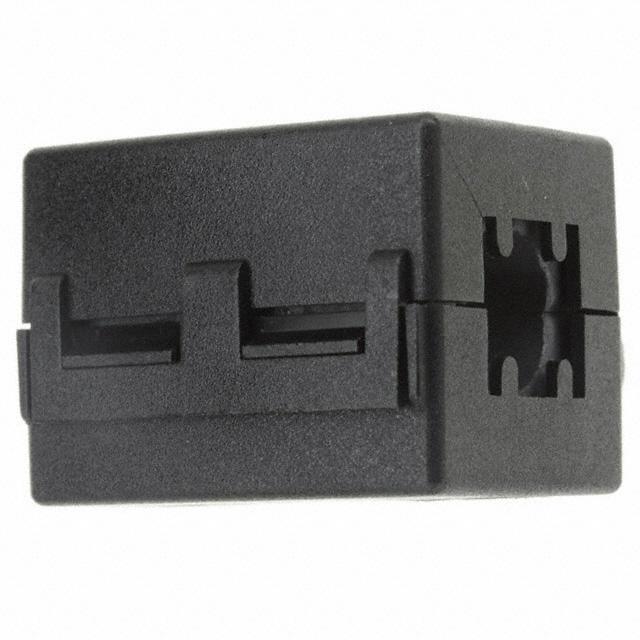

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 250 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.394" Dia (10.00mm)
Outer Dimension : 0.870" W x 0.910" H (22.30mm x 23.30mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.280" (32.60mm)
0
1675 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 257 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.512" Dia (13.00mm)
Outer Dimension : 1.160" W x 1.200" H (29.60mm x 30.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.300" (33.00mm)
0
281 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 95 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.591" Dia (15.00mm)
Outer Dimension : 1.240" Dia (31.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 0.840" (21.50mm)
0
1187 in stock

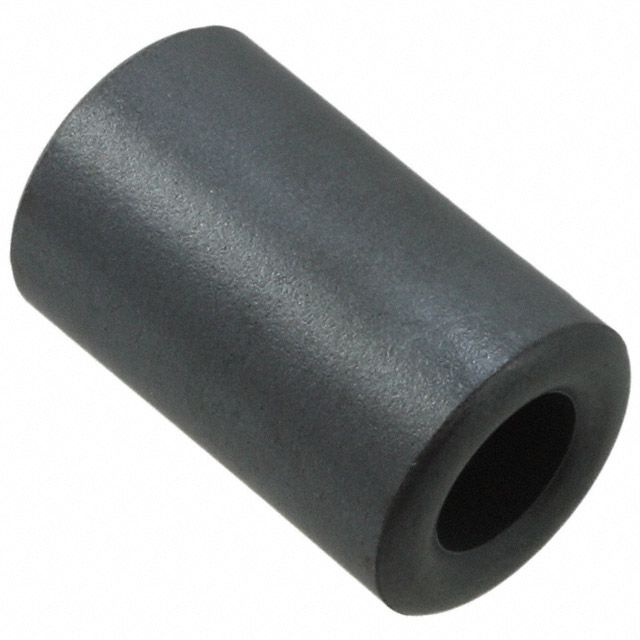

API Delevan
Manufacturer : API Delevan Inc.
Series : CF
Part Status : Active
Type : Round
Design : Solid
Impedance @ Frequency : 172 Ohm @ 100MHz
Material : -
Inner Dimension : 0.374" Dia (9.50mm)
Outer Dimension : 0.688" Dia (17.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.122" (28.50mm)
0
22387 in stock

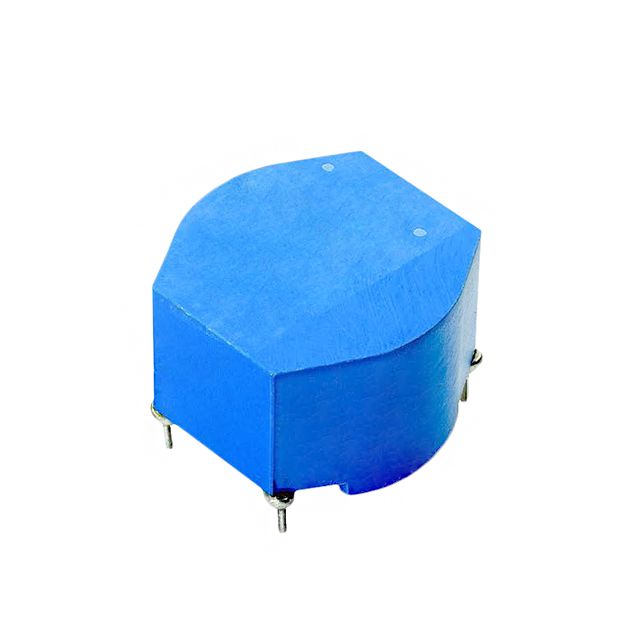

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM1011R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 73 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.098" L x 1.098" W (27.90mm x 27.90mm)
Height (Max) : 0.731" (18.56mm)
Package / Case : Horizontal, 4 PC Pin
0
64 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 1kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
681 in stock

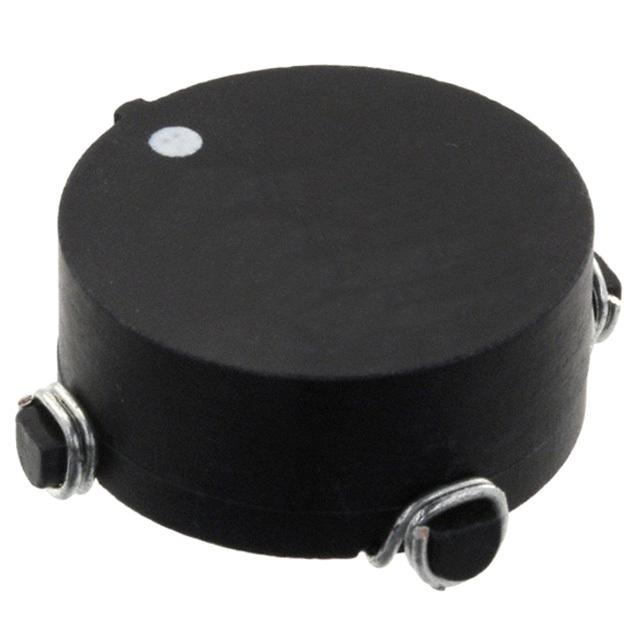

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 150µH @ 1kHz
Current Rating (Max) : 9.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
182 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 8.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
294 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 25µH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
1320 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 300µH @ 1kHz
Current Rating (Max) : 7.5A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 50µH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
172 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 650µH @ 1kHz
Current Rating (Max) : 5.5A
DC Resistance (DCR) (Max) : 30 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
317 in stock
