API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

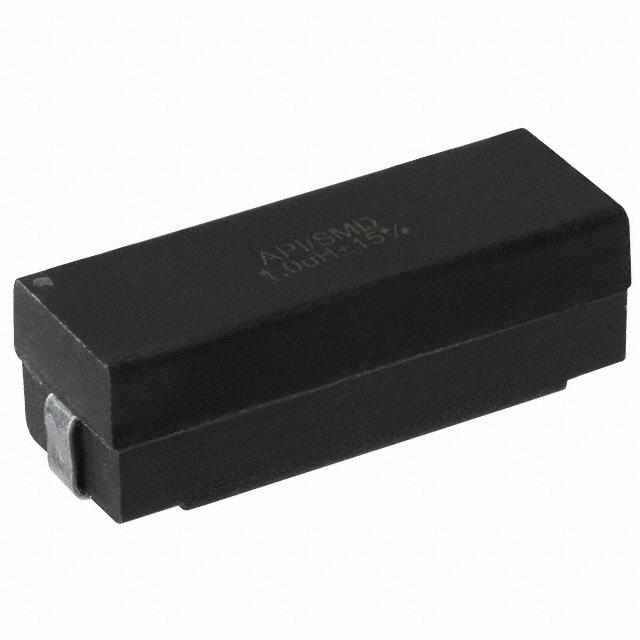

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 8532R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±15%
Current Rating : 490mA
Current - Saturation : 250mA
Shielding : Unshielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
150 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 8532R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±15%
Current Rating : 390mA
Current - Saturation : 200mA
Shielding : Unshielded
DC Resistance (DCR) : 2.3 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
639 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 8532R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 8.2mH
Tolerance : ±15%
Current Rating : 130mA
Current - Saturation : 70mA
Shielding : Unshielded
DC Resistance (DCR) : 20.8 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
629 in stock

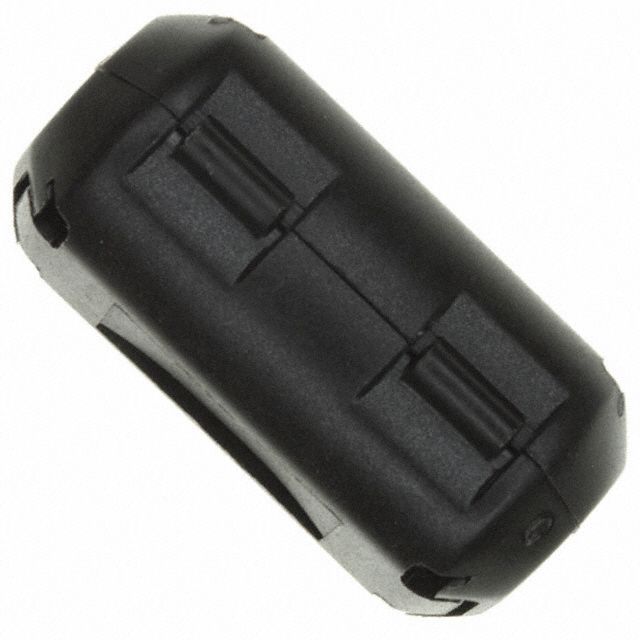

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 191 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.138" Dia (3.50mm)
Outer Dimension : 0.461" W x 0.512" H (11.70mm x 13.00mm)
Ratings : -
Mounting Type : Free Hanging
Length : 0.984" (25.00mm)
0
2747 in stock

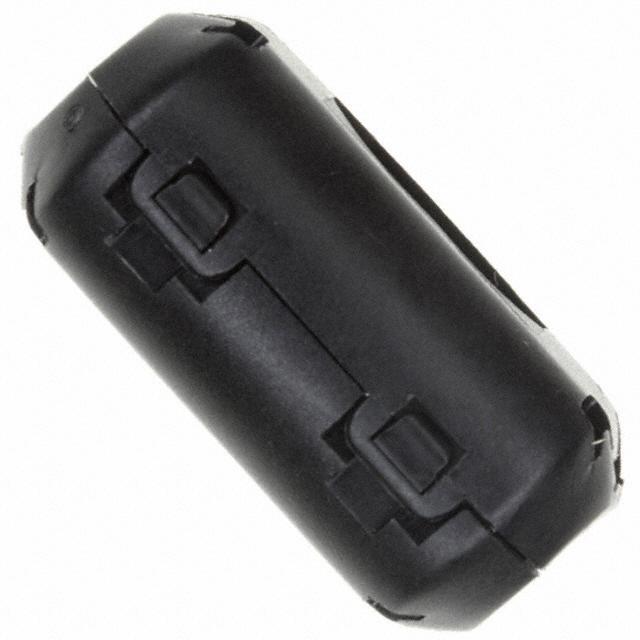

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 154 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.197" Dia (5.00mm)
Outer Dimension : 0.461" W x 0.512" H (11.70mm x 13.00mm)
Ratings : -
Mounting Type : Free Hanging
Length : 0.984" (25.00mm)
0
3775 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 146 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.157" Dia (4.00mm)
Outer Dimension : 0.504" W x 0.570" H (12.80mm x 14.70mm)
Ratings : -
Mounting Type : Free Hanging
Length : 0.984" (25.00mm)
0
572 in stock

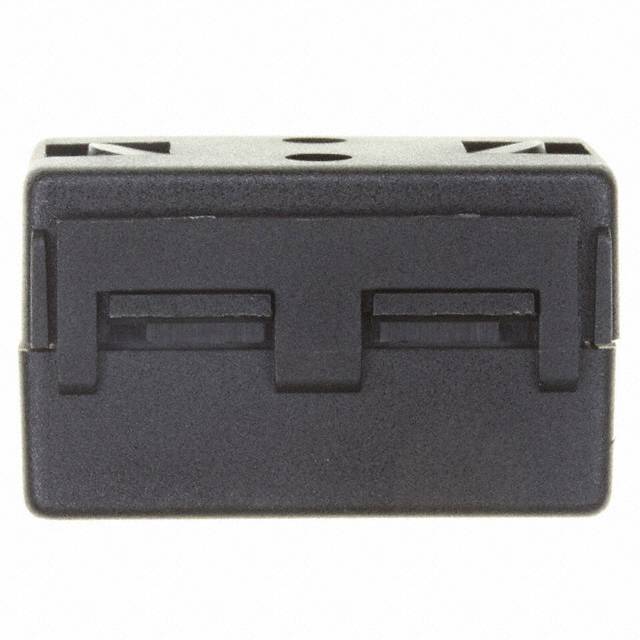

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 157 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.220" Dia (5.60mm)
Outer Dimension : 0.571" W x 0.610" H (14.50mm x 15.70mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.140" (28.96mm)
0
941 in stock

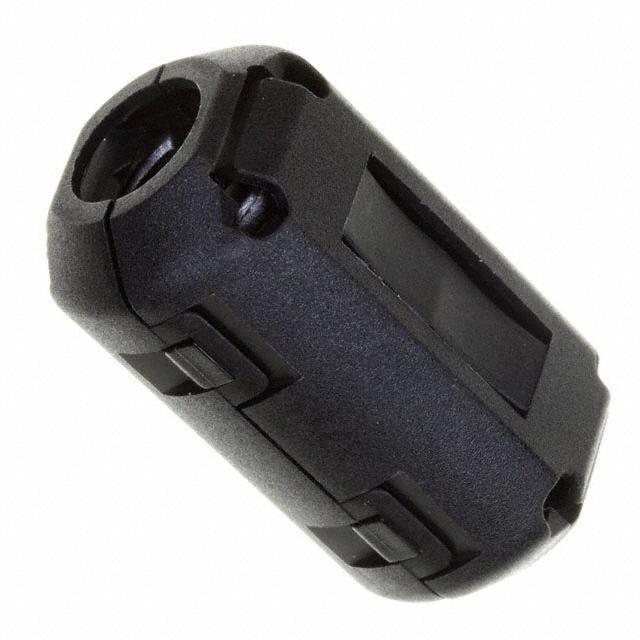

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 325 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.256" Dia (6.50mm)
Outer Dimension : 0.701" W x 0.760" H (17.80mm x 19.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.280" (32.50mm)
0
2716 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 172 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.354" Dia (9.00mm)
Outer Dimension : 0.709" W x 0.776" H (18.00mm x 19.70mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.378" (35.00mm)
0
404 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 174 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.354" Dia (9.00mm)
Outer Dimension : 0.732" Dia (18.60mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.380" (35.20mm)
0
279 in stock

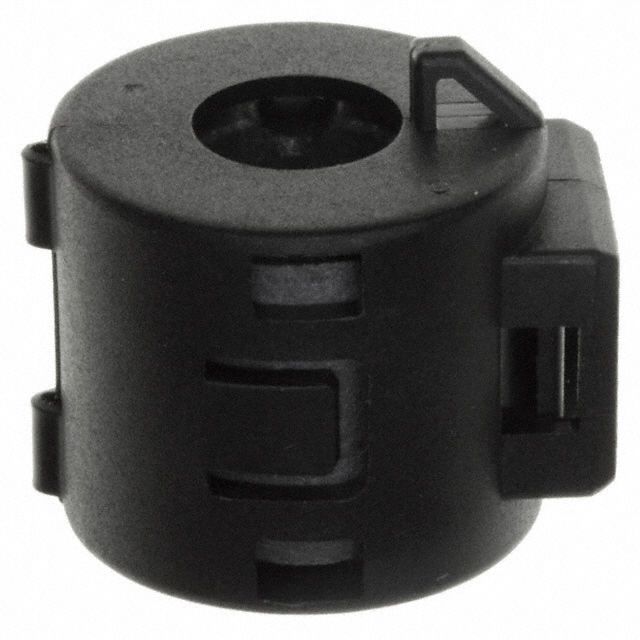

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 94 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.321" Dia (8.15mm)
Outer Dimension : 0.846" Dia (21.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 0.900" (23.00mm)
0
100 in stock

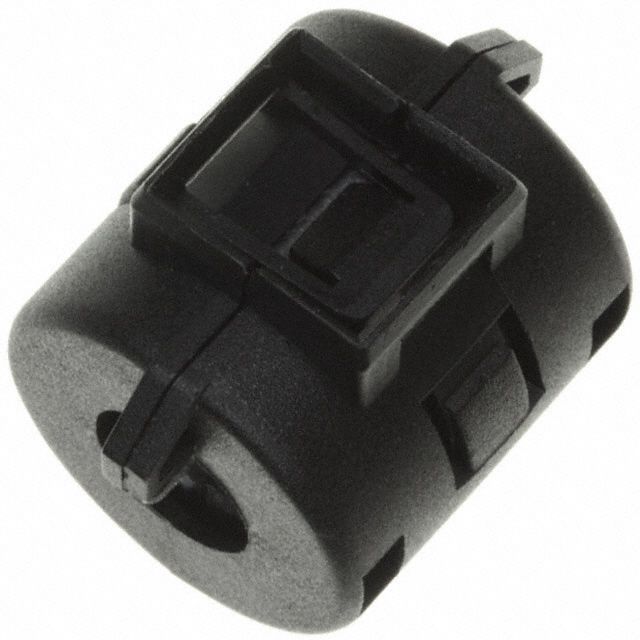

API Delevan
Manufacturer : API Delevan Inc.
Series : BF
Part Status : Active
Type : Round
Design : Hinged (Snap On)
Impedance @ Frequency : 107 Ohm @ 100MHz
Material : API-1
Inner Dimension : 0.321" Dia (8.15mm)
Outer Dimension : 0.846" Dia (21.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 1.010" (25.80mm)
0
671 in stock
