American Technical Ceramics
- American Technical Ceramics Corp. (ATC) provides component and custom integrated packaging solutions for the RF, microwave and telecommunications industries. ATC designs, develops, manufactures, and markets Multilayer Capacitors, Single Layer Capacitors, Resistive Products, Inductors, and Custom Thin Film Products for RF, microwave and millimeter-wave applications.
Part Number
Manufacturer
Description
Unit Price
In Stock

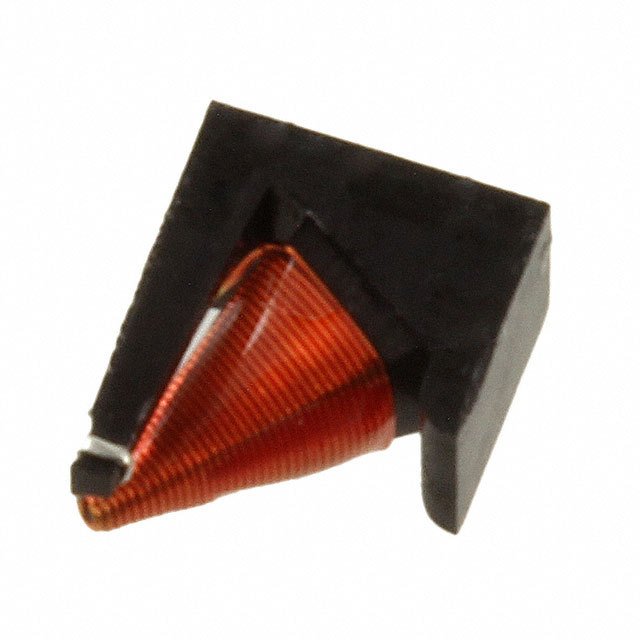

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 3.8µH
Tolerance : ±10%
Current Rating : 182mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.7 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
104 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 10.7µH
Tolerance : ±10%
Current Rating : 150mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 7.1 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
35 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 2µH
Tolerance : ±10%
Current Rating : 494mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 650 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
29 in stock

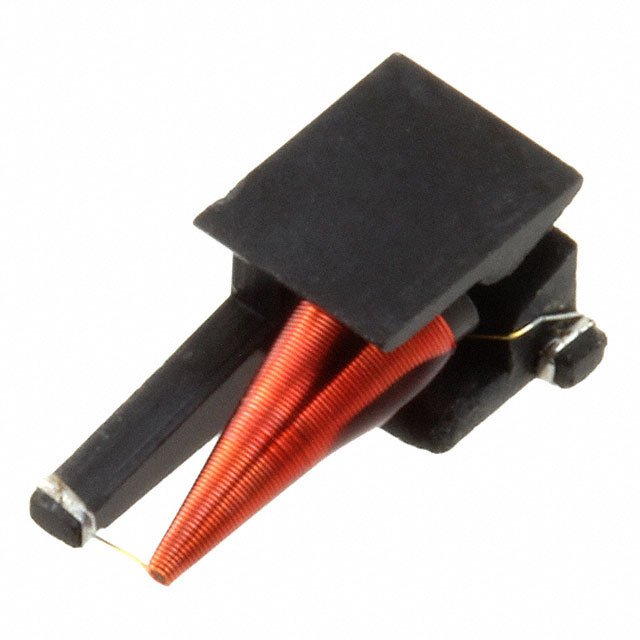

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 350mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.2 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
119 in stock

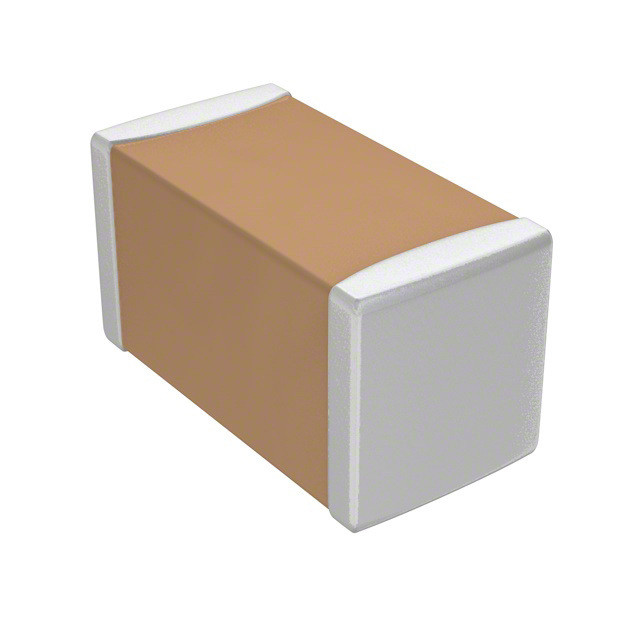

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 520L
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage - Rated : 16V
Temperature Coefficient : X7R
Operating Temperature : -55°C ~ 125°C
Features : High Q, Low Loss
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Lead Style : -
0
158833 in stock

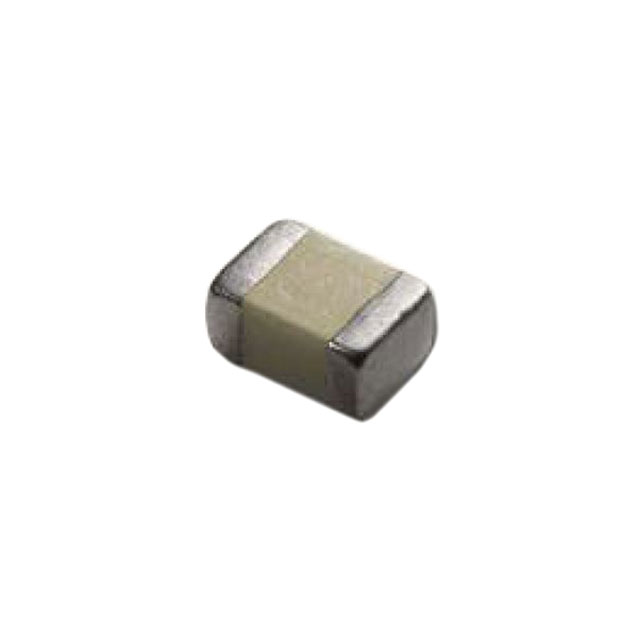

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 530L
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage - Rated : 16V
Temperature Coefficient : X7R
Operating Temperature : -55°C ~ 125°C
Features : -
Ratings : -
Applications : SMPS Filtering
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0402 (1005 Metric)
Size / Dimension : 0.040" L x 0.020" W (1.02mm x 0.51mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.61mm)
Lead Spacing : -
Lead Style : -
0
5000 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 530Z
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage - Rated : 10V
Temperature Coefficient : X5R
Operating Temperature : -55°C ~ 85°C
Features : -
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0201 (0603 Metric)
Size / Dimension : 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.013" (0.33mm)
Lead Spacing : -
Lead Style : -
0
7210 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 531Z
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage - Rated : 16V
Temperature Coefficient : X5R
Operating Temperature : -55°C ~ 85°C
Features : -
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0201 (0603 Metric)
Size / Dimension : 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.013" (0.33mm)
Lead Spacing : -
Lead Style : -
0
29440 in stock

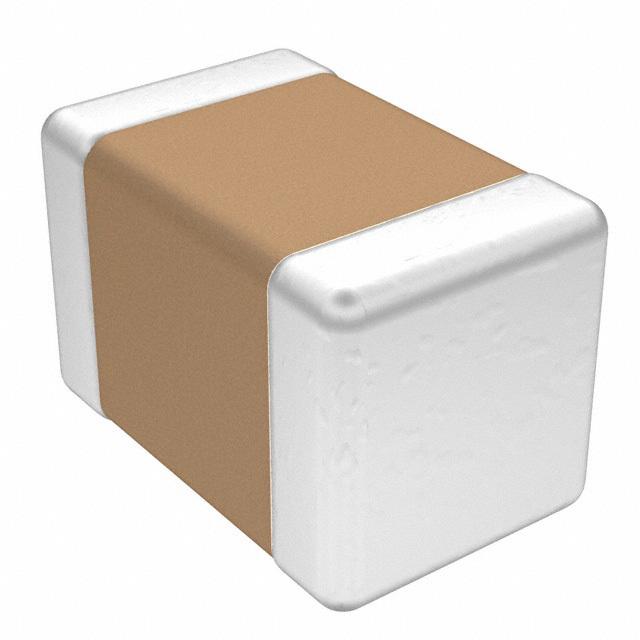

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 600F
Part Status : Active
Capacitance : 0.1pF
Tolerance : ±0.05pF
Voltage - Rated : 250V
Temperature Coefficient : C0G, NP0
Operating Temperature : -55°C ~ 125°C
Features : High Q, Low Loss, Ultra Low ESR
Ratings : -
Applications : RF, Microwave, High Frequency, Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.049" W (2.01mm x 1.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
Lead Style : -
0
2112 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 600F
Part Status : Active
Capacitance : 0.3pF
Tolerance : ±0.05pF
Voltage - Rated : 250V
Temperature Coefficient : C0G, NP0
Operating Temperature : -55°C ~ 125°C
Features : High Q, Low Loss, Ultra Low ESR
Ratings : -
Applications : RF, Microwave, High Frequency, Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.049" W (2.01mm x 1.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
Lead Style : -
0
2223 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 600F
Part Status : Active
Capacitance : 0.4pF
Tolerance : ±0.05pF
Voltage - Rated : 250V
Temperature Coefficient : C0G, NP0
Operating Temperature : -55°C ~ 125°C
Features : High Q, Low Loss, Ultra Low ESR
Ratings : -
Applications : RF, Microwave, High Frequency, Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.049" W (2.01mm x 1.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
Lead Style : -
0
4070 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 600F
Part Status : Active
Capacitance : 0.5pF
Tolerance : ±0.1pF
Voltage - Rated : 250V
Temperature Coefficient : C0G, NP0
Operating Temperature : -55°C ~ 125°C
Features : High Q, Low Loss, Ultra Low ESR
Ratings : -
Applications : RF, Microwave, High Frequency, Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.049" W (2.01mm x 1.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
Lead Style : -
0
6347 in stock
