American Technical Ceramics
- American Technical Ceramics Corp. (ATC) provides component and custom integrated packaging solutions for the RF, microwave and telecommunications industries. ATC designs, develops, manufactures, and markets Multilayer Capacitors, Single Layer Capacitors, Resistive Products, Inductors, and Custom Thin Film Products for RF, microwave and millimeter-wave applications.
Part Number
Manufacturer
Description
Unit Price
In Stock

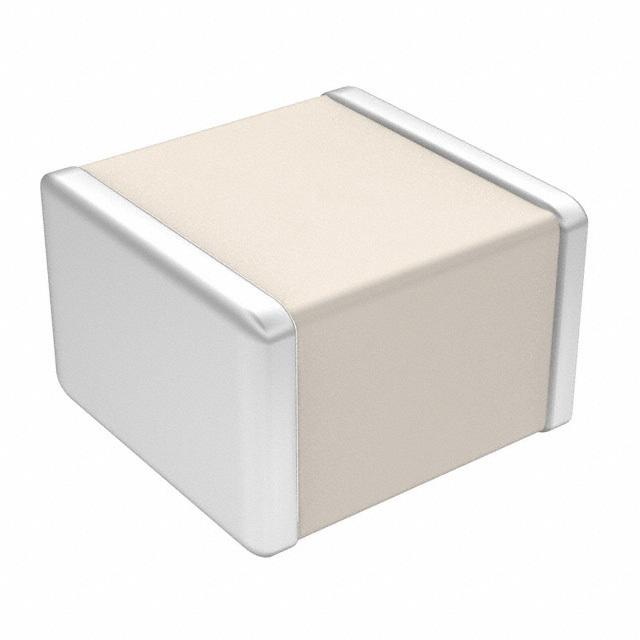

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 200B
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage - Rated : 50V
Temperature Coefficient : BX
Operating Temperature : -55°C ~ 125°C
Features : Low ESL
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 1111 (2828 Metric)
Size / Dimension : 0.110" L x 0.110" W (2.79mm x 2.79mm)
Height - Seated (Max) : -
Thickness (Max) : 0.102" (2.59mm)
Lead Spacing : -
Lead Style : -
0
746 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 200B
Part Status : Active
Capacitance : 10000pF
Tolerance : ±20%
Voltage - Rated : 50V
Temperature Coefficient : BX
Operating Temperature : -55°C ~ 125°C
Features : Low ESL
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 1111 (2828 Metric)
Size / Dimension : 0.110" L x 0.110" W (2.79mm x 2.79mm)
Height - Seated (Max) : -
Thickness (Max) : 0.102" (2.59mm)
Lead Spacing : -
Lead Style : -
0
2014 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 200B
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage - Rated : 50V
Temperature Coefficient : BX
Operating Temperature : -55°C ~ 125°C
Features : Low ESL
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 1111 (2828 Metric)
Size / Dimension : 0.110" L x 0.110" W (2.79mm x 2.79mm)
Height - Seated (Max) : -
Thickness (Max) : 0.102" (2.59mm)
Lead Spacing : -
Lead Style : -
0
4613 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC 200B
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±20%
Voltage - Rated : 50V
Temperature Coefficient : BX
Operating Temperature : -55°C ~ 125°C
Features : Low ESL
Ratings : -
Applications : Bypass, Decoupling
Failure Rate : -
Mounting Type : Surface Mount, MLCC
Package / Case : 1111 (2828 Metric)
Size / Dimension : 0.110" L x 0.110" W (2.79mm x 2.79mm)
Height - Seated (Max) : -
Thickness (Max) : 0.102" (2.59mm)
Lead Spacing : -
Lead Style : -
0
691 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC504
Part Status : Active
Resistance : 100 Ohms
Tolerance : ±1%
Power (Watts) : 0.125W, 1/8W
Composition : Thin Film
Features : RF, High Frequency
Temperature Coefficient : -50/ -150ppm/°C
Operating Temperature : -40°C ~ 125°C
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.024" (0.60mm)
Number of Terminations : 2
Failure Rate : -
0
3173 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC504
Part Status : Active
Resistance : 200 Ohms
Tolerance : ±1%
Power (Watts) : 0.125W, 1/8W
Composition : Thin Film
Features : RF, High Frequency
Temperature Coefficient : -50/ -150ppm/°C
Operating Temperature : -40°C ~ 125°C
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.024" (0.60mm)
Number of Terminations : 2
Failure Rate : -
0
1351 in stock

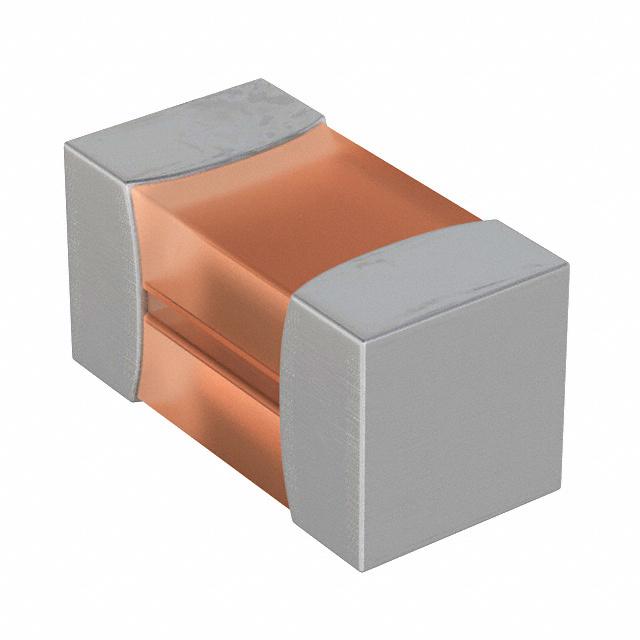

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC504
Part Status : Active
Resistance : 25 Ohms
Tolerance : ±1%
Power (Watts) : 0.125W, 1/8W
Composition : Thin Film
Features : RF, High Frequency
Temperature Coefficient : -50/ -150ppm/°C
Operating Temperature : -40°C ~ 125°C
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.024" (0.60mm)
Number of Terminations : 2
Failure Rate : -
0
5387 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATC504
Part Status : Active
Resistance : 50 Ohms
Tolerance : ±1%
Power (Watts) : 0.125W, 1/8W
Composition : Thin Film
Features : RF, High Frequency
Temperature Coefficient : -50/ -150ppm/°C
Operating Temperature : -40°C ~ 125°C
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.024" (0.60mm)
Number of Terminations : 2
Failure Rate : -
0
38839 in stock

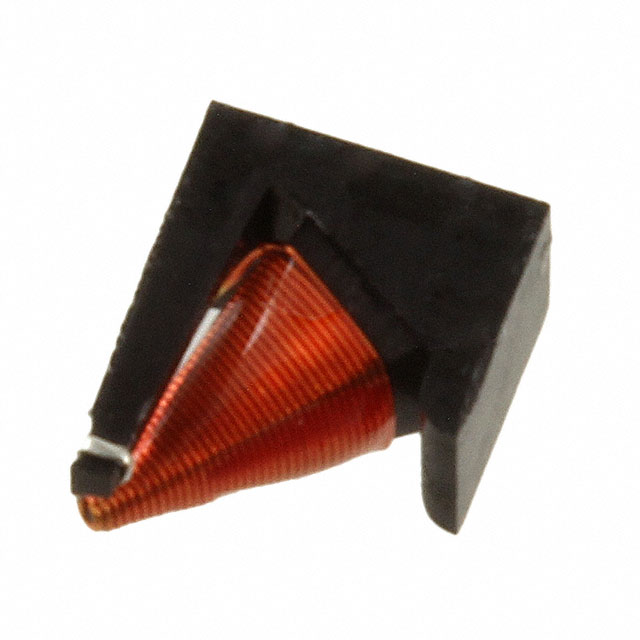

American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 470nH
Tolerance : ±10%
Current Rating : 815mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 190 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
945 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 700nH
Tolerance : ±10%
Current Rating : 619mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 320 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
208 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 1.1µH
Tolerance : ±10%
Current Rating : 438mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 640 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
267 in stock
American Technical Ceramics
Manufacturer : American Technical Ceramics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 506WLS
Part Status : Active
Type : Wirewound
Material - Core : Iron Powder
Inductance : 2µH
Tolerance : ±10%
Current Rating : 277mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.127" L x 0.080" W (3.23mm x 2.03mm)
Height - Seated (Max) : 0.105" (2.67mm)
0
351 in stock
