- Switches
- Magnetic, Reed Switches
Part Number
Manufacturer
Description
Unit Price
In Stock
MK24-B-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 37 ~ 71AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 37 ~ 71AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK24-B-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 37 ~ 71AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 37 ~ 71AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
4954 in stock

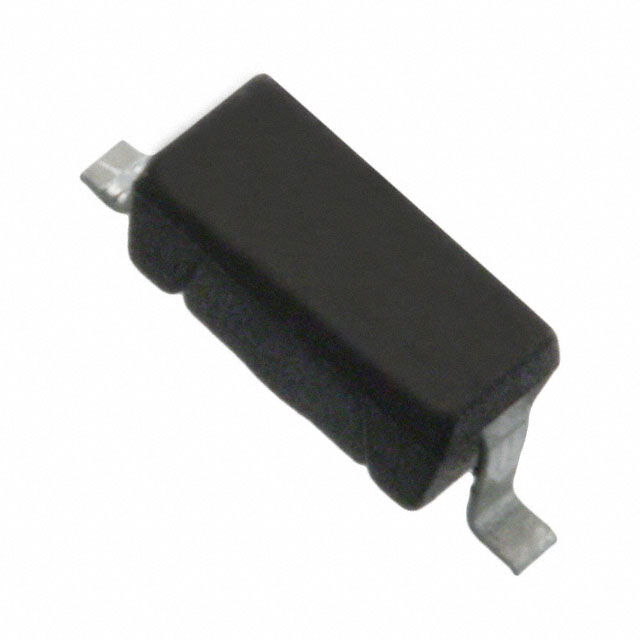

MK24-B-2-OE
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NC
Operate Range : 20 ~ 40AT
Release Range : 10 ~ 35AT
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.283" (7.20mm)
Size - Body : 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 115°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NC
Operate Range : 20 ~ 40AT
Release Range : 10 ~ 35AT
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.283" (7.20mm)
Size - Body : 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 115°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK24-B-3
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 33 ~ 67AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 33 ~ 67AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
126 in stock

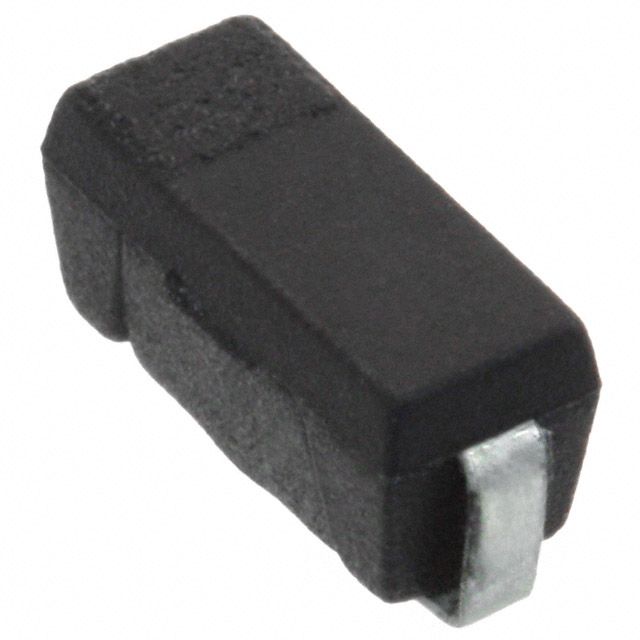

MK24-B-3-OE
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NC
Operate Range : 20 ~ 40AT
Release Range : 10 ~ 35AT
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 115°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NC
Operate Range : 20 ~ 40AT
Release Range : 10 ~ 35AT
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.25ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 115°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
2500 in stock

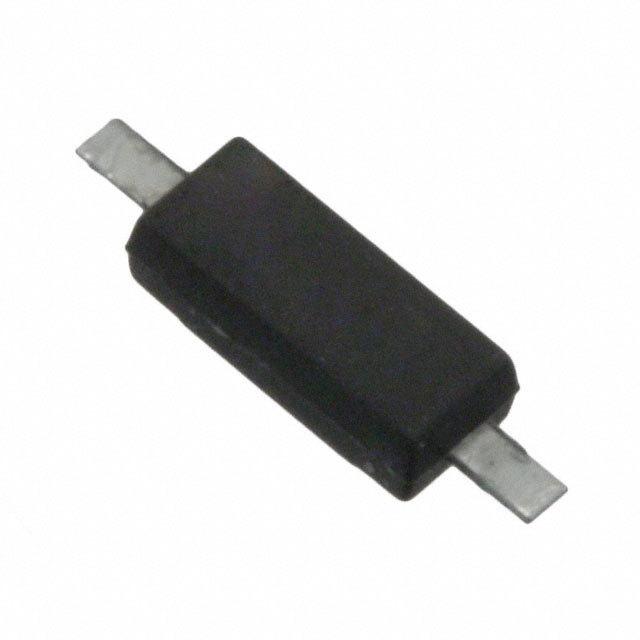

MK24-C-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 50 ~ 86AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 50 ~ 86AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

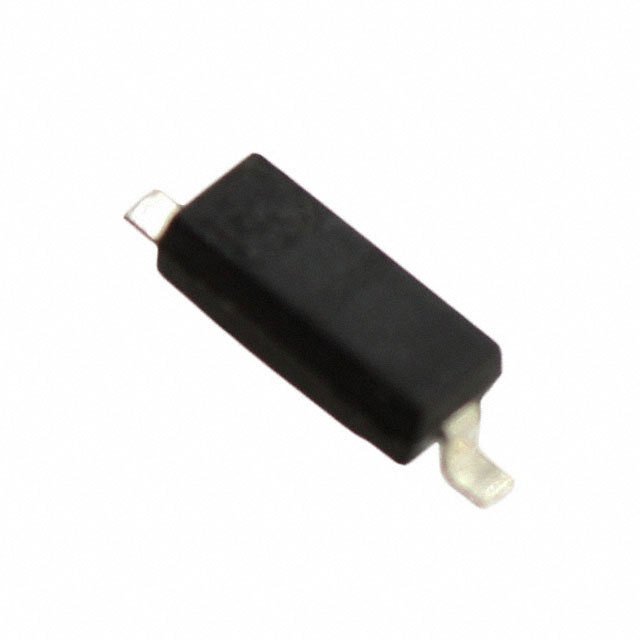

MK24-C-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 50 ~ 86AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 50 ~ 86AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

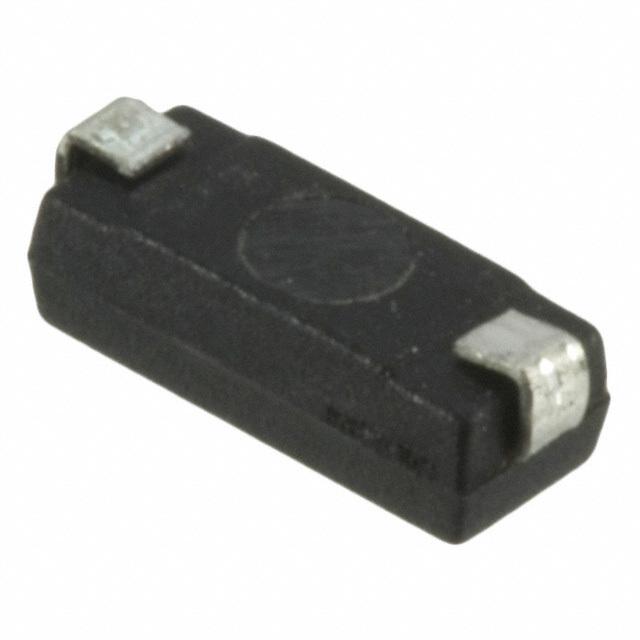

MK24-C-3
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 40 ~ 83AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 40 ~ 83AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
1682 in stock
MK24-D-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 61 ~ 100AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 61 ~ 100AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
MK24-D-2
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 60 ~ 100AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 60 ~ 100AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.272" (6.91mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
1300 in stock
MK24-D-3
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 46 ~ 90AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 46 ~ 90AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
10812 in stock
MK24-E-1
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : -
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : -
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.303" (7.70mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
