- Switches
- Magnetic, Reed Switches
Part Number
Manufacturer
Description
Unit Price
In Stock

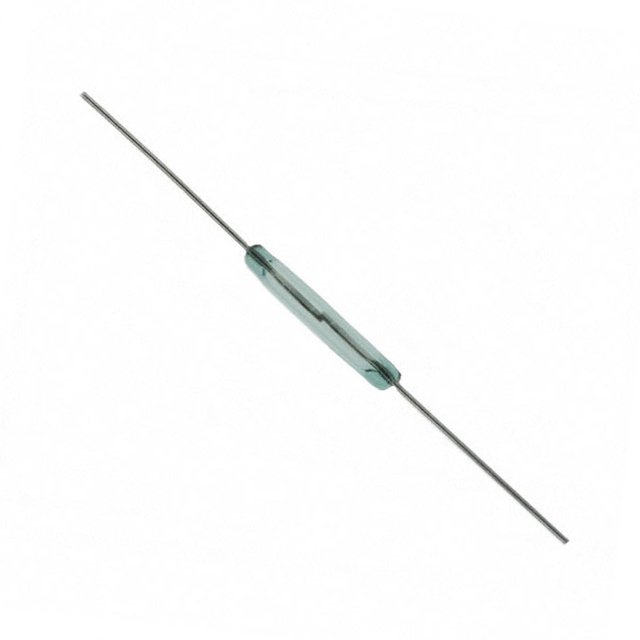

FLEX-14-35-40
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : FLEX-14
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 35 ~ 40AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.55ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.090" Dia x 0.551" L (2.28mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1A (DC)
Packaging : Bulk
Series : FLEX-14
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 35 ~ 40AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.55ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.090" Dia x 0.551" L (2.28mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1A (DC)
0
856 in stock
FLEX-14-7-10
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : FLEX-14
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 7 ~ 10AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.55ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.090" Dia x 0.551" L (2.28mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1A (DC)
Packaging : Bulk
Series : FLEX-14
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 7 ~ 10AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.55ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.090" Dia x 0.551" L (2.28mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1A (DC)
0
754 in stock
FR2024
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock

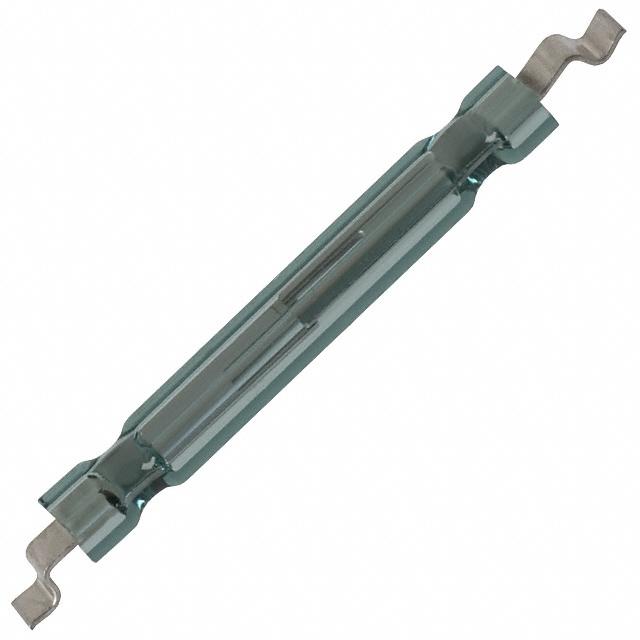

FR2025
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2026
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2249-SURFACEMOUNT
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock

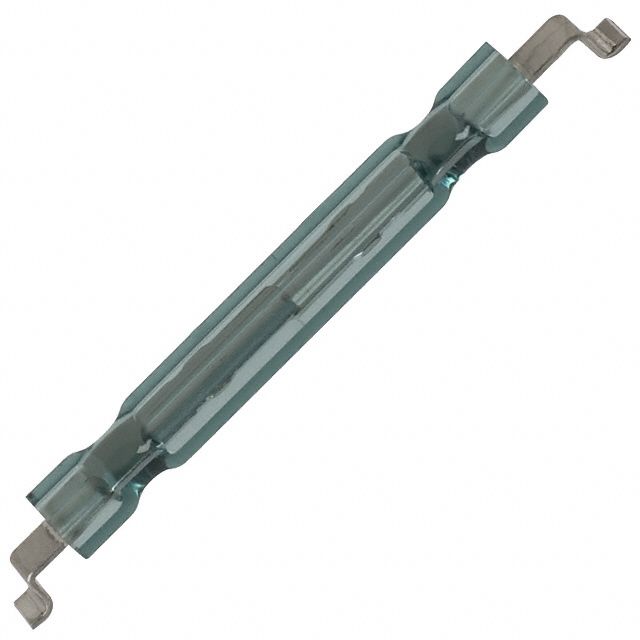

FR2259-SURFACEMOUNT
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2282
Coto Technology
Manufacturer : Coto Technology
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Tape & Reel (TR)
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.770" (19.56mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : 0.080" (2.03mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock

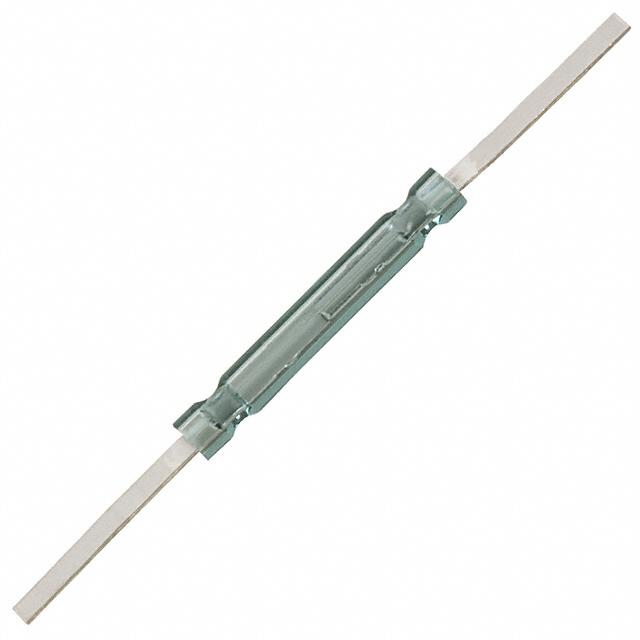

FR2S1015
Coto Technology
Manufacturer : Coto Technology
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : 5 ~ 15AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : 5 ~ 15AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2S1020
Coto Technology
Manufacturer : Coto Technology
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : 5 ~ 20AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : 5 ~ 20AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2S1520
Coto Technology
Manufacturer : Coto Technology
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : 5 ~ 20AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : 5 ~ 20AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
FR2S1525
Coto Technology
Manufacturer : Coto Technology
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 25AT
Release Range : 5 ~ 25AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
Packaging : Bulk
Series : FR2
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 25AT
Release Range : 5 ~ 25AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.360" (34.54mm)
Size - Body : 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
