Rectangular Connectors - Headers, Male Pins Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

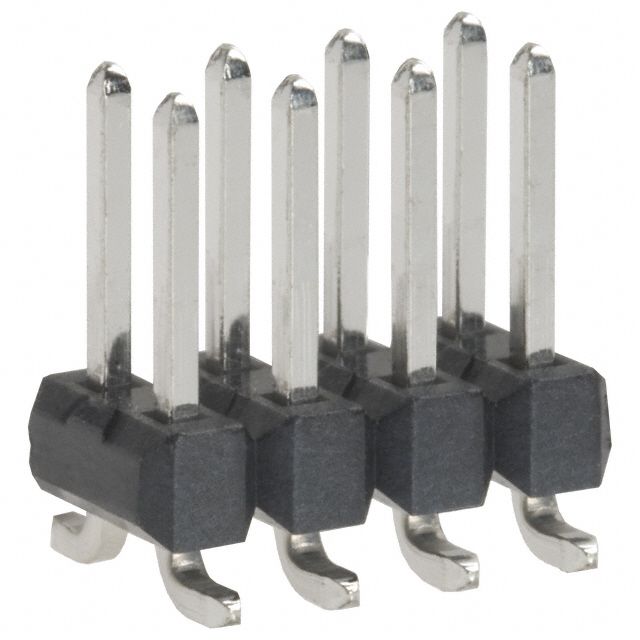

0015912080

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

51344 in stock

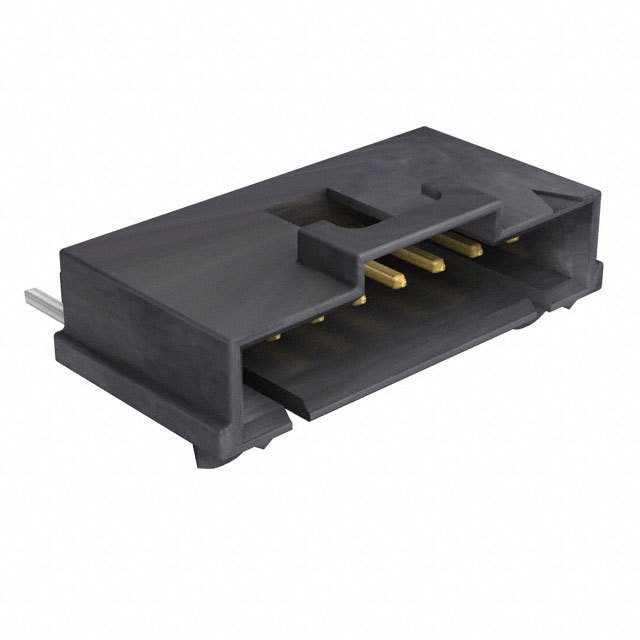

0015912085

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

497 in stock

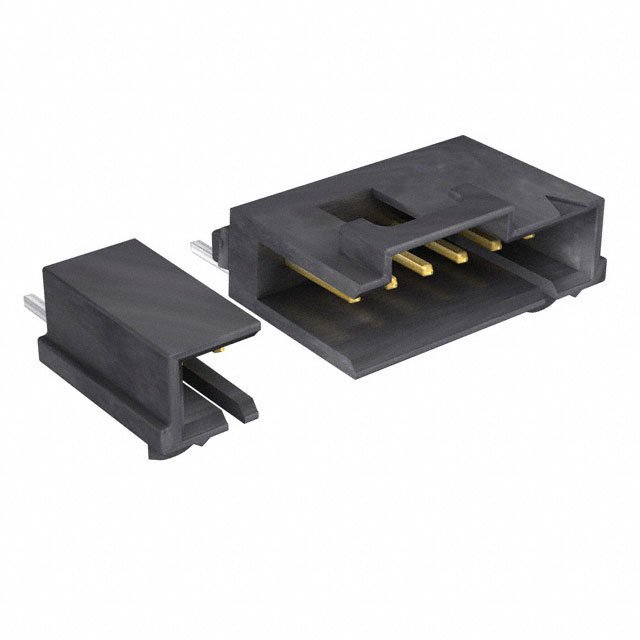

0015912095

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

160 in stock

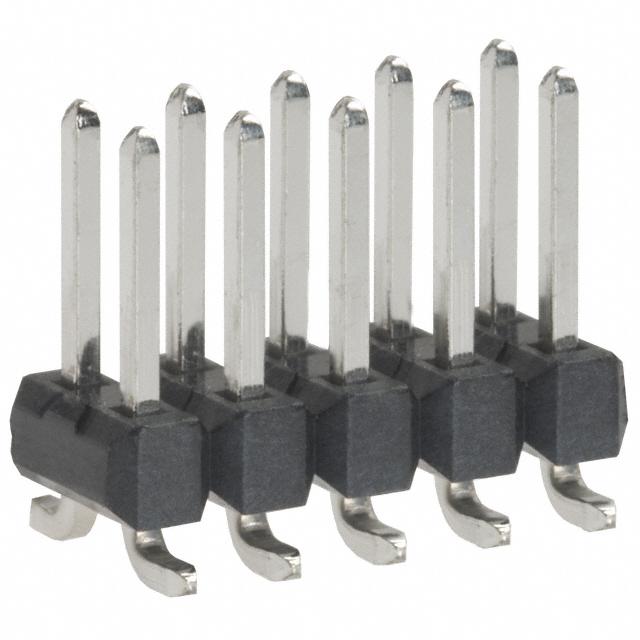

0015912100

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

4879 in stock

0015912105

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

95 in stock

0015912120

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

2988 in stock

0015912125

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

287 in stock

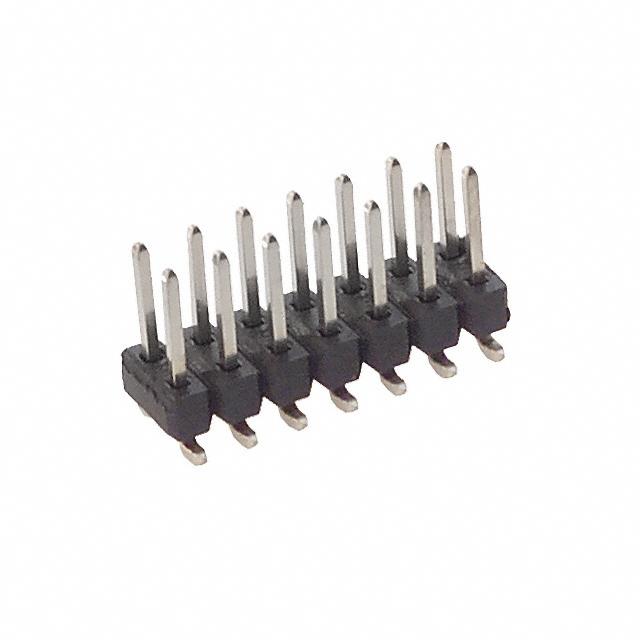

0015912140

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

4336 in stock

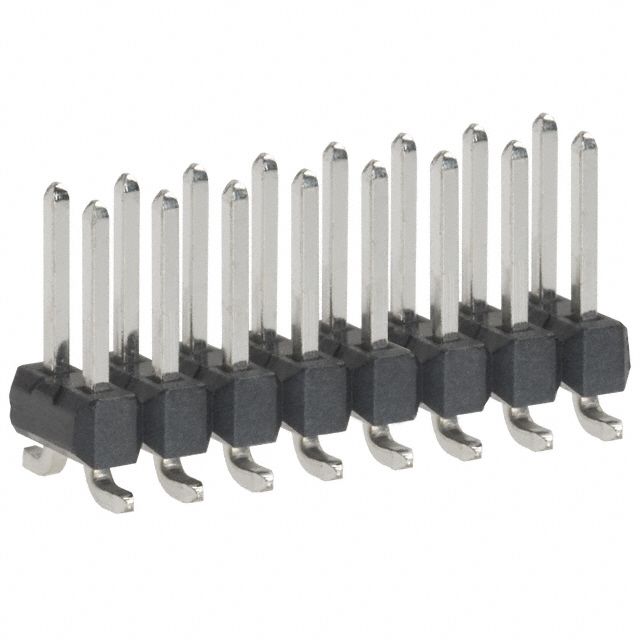

0015912160

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1874 in stock

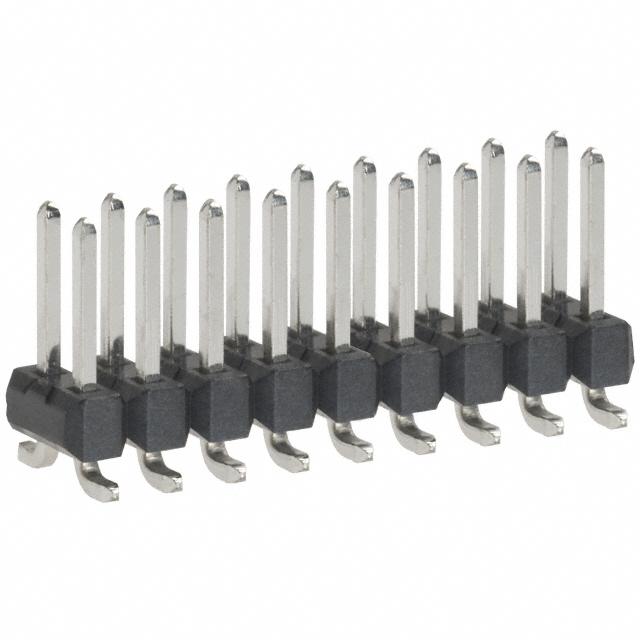

0015912180

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 18
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

3241 in stock

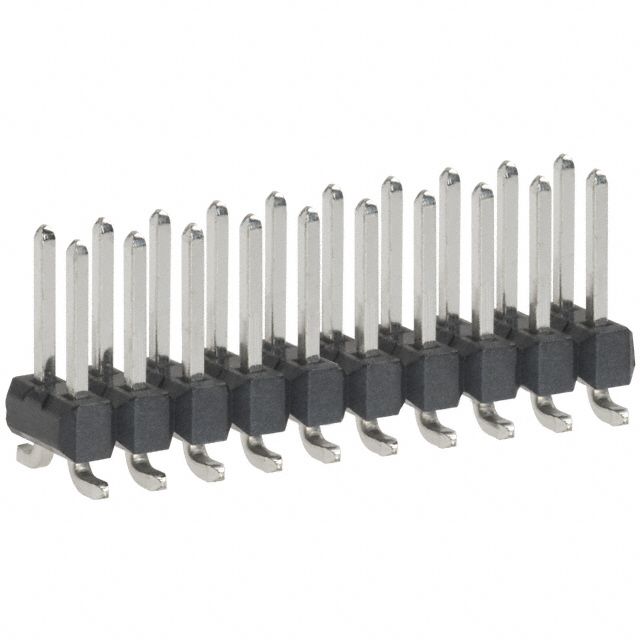

0015912200

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

10476 in stock

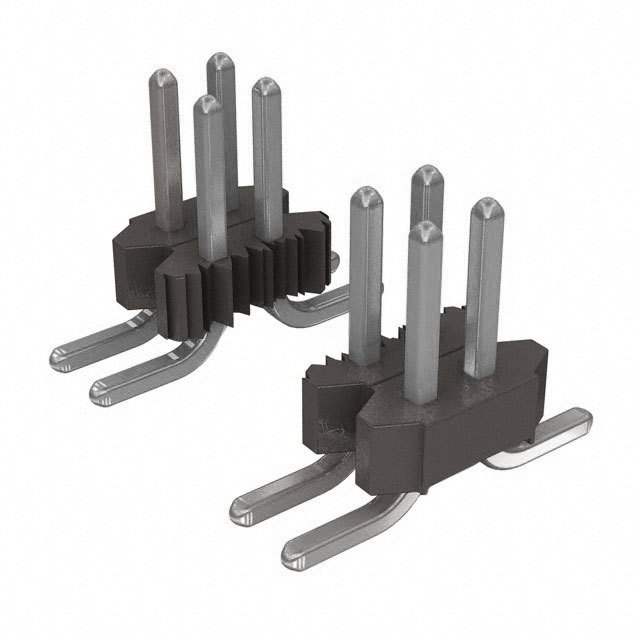

0015912240

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 24
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

100 in stock
