- Capacitors
- Aluminum - Polymer Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
RNS1D220MDS1JT
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 190mA @ 120Hz
Ripple Current @ High Frequency : 1.9A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 190mA @ 120Hz
Ripple Current @ High Frequency : 1.9A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
349 in stock

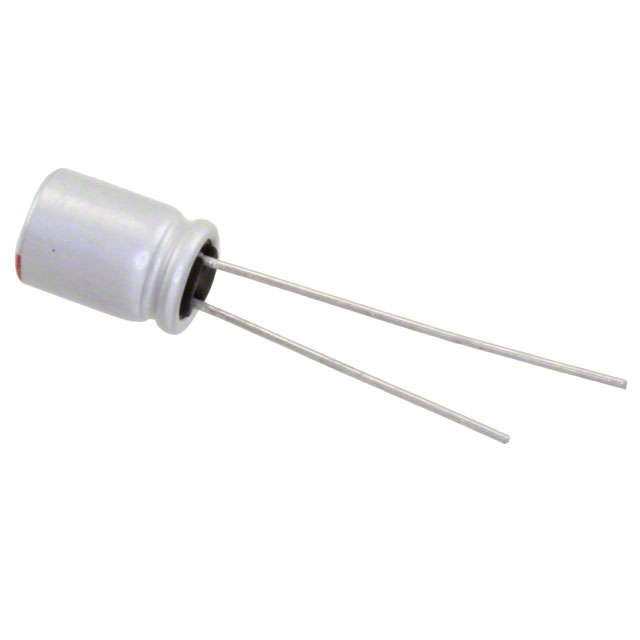

RNS1D330MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1676 in stock
RNS1D330MDS1JX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
7315 in stock
RNS1D470MDN1KX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 340mA @ 120Hz
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 340mA @ 120Hz
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1037 in stock
RNS1D680MDN1KX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 360mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 360mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
718 in stock

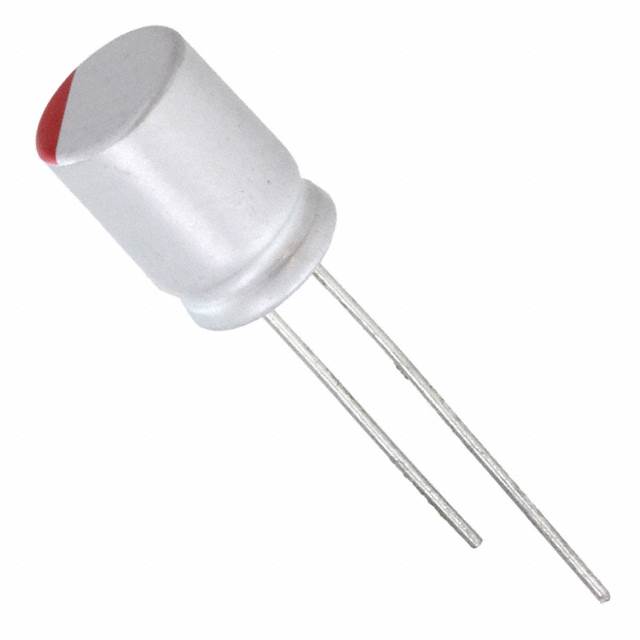

RNS1E100MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 63 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 170mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 63 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 170mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
335 in stock
RNS1E100MDS1JT
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 63 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 170mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 63 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 170mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1462 in stock
RNS1E101MDN1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 4.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 4.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
200 in stock

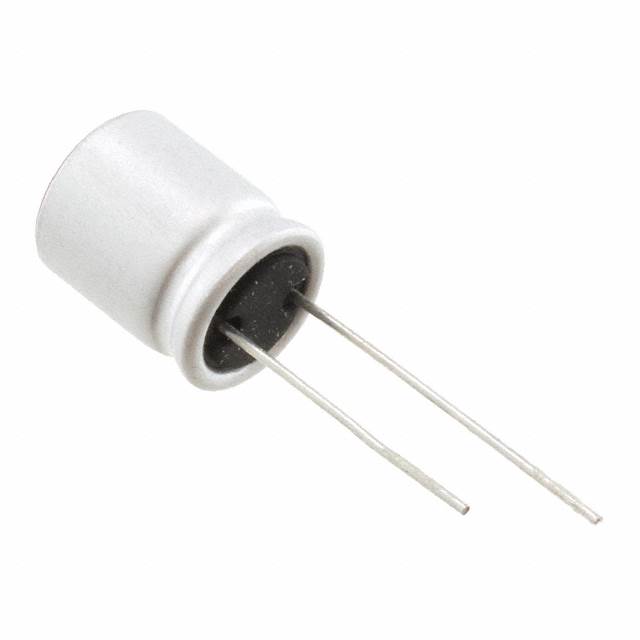

RNS1E101MDN1PH
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 4.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 4.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2065 in stock

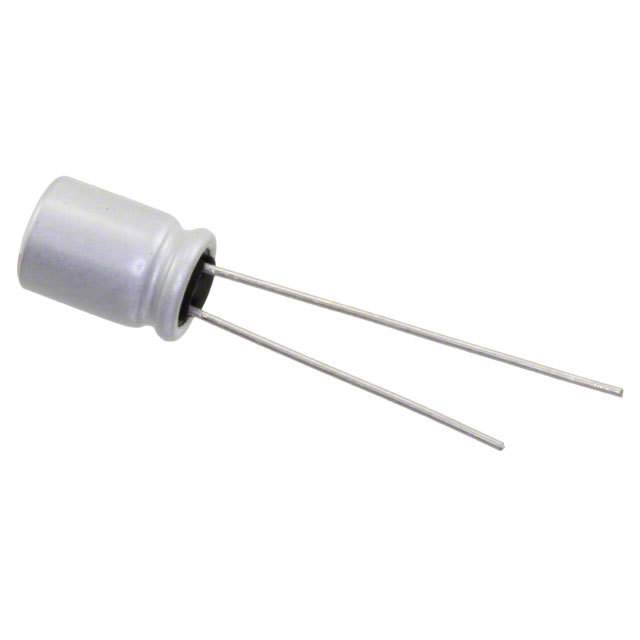

RNS1E150MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
416 in stock
RNS1E150MDS1JX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 49 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 220mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1609 in stock
RNS1E220MDN1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 340mA @ 120Hz
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNS
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 340mA @ 120Hz
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
