- Capacitors
- Aluminum - Polymer Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
RNE0J122MDN1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 570mA @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 570mA @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
600 in stock

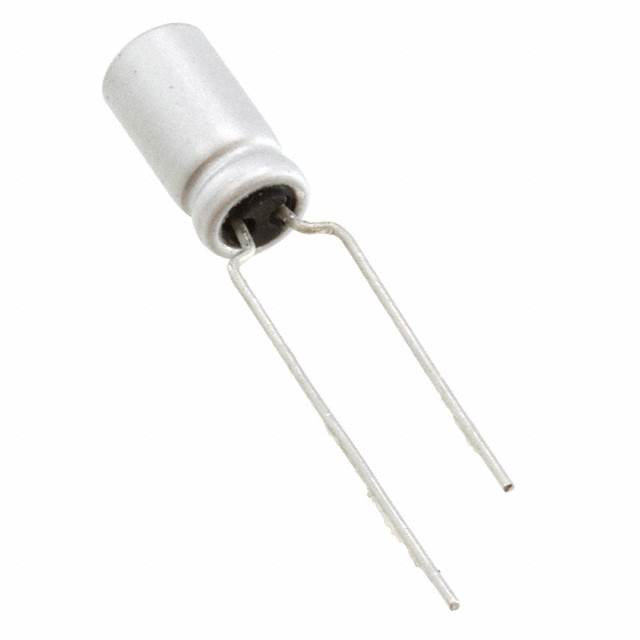

RNE0J122MDN1PX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 570mA @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 570mA @ 120Hz
Ripple Current @ High Frequency : 5.7A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4408 in stock
RNE0J271MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 11 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 360mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : 0.079" (2.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 11 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 360mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : 0.079" (2.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1351 in stock
RNE1A221MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
79 in stock

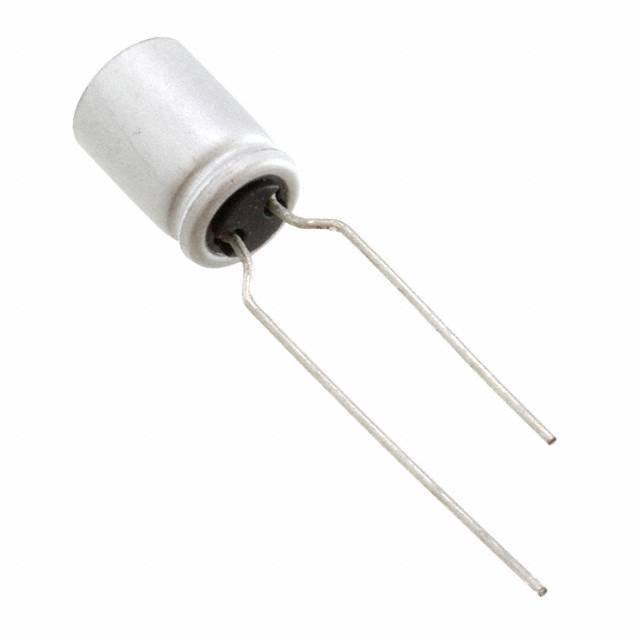

RNE1A221MDS1PX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
31197 in stock

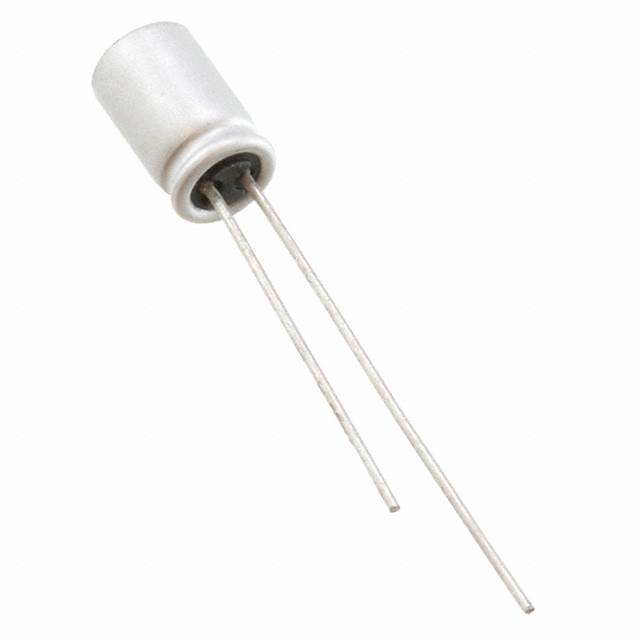

RNE1C101MDS1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 230mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : 0.079" (2.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 230mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : 0.079" (2.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1700 in stock

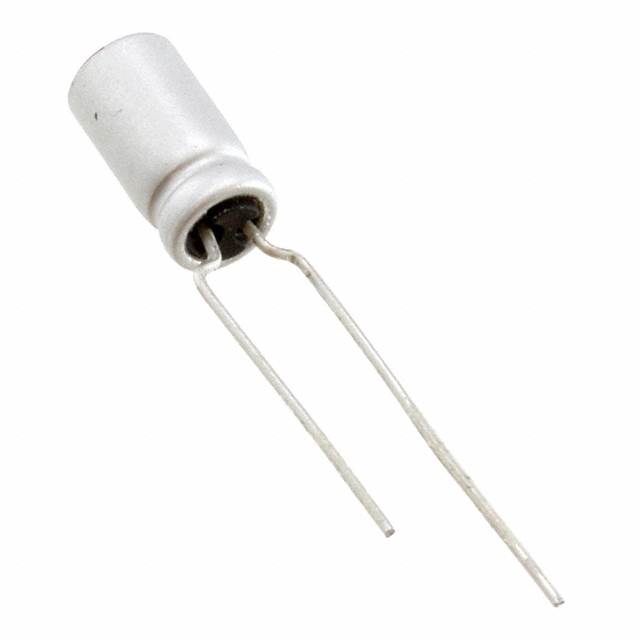

RNE1C101MDS1PX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 230mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 230mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4229 in stock

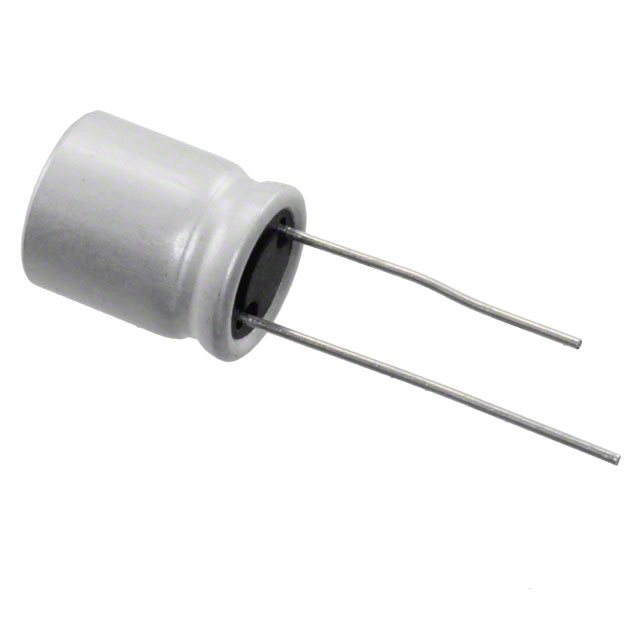

RNE1C102MDN1PH
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
371 in stock
RNE1C102MDNASQ
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock
RNE1C102MDNASQPH
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 6.1A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock
RNE1C471MDN1
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 540mA @ 120Hz
Ripple Current @ High Frequency : 5.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 540mA @ 120Hz
Ripple Current @ High Frequency : 5.4A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2216 in stock

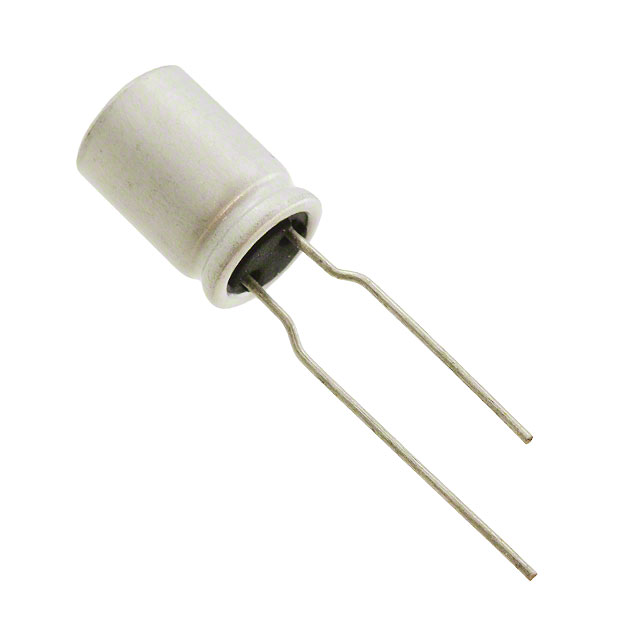

RNE1C471MDN1PX
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 540mA @ 120Hz
Ripple Current @ High Frequency : 5.4A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FPCAP, RNE
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 540mA @ 120Hz
Ripple Current @ High Frequency : 5.4A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
15471 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
