Wurth Electronics
- Wurth Electronics eiSos GmbH & Co. KG is a manufacturer of electronic and electromechanical components for the electronics industry. Production sites in Europe, Asia and North America supply a growing number of customers worldwide. The product program encompasses EMC components, inductors, transformers, HF components, varistors, capacitors, power modules, LEDs, plug connectors, power supply elements, wireless power coils, switches, connection technology and fuse holders. Wurth Electronic eiSos GmbH & Co. KG, together with its specialized affiliated companies, form the Wurth Electronic eiSos Group.
Wurth Electronics eiSos GmbH & Co. KG (Focus: standard components), Wurth Electronics iBE GmbH (Focus: customized passive components for the automotive industry), Wurth Electronics Midcom Inc. (Focus: transformers and custom magnetics), Wurth Electronics Stelvio Kontek S.p.A. (Focus: customized plug connectors), AMBER wireless GmbH (Focus: wireless data transmission solutions) and IQD Frequency Products Ltd (Focus: frequency-control components) form the Wurth Electronics eiSos Group. The group of companies with 6,700 employees generated sales of approx. € 653 million in 2017. The Wurth Electronics eiSos Group is one of the biggest European manufacturers of passive components and operates in 50 countries.
Through its technology partnership with the Audi Sport ABT Schaeffler Formula E Team and its support for the Formula E racing series, the Group demonstrates its innovative strength in eMobility. Other global growth markets, such as Energy Harvesting, Internet of Things and Wireless Communication, are addressed with innovative products.
The Wurth Electronics eiSos Group is part of the Wurth Group, the world market leader for assembly and fastening technology.
Part Number
Manufacturer
Description
Unit Price
In Stock

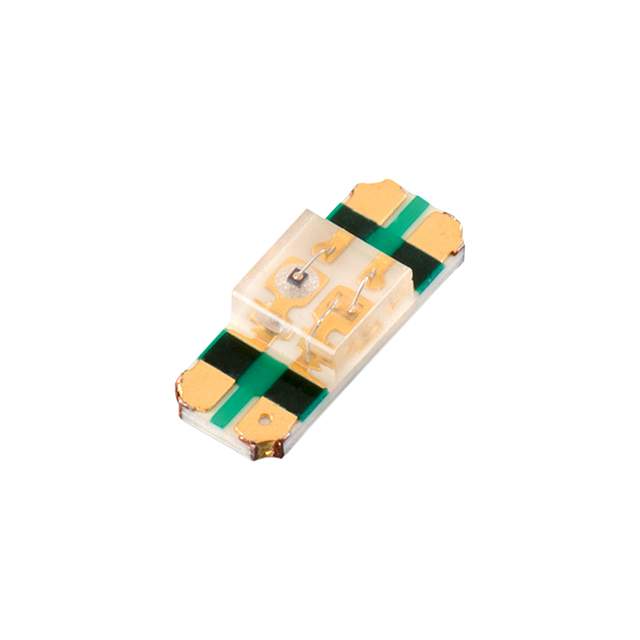

Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SBRW
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 285mcd Green, 180mcd Red
Lens Style : Square with Flat Top
Lens Size : 1.20mm
Voltage - Forward (Vf) (Typ) : 3.3V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 120°
Mounting Type : Surface Mount, Bottom Entry
Wavelength - Dominant : 525nm Green, 624nm Red
Wavelength - Peak : 520nm Green, 632nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : 4-SMD
Size / Dimension : 3.20mm L x 1.20mm W
Height (Max) : 0.80mm
0
1279 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SBRW
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 170mcd Green, 110mcd Red
Lens Style : Square with Flat Top
Lens Size : 1.20mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 120°
Mounting Type : Surface Mount, Bottom Entry
Wavelength - Dominant : 571nm Green, 624nm Red
Wavelength - Peak : 573nm Green, 632nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : 4-SMD
Size / Dimension : 3.20mm L x 1.20mm W
Height (Max) : 0.80mm
0
5150 in stock

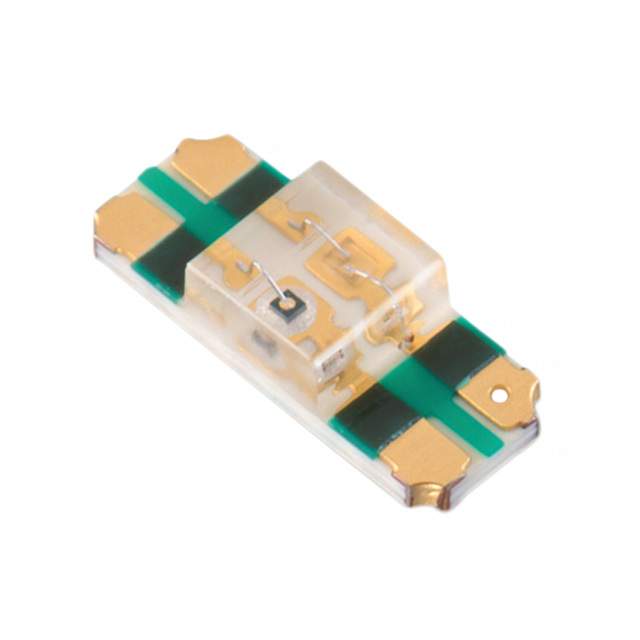

Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SBRW
Part Status : Active
Color : Green, Yellow
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 50mcd
Lens Style : Square with Flat Top
Lens Size : 1.20mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA Green, 20mA Yellow
Viewing Angle : 120°
Mounting Type : Surface Mount, Bottom Entry
Wavelength - Dominant : 571nm
Wavelength - Peak : 573nm
Features : -
Package / Case : 1205 (3212 Metric)
Supplier Device Package : 1205
Size / Dimension : 3.20mm L x 1.20mm W
Height (Max) : 0.80mm
0
5618 in stock

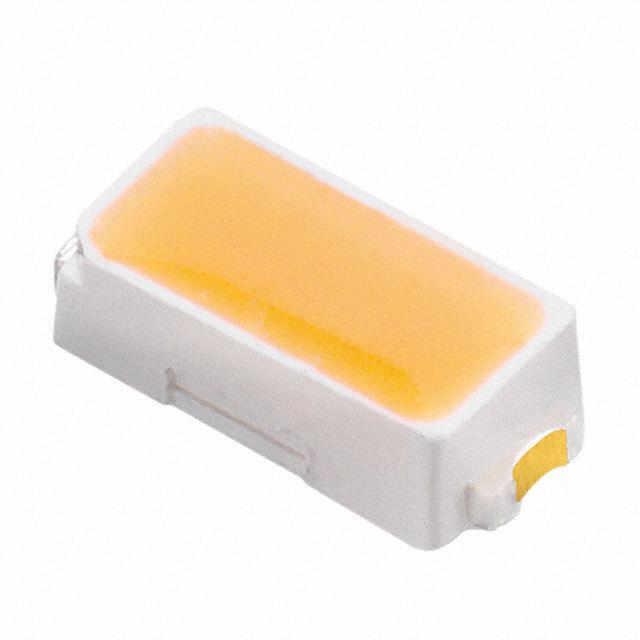

Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Active
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 7 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 117 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 40mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1206 (3014 Metric)
Supplier Device Package : 3014
Size / Dimension : 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
1150 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 7 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 117 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 40mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1206 (3014 Metric)
Supplier Device Package : 3014
Size / Dimension : 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
100 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 7.5 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 125 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 40mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1206 (3014 Metric)
Supplier Device Package : 3014
Size / Dimension : 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
3008 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Active
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 8 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 133 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 40mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1206 (3014 Metric)
Supplier Device Package : 3014
Size / Dimension : 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
25068 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Active
Color : White, Cool
CCT (K) : 6000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 8 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 133 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 40mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1206 (3014 Metric)
Supplier Device Package : 3014
Size / Dimension : 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
44286 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 20 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 104 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 100mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1208 (3020 Metric)
Supplier Device Package : 3022
Size / Dimension : 0.118" L x 0.083" W (3.00mm x 2.10mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
100 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 20 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 104 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 100mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1208 (3020 Metric)
Supplier Device Package : 3022
Size / Dimension : 0.118" L x 0.083" W (3.00mm x 2.10mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
100 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 22 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 115 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 100mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1208 (3020 Metric)
Supplier Device Package : 3022
Size / Dimension : 0.118" L x 0.083" W (3.00mm x 2.10mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
1282 in stock
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WL-SWTP
Part Status : Discontinued at
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 22 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 115 lm/W
CRI (Color Rendering Index) : 85 (Typ)
Current - Max : 100mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1208 (3020 Metric)
Supplier Device Package : 3022
Size / Dimension : 0.118" L x 0.083" W (3.00mm x 2.10mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
100 in stock
