Wakefield-Vette
- Established in 1957, Wakefield Engineering designs efficient, affordable and reliable thermal management solutions for a diverse range of commercial, industrial, and military markets. Recognized as a worldwide leader, Wakefield Engineering has grown with the market while expanding into others, responding to technological advances and anticipating industry demands. Wakefield Engineering is a wholly owned subsidiary of Alpha Technologies Group, Inc.
Part Number
Manufacturer
Description
Unit Price
In Stock

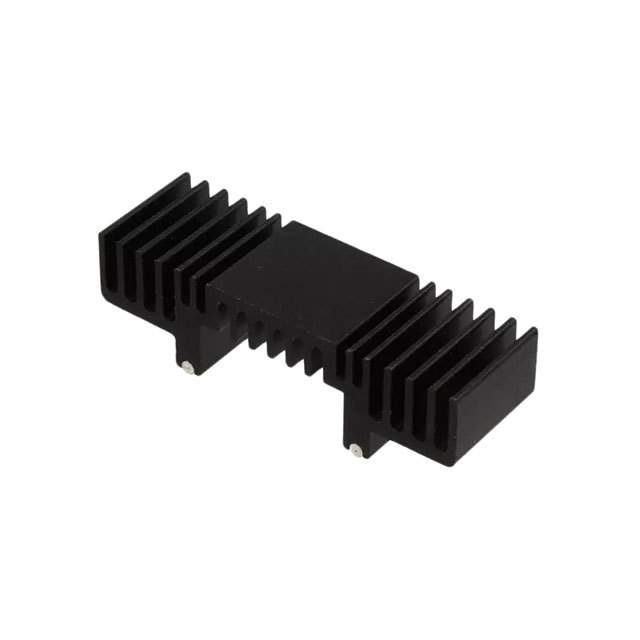

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 219
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.580" (40.13mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 7.0W @ 35°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
867 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 219
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.580" (40.13mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 7.0W @ 35°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
1486 in stock

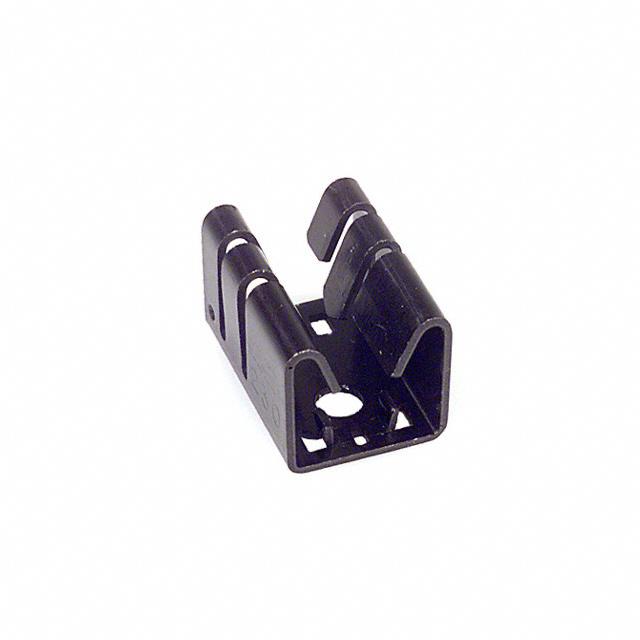

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 230
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.570" (14.47mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 57°C
Thermal Resistance @ Forced Air Flow : 7.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 28.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3465 in stock

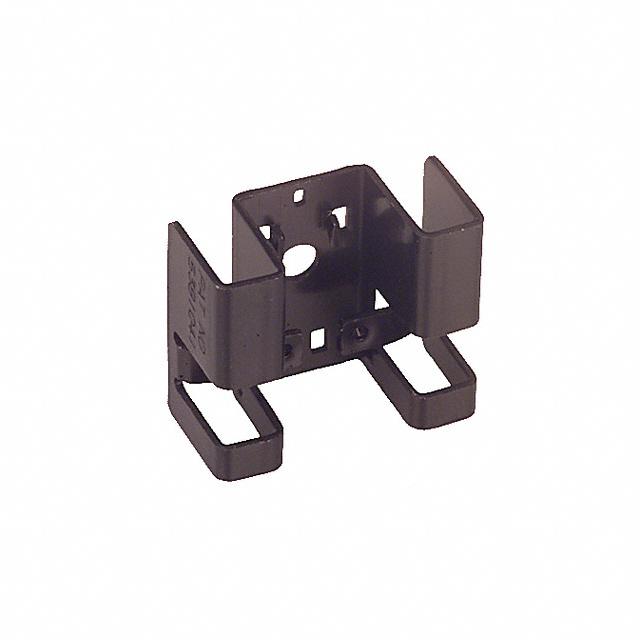

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 235
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.850" (21.59mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.80°C/W @ 400 LFM
Thermal Resistance @ Natural : 20.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5997 in stock

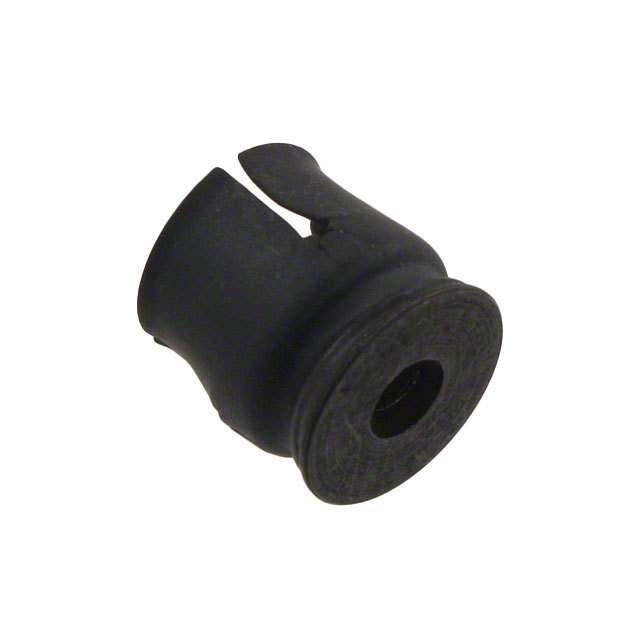

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 260
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Bolt On
Shape : Cylindrical
Length : 0.370" (9.40mm)
Width : 0.380" (9.65mm)
Diameter : 0.290" (7.37mm) ID
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 14.00°C/W
Material : Beryllium Copper
Material Finish : Black Ebonol
0
627 in stock

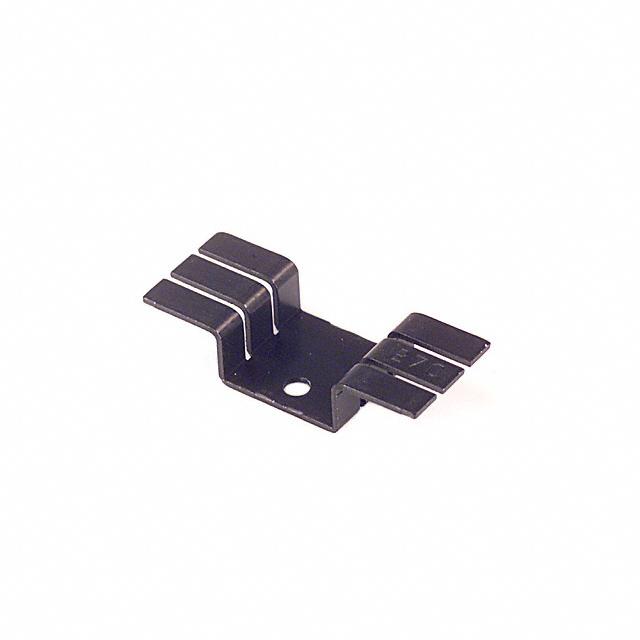

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 270
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 4.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 17.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
583 in stock

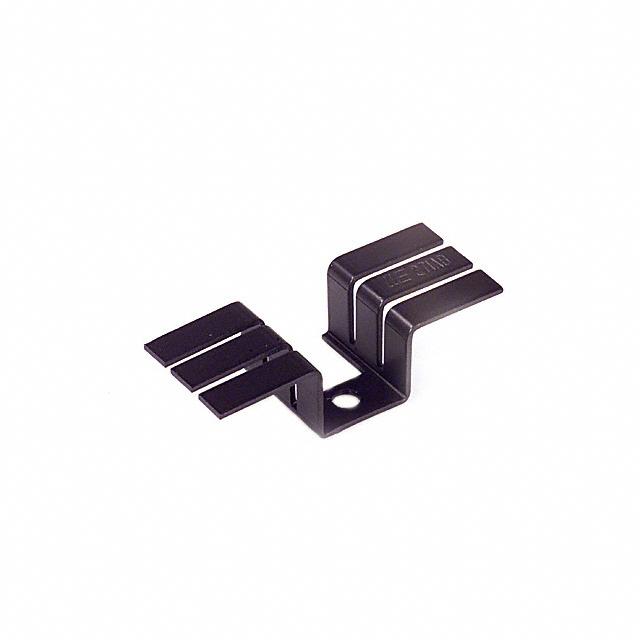

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 271
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 62°C
Thermal Resistance @ Forced Air Flow : 5.10°C/W @ 400 LFM
Thermal Resistance @ Natural : 15.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3547 in stock

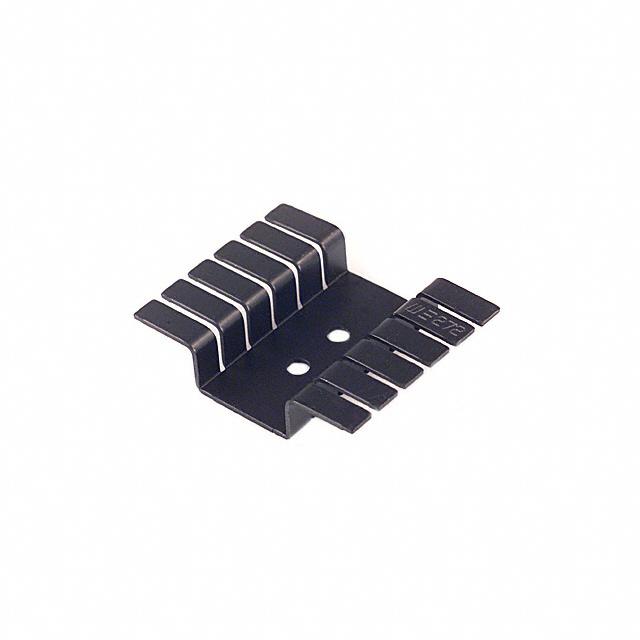

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 272
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 4.0W @ 42°C
Thermal Resistance @ Forced Air Flow : 3.60°C/W @ 400 LFM
Thermal Resistance @ Natural : 10.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4420 in stock

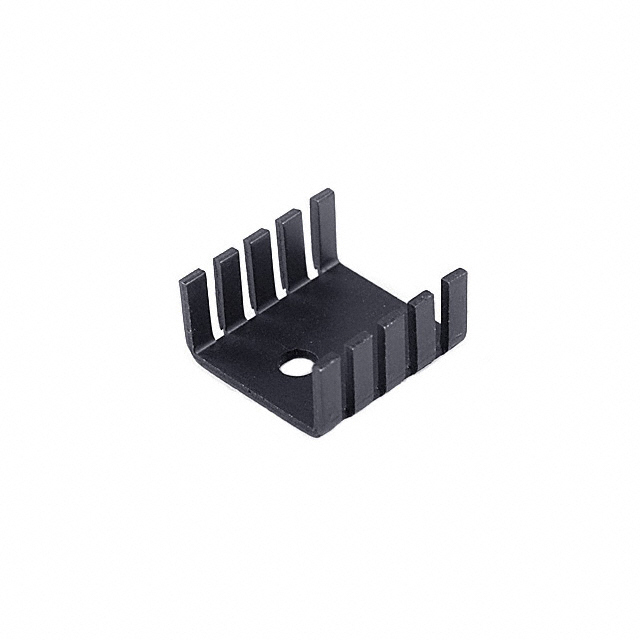

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 273
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-218
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 49°C
Thermal Resistance @ Forced Air Flow : 7.20°C/W @ 400 LFM
Thermal Resistance @ Natural : 24.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4848 in stock

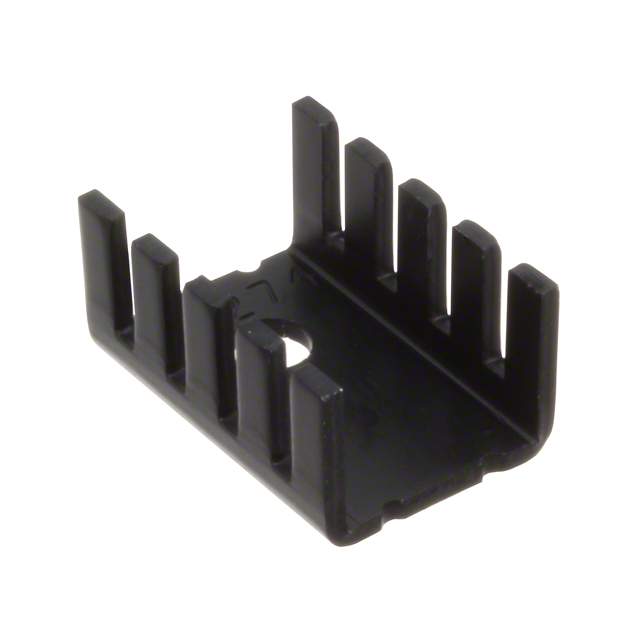

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 274
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 56°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 28.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
14602 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 274
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
16139 in stock

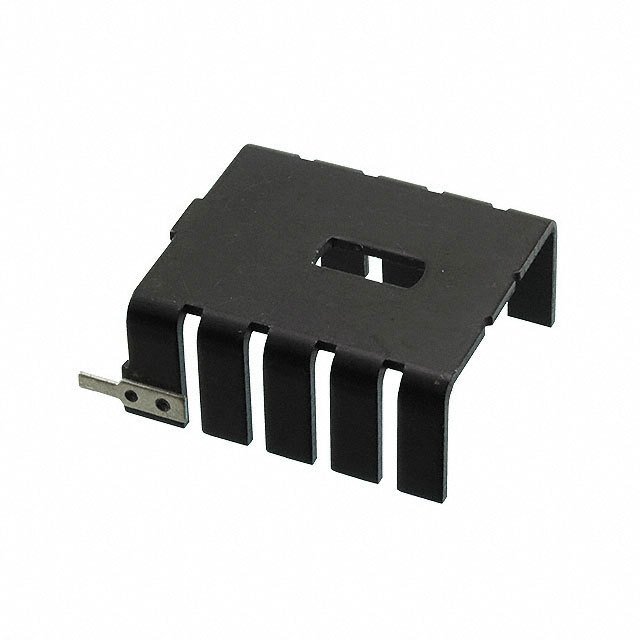

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 287
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 65°C
Thermal Resistance @ Forced Air Flow : 7.80°C/W @ 200 LFM
Thermal Resistance @ Natural : 16.20°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6301 in stock
