- As an independent general trading company that specializes in electronics, Kaga Electronics has been expanding its operations since it first opened its doors in 1968. Their key strengths are the agility to quickly identify new trends and to steadily provide optimal solutions by listening to the voice of the customer. However, they believe there are still many uncharted fields that can benefit from their products and services. In recent years they have actively been engaging in the development of new businesses. They aim to continue to embark on new challenges by leveraging their sales network, the information-gathering capabilities they fostered over many years, and an “out-of-the-box” thinking approach that is unfettered by their existing businesses.

Kaga Electronics’ group network has a global reach, which primarily consists of bases in Japan, other parts of Asia, the US, and Europe. There are more than 50 operating companies in Japan and abroad which carry out the activities of Kaga Electronics, which is a general trading company that specializes in electronics. In addition to procuring electronic parts and semiconductors from manufacturers around the world, we also provide supplementary services to clients to support their planning, development, production, and marketing of electronic devices. Going forward they aim to provide products and services that exceed the expectations of their clients. They look to more-than-satisfy their needs by tapping into the unique strengths and specialized knowledge of group companies and by reaping the benefits of synergies from close-knit mutual support systems.

Part Number
Manufacturer
Description
Unit Price
In Stock

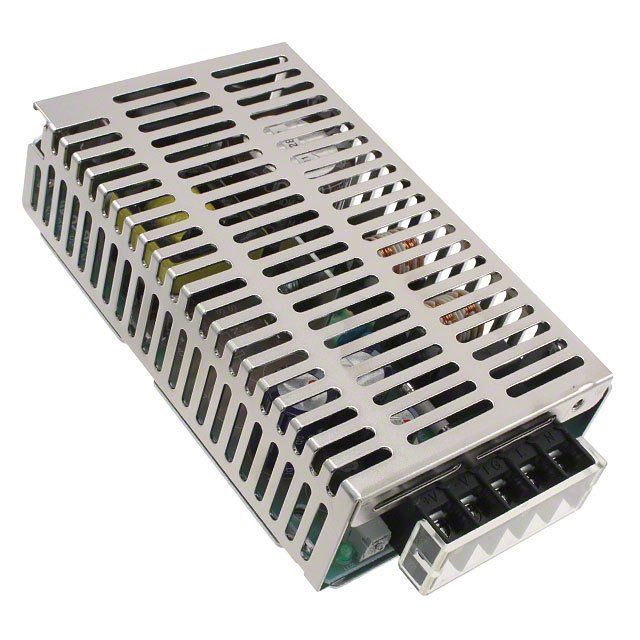

SPN50-24S SPN50-24S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN50 (50W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.1A
Power (Watts) : 50W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : 0°C ~ 60°C
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.30" L x 3.17" W x 1.46" H (134.5mm x 80.5mm x 37.0mm)
0
100 in stock

SPN50-48S SPN50-48S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN50 (50W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.1A
Power (Watts) : 50W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : 0°C ~ 60°C
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.30" L x 3.17" W x 1.46" H (134.5mm x 80.5mm x 37.0mm)
0
100 in stock

SPN75-05S SPN75-05S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 15A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 78%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

SPN75-12S SPN75-12S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 7A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 82%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

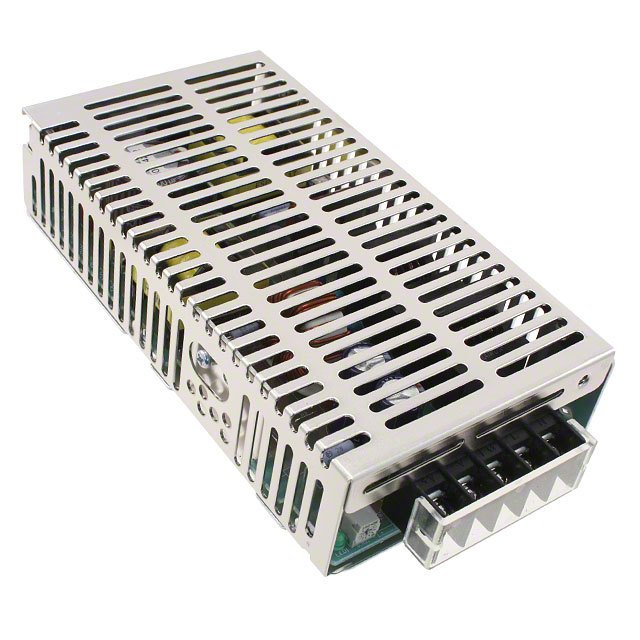

SPN75-12S-M SPN75-12S-M

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 7A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 82%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

SPN75-15S SPN75-15S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5.2A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

SPN75-24S SPN75-24S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.2A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

SPN75-48S SPN75-48S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPN75 (75W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.6A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 3.47" W x 1.52" H (162.0mm x 88.0mm x 38.5mm)
0
100 in stock

SPU10-103(7.5V 1.3/3.5/9.5,C+) SPU10-103(7.5V 1.3/3.5/9.5,C+)

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SPU10
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1.2A
Power (Watts) : 9W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 70%
Operating Temperature : 0°C ~ 70°C
Output Connector : Barrel Plug, 1.3mm I.D. x 3.5mm O.D. x 9.5mm
Size / Dimension : 1.08" L x 1.73" W x 2.20" H (27.5mm x 44.0mm x 56.0mm)
Approvals : CE, cULus
0
100 in stock

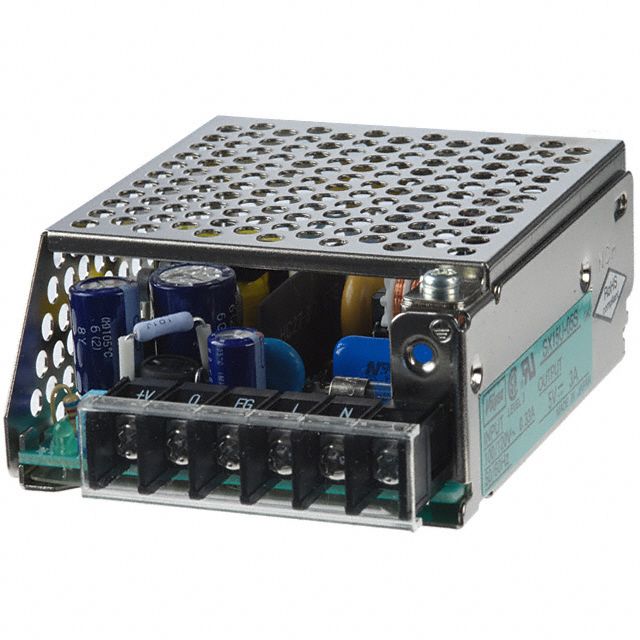

SX15U-05S SX15U-05S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SX15U (15W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 132 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : 15W
Applications : ITE (Commercial)
Voltage - Isolation : 2kV
Efficiency : 73%
Operating Temperature : 0°C ~ 60°C (With Derating)
Features : Adjustable Output
Mounting Type : Chassis Mount
Size / Dimension : 3.31" L x 2.72" W x 1.34" H (84.0mm x 69.0mm x 34.0mm)
0
100 in stock

SX15U-12S SX15U-12S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SX15U (15W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 132 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.3A
Power (Watts) : 15W
Applications : ITE (Commercial)
Voltage - Isolation : 2kV
Efficiency : 76%
Operating Temperature : 0°C ~ 60°C
Features : Adjustable Output
Mounting Type : Chassis Mount
Size / Dimension : 3.31" L x 2.72" W x 1.34" H (84.0mm x 69.0mm x 34.0mm)
0
100 in stock

SX15U-15S SX15U-15S

Furuno (Kaga Electronics USA)
Manufacturer : Kaga Electronics USA
Series : SX15U (15W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 132 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A
Power (Watts) : 15W
Applications : ITE (Commercial)
Voltage - Isolation : 2kV
Efficiency : 76%
Operating Temperature : 0°C ~ 60°C
Features : Adjustable Output
Mounting Type : Chassis Mount
Size / Dimension : 3.31" L x 2.72" W x 1.34" H (84.0mm x 69.0mm x 34.0mm)
0
100 in stock
