Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 12.5% @ 16mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 500mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SMD, Gull Wing
Supplier Device Package : 16-SMD
0
1000 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 250V
Static dV/dt (Min) : 10kV/µs (Typ)
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 100µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, UR, VDE
0
254 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 30mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, CSA, cUR, UR, VDE
0
2599 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 15mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, CSA, cUR, UR, VDE
0
1936 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, CSA, cUR, UR, VDE
0
74 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, cUR, FIMKO, UR, VDE
0
95 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, CSA, cUR, UR, VDE
0
1907 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 400V
Static dV/dt (Min) : 10V/µs (Typ)
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 200µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 80mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CQC, CSA, cUR, UR, VDE
0
515 in stock

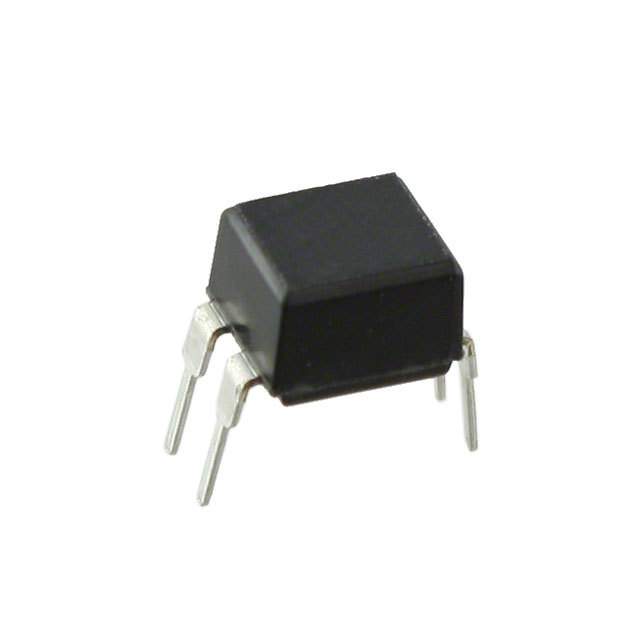

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 20% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
3132 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 600% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -, 250µs
Rise / Fall Time (Typ) : 300µs, -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 100mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
2582 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 600% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -, 250µs
Rise / Fall Time (Typ) : 300µs, -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 100mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1998 in stock

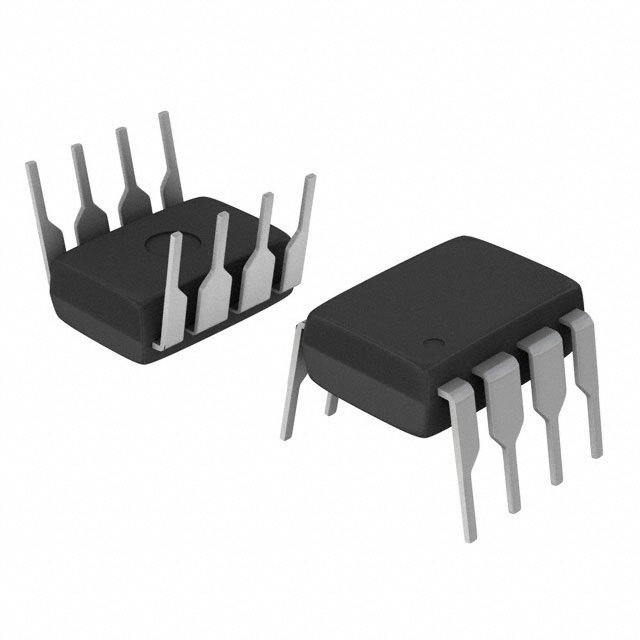

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2370 in stock
