TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of OV14ZWD-1

OV14ZWD-1

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5400K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 350 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 50 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OV14ZWD-2

OV14ZWD-2

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5400K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 510 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 49 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

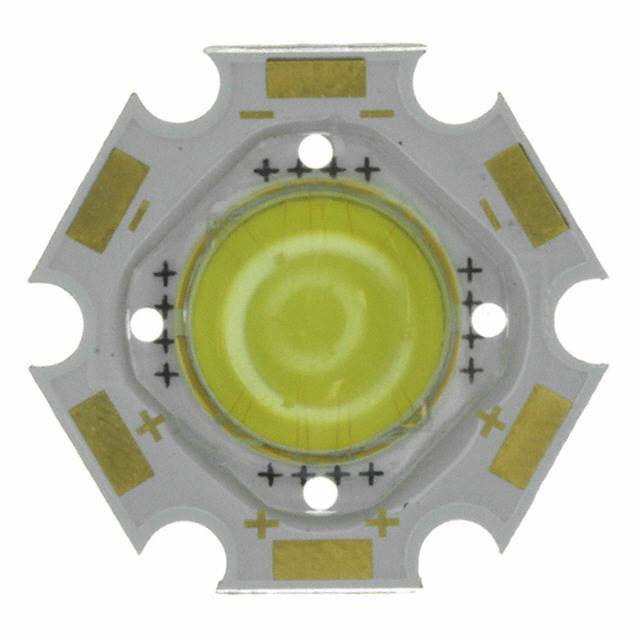

Picture of OV14ZWD-3

OV14ZWD-3

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5400K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 650 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 46 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OV14ZWW-1

OV14ZWW-1

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 300 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OV14ZWW-2

OV14ZWW-2

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 450 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

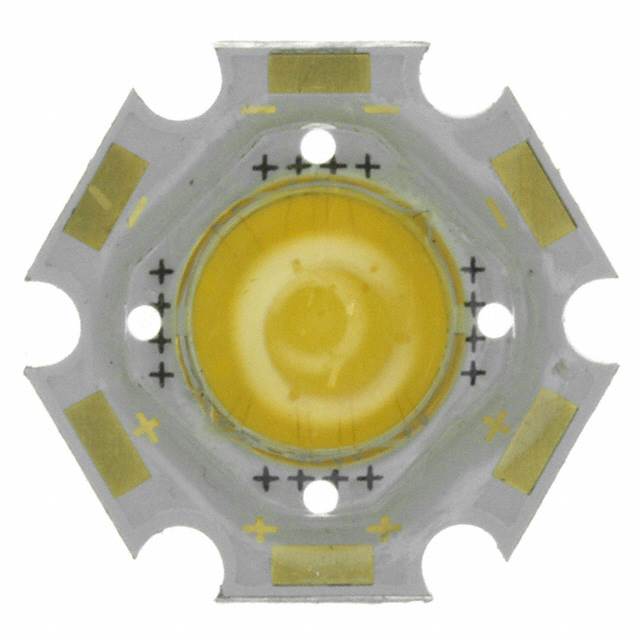

Picture of OV14ZWW-3

OV14ZWW-3

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal XIV Star
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 550 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 39 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : 8.18mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OV4ZAAAA

OV4ZAAAA

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal IV Star
Part Status : Obsolete
Type : LED Module
Color : Amber
CCT (K) : -
Wavelength : 590nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 109 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 8.6V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OV4ZBBBB

OV4ZBBBB

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal IV Star
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 458nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 29 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OV4ZGGGG

OV4ZGGGG

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal IV Star
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 532nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 173 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13.1V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

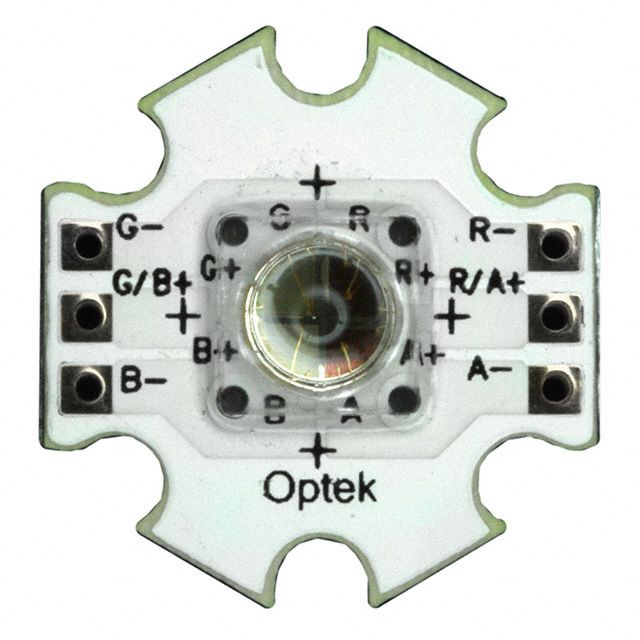

Picture of OV4ZRGBA

OV4ZRGBA

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal IV Star
Part Status : Obsolete
Type : LED Module
Color : Red, Green, Blue, Amber (RGBA)
CCT (K) : -
Wavelength : 625nm Red, 522nm Green, 455nm Blue, 585nm Amber
Configuration : Starboard
Flux @ Current/Temperature - Test : 35 lm (Typ) Red, 30 lm (Typ) Green, 5 lm (Typ) Blue, 36 lm (Typ) Amber
Current - Test : 350mA Red, 350mA Green, 350mA Blue, 350mA Amber
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.9V Green, 3.6V Blue, 2.5V Amber
Lumens/Watt @ Current - Test : 40 lm/W Red, 22 lm/W Green, 4 lm/W Blue, 41 lm/W Amber
Current - Max : 700mA Red, 700mA Green, 700mA Blue, 700mA Amber
CRI (Color Rendering Index) : -
Viewing Angle : 60°
Features : -
Size / Dimension : 21.00mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OV4ZRRRR

OV4ZRRRR

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : Optimal IV Star
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 625nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 102 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 8.7V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm Diameter
Height : 5.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OV4ZW

OV4ZW

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -

0

100 in stock
