TDK-Lambda Americas, Inc.
- TDK-Lambda Americas, Inc. was founded in 1948 and headquartered in San Diego, CA, the company is a leader in the design and manufacture of a wide range of AC-DC power supplies and DC-DC converters for Industrial, COTS, Medical, Telecom, Datacom, and Test & Measurement applications worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (240W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : -12V
Current - Output (Max) : 7A, 6A, 8A, 200mA
Power (Watts) : 120W (204W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm)
0
100 in stock

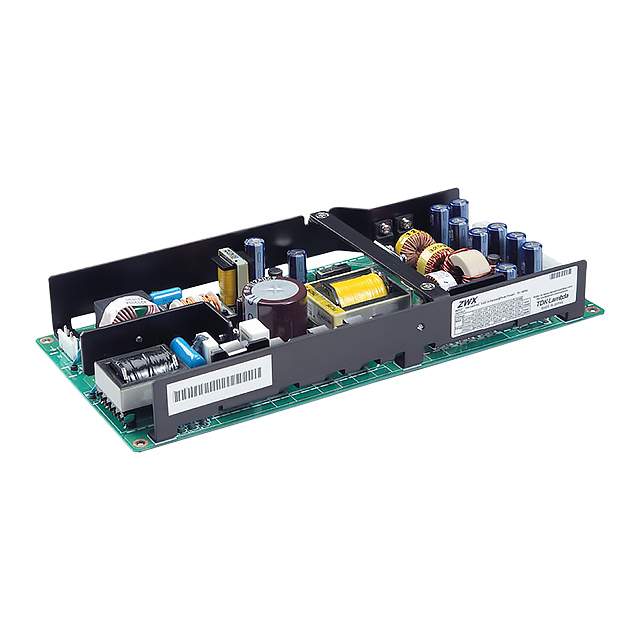

TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (300W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : 12V
Current - Output (Max) : 10A, 6A, 4A, 8A
Power (Watts) : 150W (255W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.84" L x 4.65" W x 1.50" H (250.0mm x 118.0mm x 38.0mm)
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (300W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : 12V
Current - Output (Max) : 10A, 6A, 4A, 8A
Power (Watts) : 150W (255W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.84" L x 4.65" W x 1.50" H (250.0mm x 118.0mm x 38.0mm)
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (300W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : 12V
Current - Output (Max) : 10A, 6A, 4A, 8A
Power (Watts) : 150W (255W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.84" L x 4.65" W x 1.50" H (250.0mm x 118.0mm x 38.0mm)
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (300W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : 12V
Current - Output (Max) : 10A, 6A, 4A, 8A
Power (Watts) : 150W (255W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.84" L x 4.65" W x 1.50" H (250.0mm x 118.0mm x 38.0mm)
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX (300W)
Part Status : Active
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 85 ~ 265 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : 5V
Voltage - Output 3 : 12V
Voltage - Output 4 : 12V
Current - Output (Max) : 10A, 6A, 4A, 8A
Power (Watts) : 150W (255W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.84" L x 4.65" W x 1.50" H (250.0mm x 118.0mm x 38.0mm)
0
100 in stock

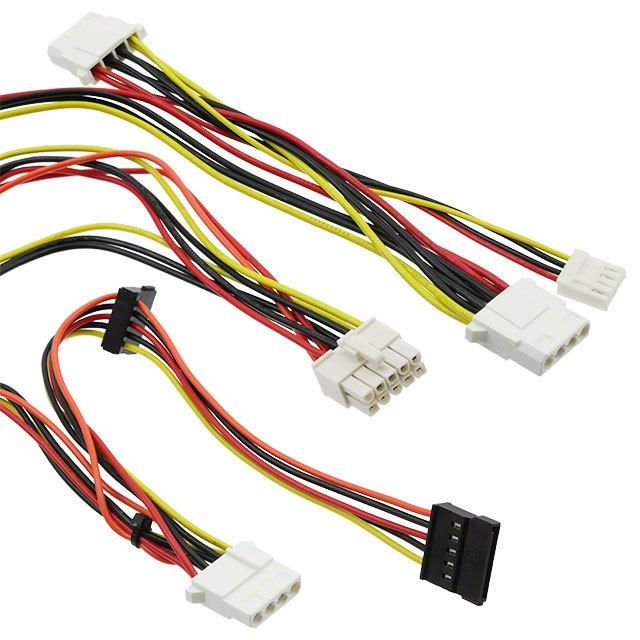

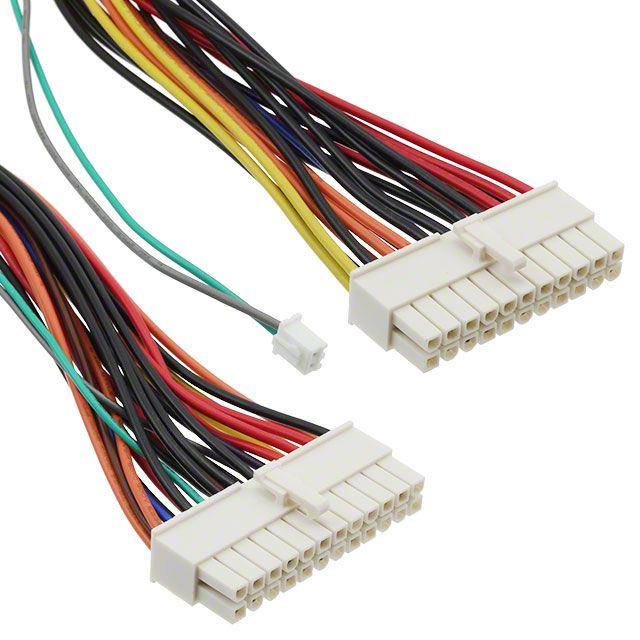

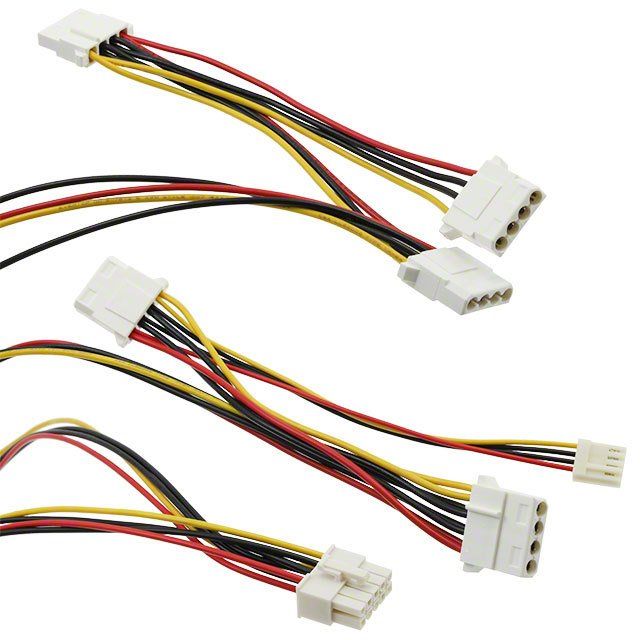

TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : ZWX Series Power Supplies
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : ZWX Series Power Supplies
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : ZWX300 Power Supply
0
100 in stock
TDK-Lambda Americas, Inc.
Manufacturer : TDK-Lambda Americas Inc.
Series : ZWX
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : ZWX Series Power Supplies
0
100 in stock
