Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

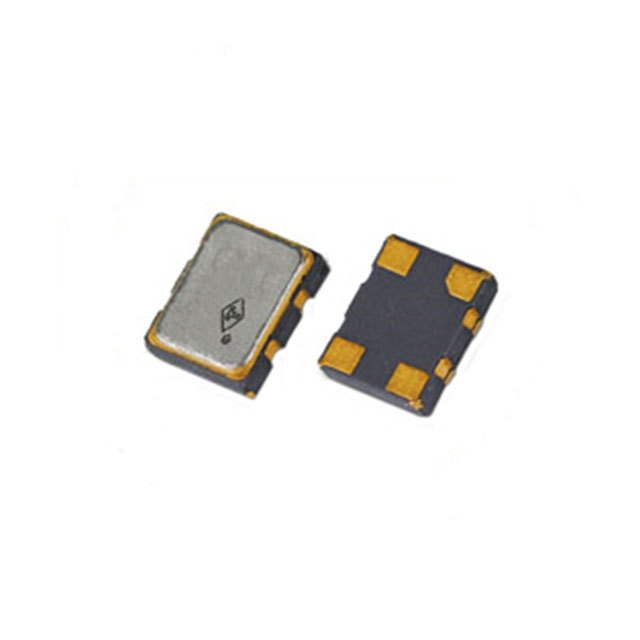

TYKTCCSANF-38.400000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TY
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 38.4MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.032" (0.80mm)

1280 in stock

TYKTDLSANF-50.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TY
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 50MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.032" (0.80mm)

465 in stock

VLCUWCWTNF-100.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VLCU
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 100MHz
Function : Enable/Disable
Output : Sine Wave
Voltage - Supply : 5V
Frequency Stability : ±35ppm
Absolute Pull Range (APR) : ±35ppm
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 30mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.547" L x 0.358" W (13.90mm x 9.10mm)
Height - Seated (Max) : 0.222" (5.65mm)

100 in stock

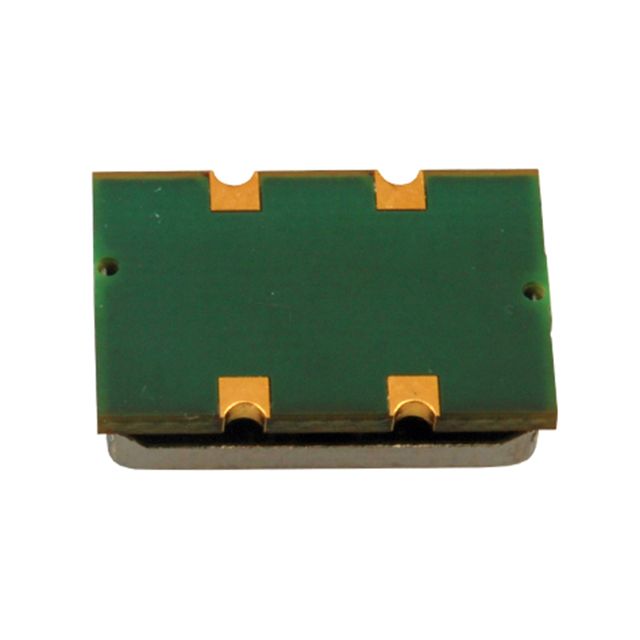

VLCUWCWTNF-122.880000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VLCU
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 122.88MHz
Function : Enable/Disable
Output : Sine Wave
Voltage - Supply : 5V
Frequency Stability : ±35ppm
Absolute Pull Range (APR) : ±35ppm
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 30mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.547" L x 0.358" W (13.90mm x 9.10mm)
Height - Seated (Max) : 0.222" (5.65mm)

50 in stock

VLCUWCWTNF-125.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VLCU
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 125MHz
Function : Enable/Disable
Output : Sine Wave
Voltage - Supply : 5V
Frequency Stability : ±35ppm
Absolute Pull Range (APR) : ±35ppm
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 30mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.547" L x 0.358" W (13.90mm x 9.10mm)
Height - Seated (Max) : 0.222" (5.65mm)

45 in stock

VTEMPCJANF-200.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 200MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 50mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

111 in stock

VTEMPCLANF-156.250000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 156.25MHz
Function : Enable/Disable
Output : LVPECL
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 100mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

50 in stock

VTEMPLLANF-153.600000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 153.6MHz
Function : Enable/Disable
Output : LVPECL
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 100mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

50 in stock

VTEMPLLANF-614.400000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 614.4MHz
Function : Enable/Disable
Output : LVPECL
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 100mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

44 in stock

VTEUALJANF-122.880000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 122.88MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 40mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

204 in stock

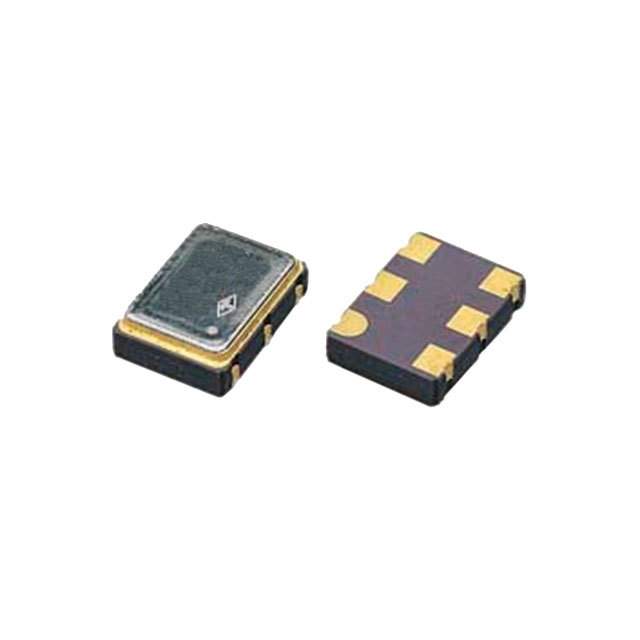

VTEUALJANF-153.600000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 153.6MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 40mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

425 in stock

VTEUALJANF-30.720000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VT
Part Status : Active
Base Resonator : Crystal
Type : VCXO
Frequency : 30.72MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : ±50ppm
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.075" (1.90mm)

111 in stock
