SWITCHCRAFT®
- SWITCHCRAFT®, founded in 1946, is headquartered in Chicago, IL USA and still manufactures product in Chicago today. In 1999, SWITCHCRAFT® acquired Conxall®, located in Villa Park, IL, a leading manufacturer of harsh environment connectors and custom cable assemblies, adding to the already extensive line of SWITCHCRAFT® connector products.
SWITCHCRAFT®, Inc. is a leading US based manufacturer of connectors, jacks, plugs, switches, molded cable assemblies and patchbays. SWITCHCRAFT® products are used in a variety of applications from broadcast and pro audio to medical, lighting, security, transportation and other industrial applications. Experience and attention to detail make Switchcraft a leader in Harsh Environment Connectivity Solutions.
Conxall manufactures a wide range of circular sealed plastic connectors and molded cable assemblies. In addition to their line of standard product they also specialize in custom cable assemblies and connector options. Conxall products are used in a wide variety of applications, especially those requiring protection from harsh environmental conditions. Experience and attention to detail make Conxall a leader in Harsh Environment Connectivity Solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock

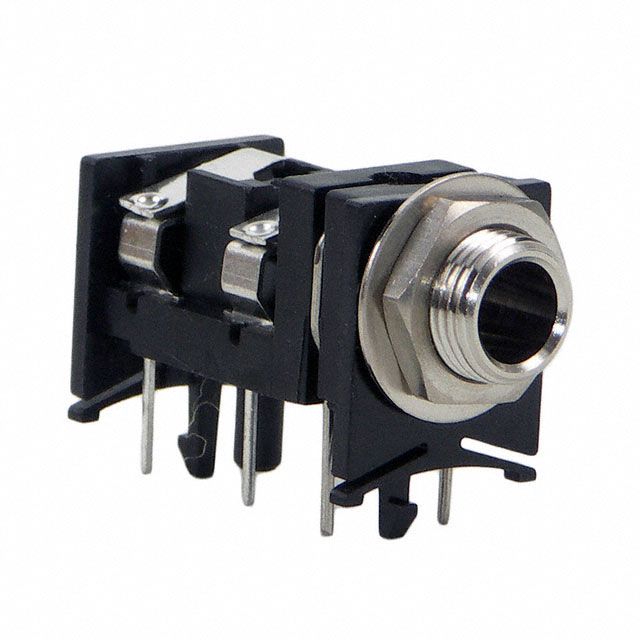

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN49C
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 5 Contacts
Internal Switch(s) : Two Switches
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70B
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70B
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70B
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 5 Contacts
Internal Switch(s) : Two Switches
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70C
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70C
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : SN70C
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Female
Industry Recognized Mating Diameter : 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter : 0.076" (1.93mm ID), 0.226" (5.75mm OD)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware
Insulation Color : -
Voltage - Rated : 24VAC/DC
Current Rating : 10A
Mating Length/Depth : -
Ingress Protection : -
0
96 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : CF
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.90mm ID (0.075")
Actual Diameter : 0.075" (1.90mm ID)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : Black
Voltage - Rated : 24V
Current Rating : 11A
Mating Length/Depth : -
Ingress Protection : -
0
95 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : CF
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.90mm ID (0.075")
Actual Diameter : 0.075" (1.90mm ID)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : Black
Voltage - Rated : 24V
Current Rating : 11A
Mating Length/Depth : -
Ingress Protection : -
0
98 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : CF
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.90mm ID (0.075")
Actual Diameter : 0.075" (1.90mm ID)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Strain Relief
Insulation Color : Black
Voltage - Rated : 24V
Current Rating : 11A
Mating Length/Depth : -
Ingress Protection : -
0
75 in stock

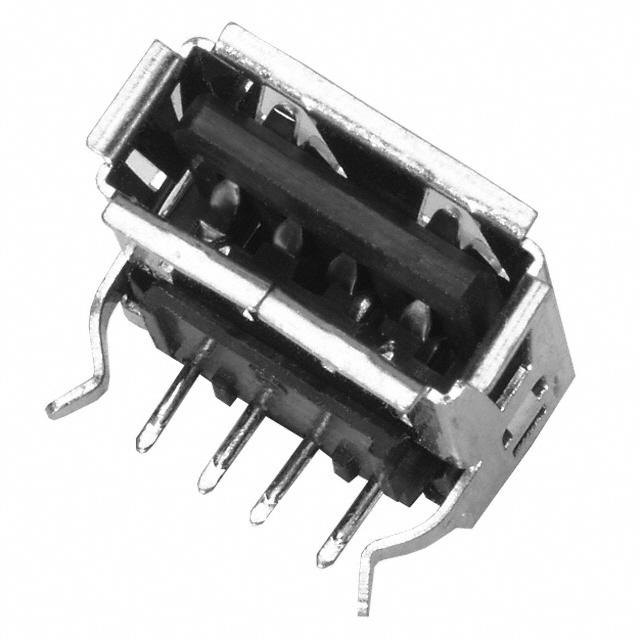

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Connector Type : USB - A
Number of Contacts : 4
Gender : Receptacle
Specifications : -
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : -
Voltage - Rated : -
Mating Cycles : 1500
Shielding : Shielded
0
100 in stock
