Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

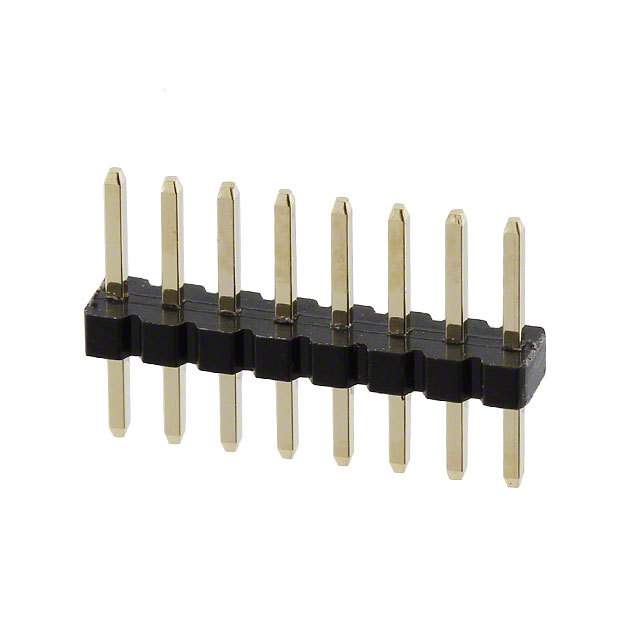

GRPB081VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
23442 in stock

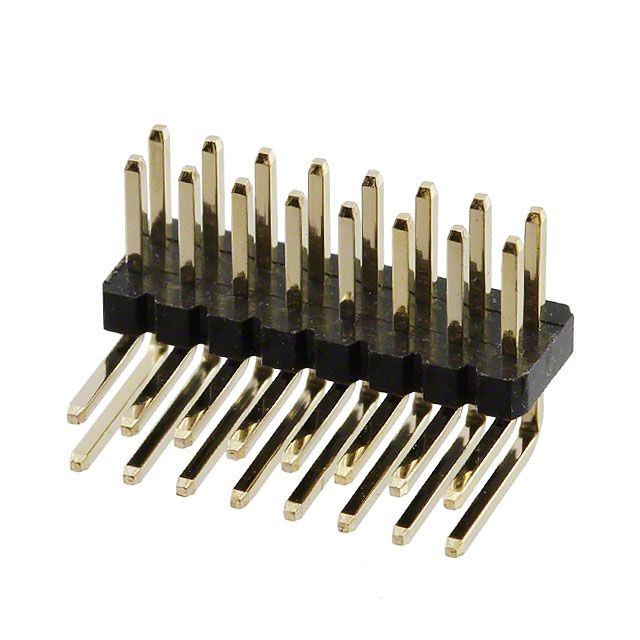

GRPB082MWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
1387 in stock

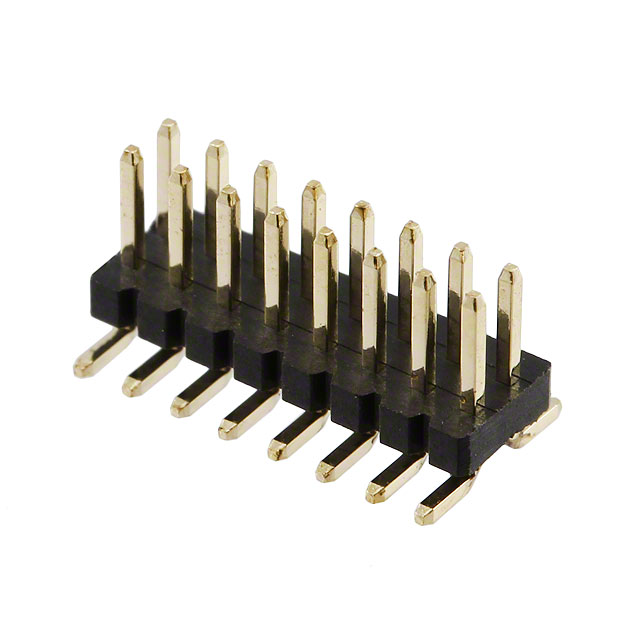

GRPB082VWQP-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
809 in stock

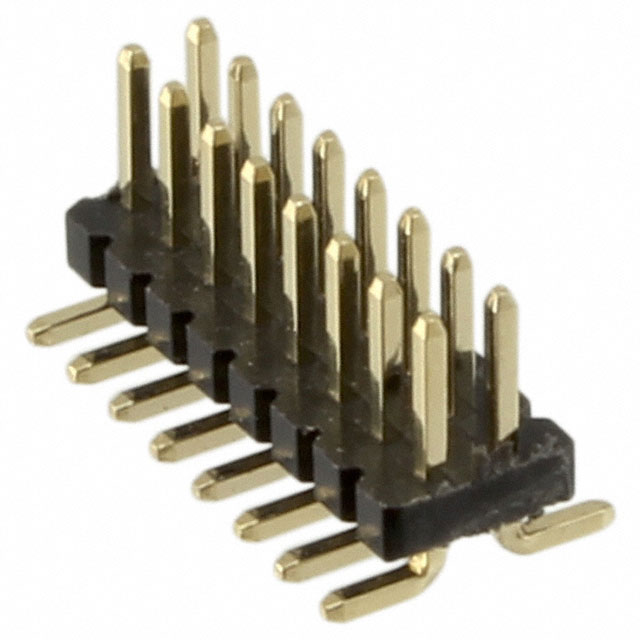

GRPB082VWQS-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Tube
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
1037 in stock

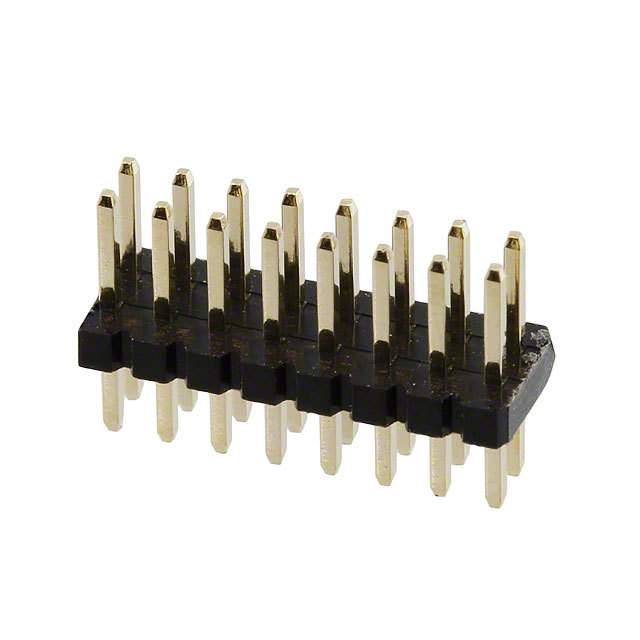

GRPB082VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
6554 in stock
GRPB091VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
928 in stock

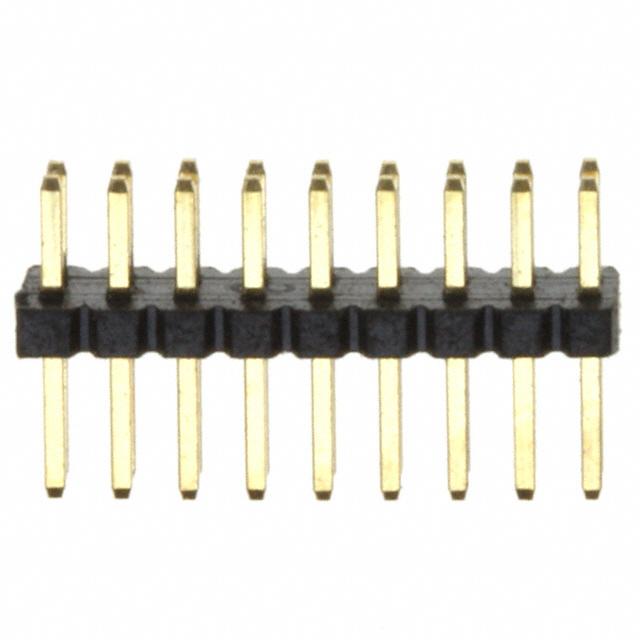

GRPB092VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 18
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 18
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
937 in stock

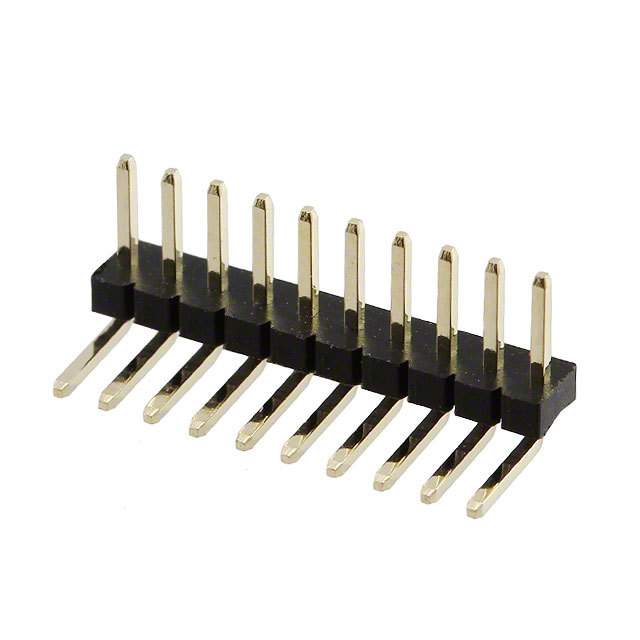

GRPB101VWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.084" (2.14mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.084" (2.14mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
14608 in stock

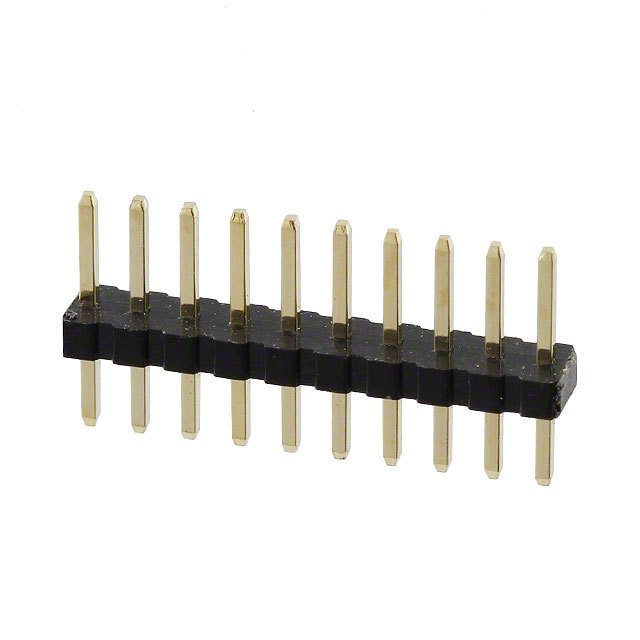

GRPB101VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
13475 in stock

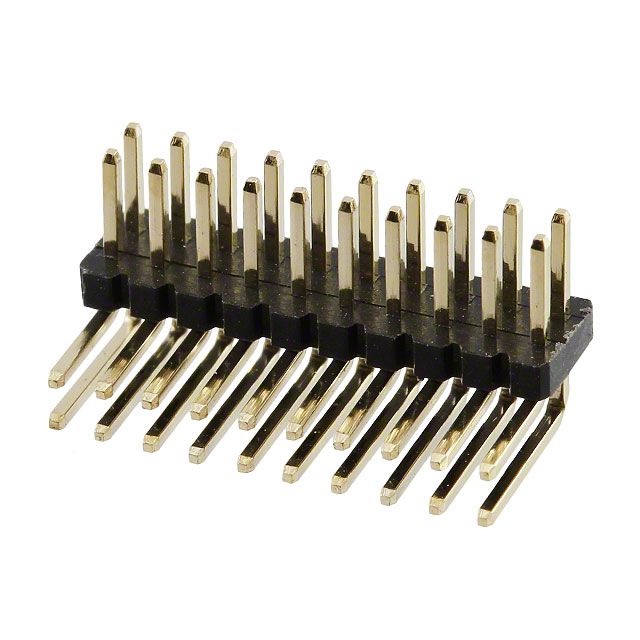

GRPB102MWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
804 in stock

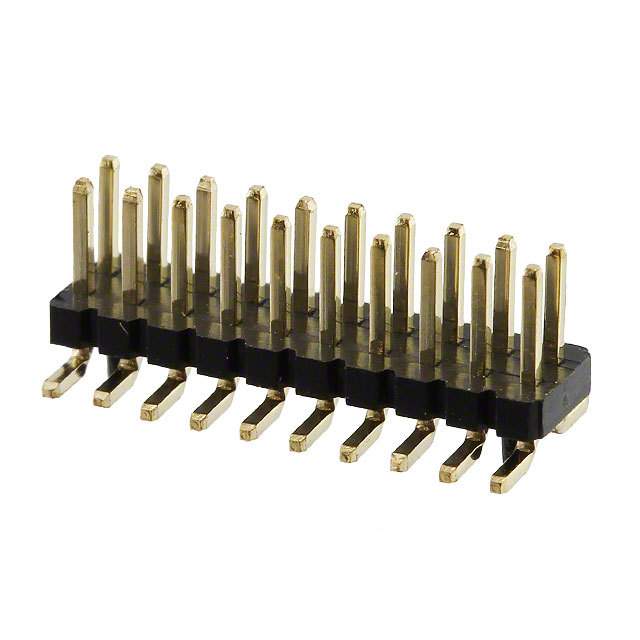

GRPB102VWQP-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
3858 in stock

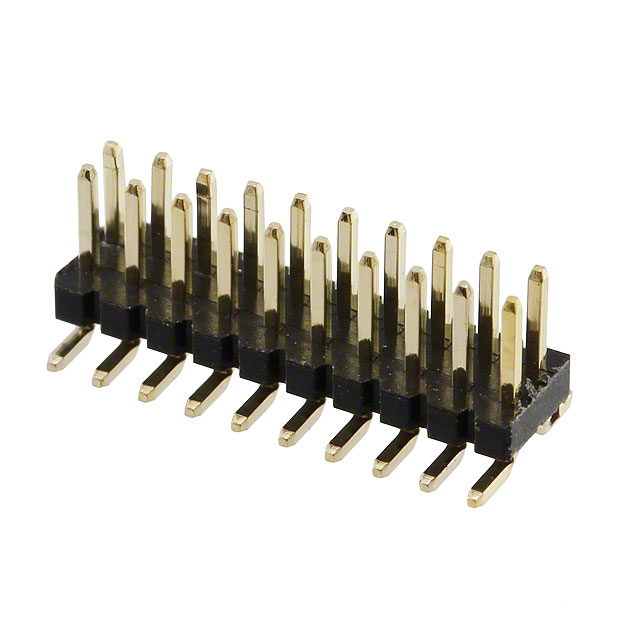

GRPB102VWQS-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
1466 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
