SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock

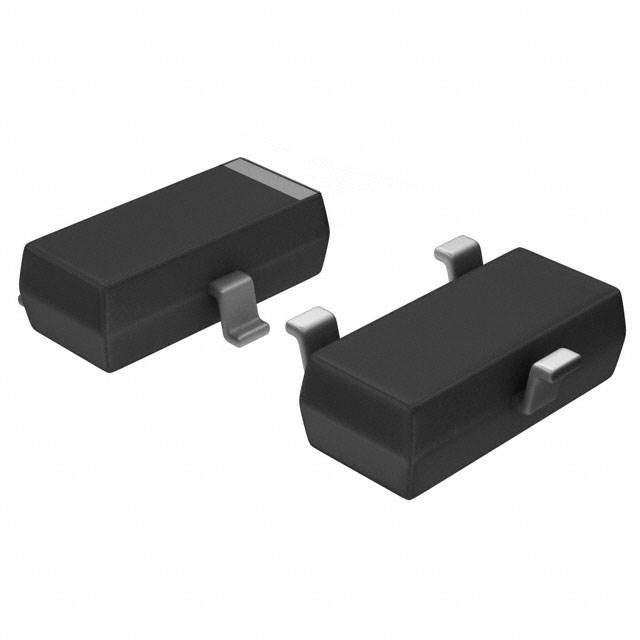

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
4ns
2.5µA @ 75V
2pF @ 0V, 1MHz
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 2.5µA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
Operating Temperature - Junction : -55°C ~ 150°C
0
4529 in stock

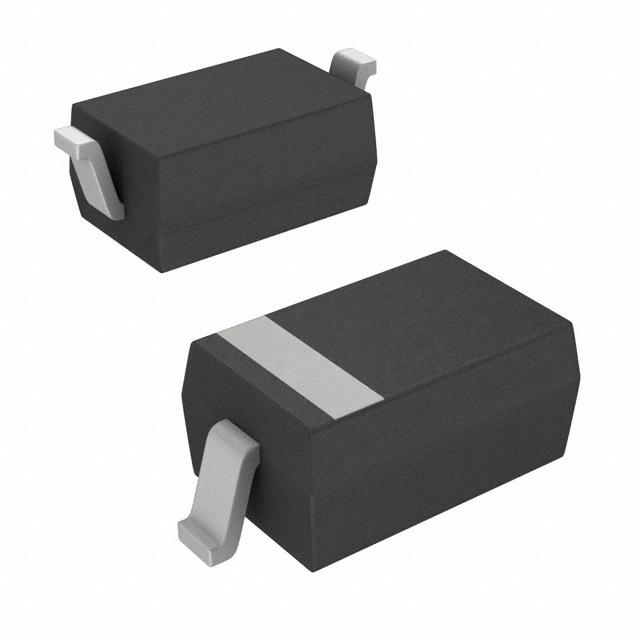

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 5.1V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 17 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 2V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
5930 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 10V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 17 Ohms
Current - Reverse Leakage @ Vr : 3µA @ 8V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
6000 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 12V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 30 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 9V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
5965 in stock

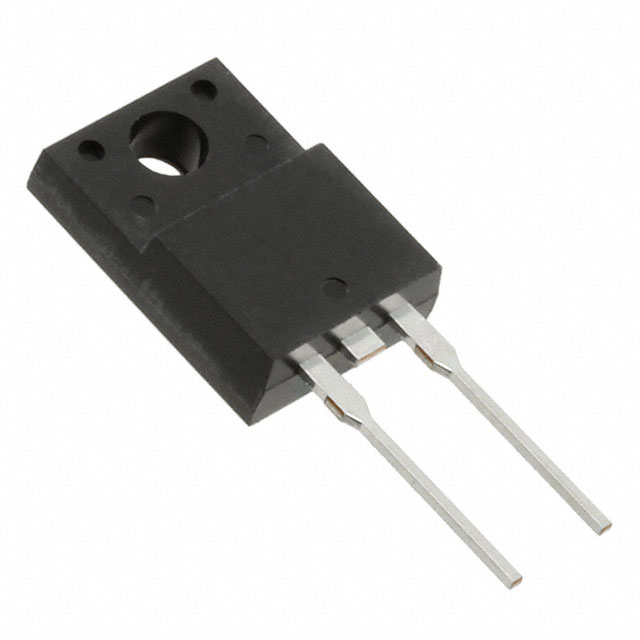

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 2.2V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
6976 in stock

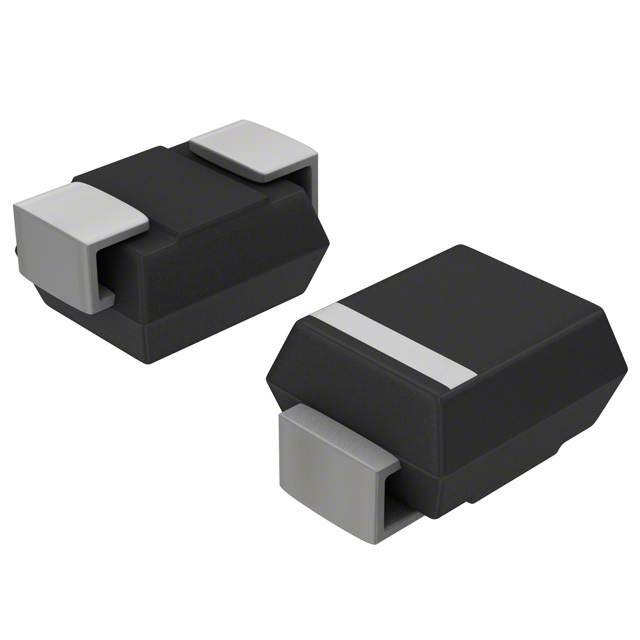

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 2µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
Operating Temperature - Junction : -55°C ~ 150°C
0
8280 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
Operating Temperature - Junction : -65°C ~ 175°C
0
919 in stock

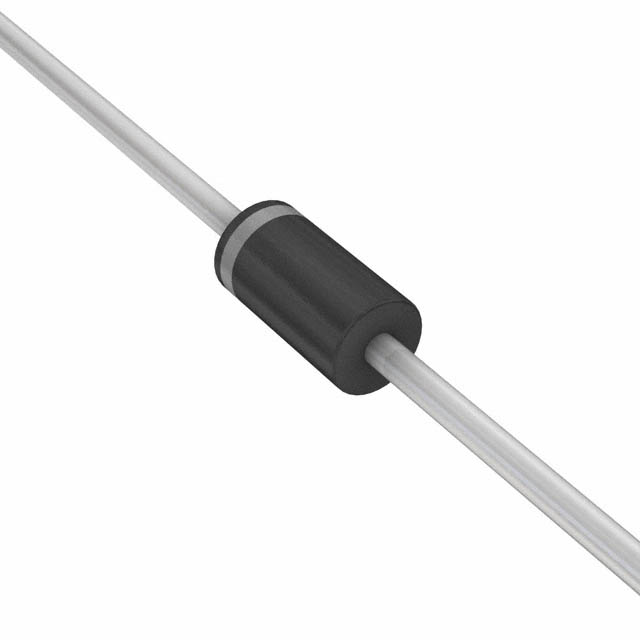

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 342V
Voltage - Breakdown (Min) : 380V
Voltage - Clamping (Max) @ Ipp : 548V
Current - Peak Pulse (10/1000µs) : 730mA
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
0
3635 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P6KE
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 85.5V
Voltage - Breakdown (Min) : 95V
Voltage - Clamping (Max) @ Ipp : 137V
Current - Peak Pulse (10/1000µs) : 4.4A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
0
2900 in stock

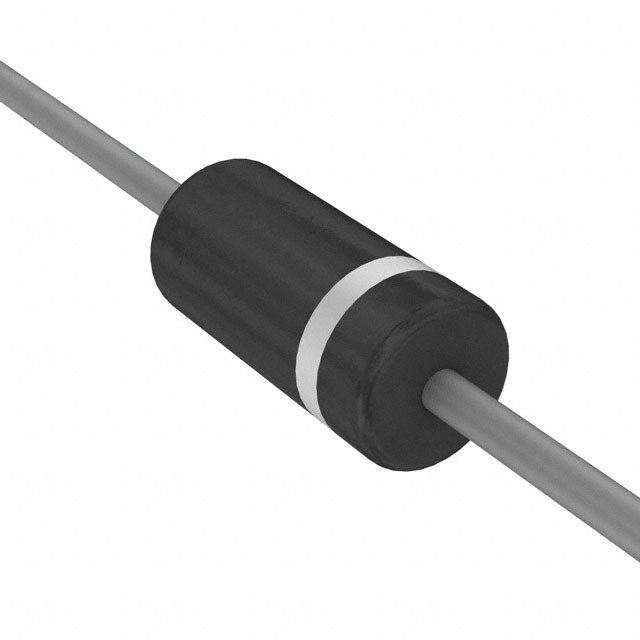

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P6KE
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 102V
Voltage - Breakdown (Min) : 114V
Voltage - Clamping (Max) @ Ipp : 165V
Current - Peak Pulse (10/1000µs) : 3.6A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
0
1625 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P6KE
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 154V
Voltage - Breakdown (Min) : 171V
Voltage - Clamping (Max) @ Ipp : 246V
Current - Peak Pulse (10/1000µs) : 2.5A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
0
3000 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P6KE
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 23.1V
Voltage - Breakdown (Min) : 25.7V
Voltage - Clamping (Max) @ Ipp : 37.5V
Current - Peak Pulse (10/1000µs) : 16.2A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
0
1000 in stock
