Schurter
- SCHURTER Electronic Components is a progressive innovator and manufacturer of Fuses, Circuit Breakers, Connectors, EMC Components and Input systems, including Switches. For over 75 years, SCHURTER components have provided safe, clean power and make the interface between human and machine easier. Our primary markets include Data Communications, Industrial, Renewable Energy, Medical and Test Instrumentation.
Part Number
Manufacturer
Description
Unit Price
In Stock

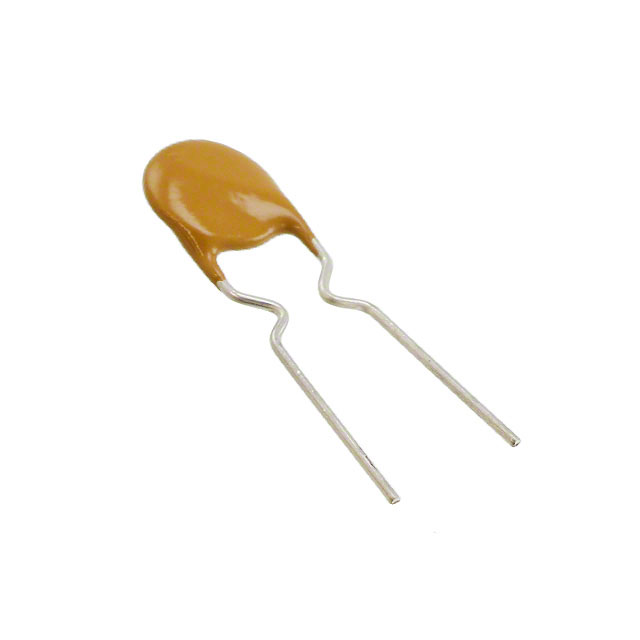

PFRA.020
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
500 in stock

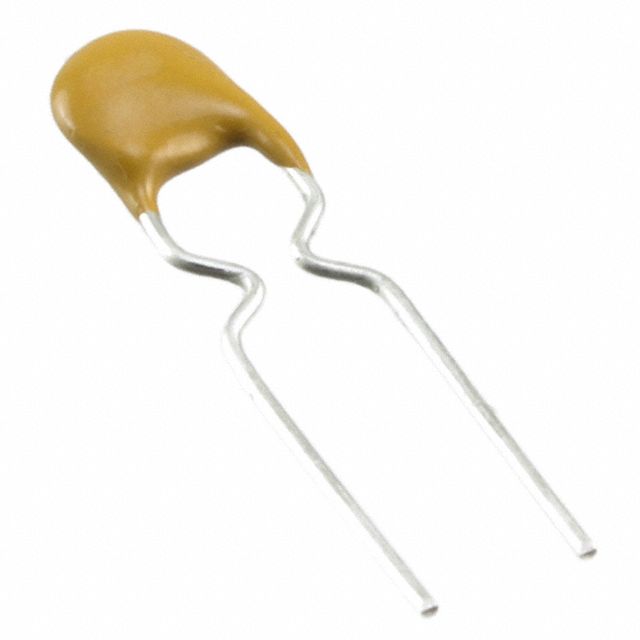

PFRA.025
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1833 in stock
PFRA.030
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 760 mOhms
Resistance - Post Trip (R1) (Max) : 2.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.528" (13.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 760 mOhms
Resistance - Post Trip (R1) (Max) : 2.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.528" (13.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
451 in stock
PFRA.040
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 800mA
Time to Trip : 3.8s
Resistance - Initial (Ri) (Min) : 520 mOhms
Resistance - Post Trip (R1) (Max) : 1.29 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 800mA
Time to Trip : 3.8s
Resistance - Initial (Ri) (Min) : 520 mOhms
Resistance - Post Trip (R1) (Max) : 1.29 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
977 in stock
PFRA.050
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4705 in stock
PFRA.065
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.3s
Resistance - Initial (Ri) (Min) : 270 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.122" T (9.70mm x 3.10mm)
Height - Seated (Max) : 0.598" (15.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.3s
Resistance - Initial (Ri) (Min) : 270 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.122" T (9.70mm x 3.10mm)
Height - Seated (Max) : 0.598" (15.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
397 in stock
PFRA.075
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 6.3s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 600 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" Dia x 0.122" T (10.40mm x 3.10mm)
Height - Seated (Max) : 0.630" (16.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 6.3s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 600 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" Dia x 0.122" T (10.40mm x 3.10mm)
Height - Seated (Max) : 0.630" (16.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
674 in stock

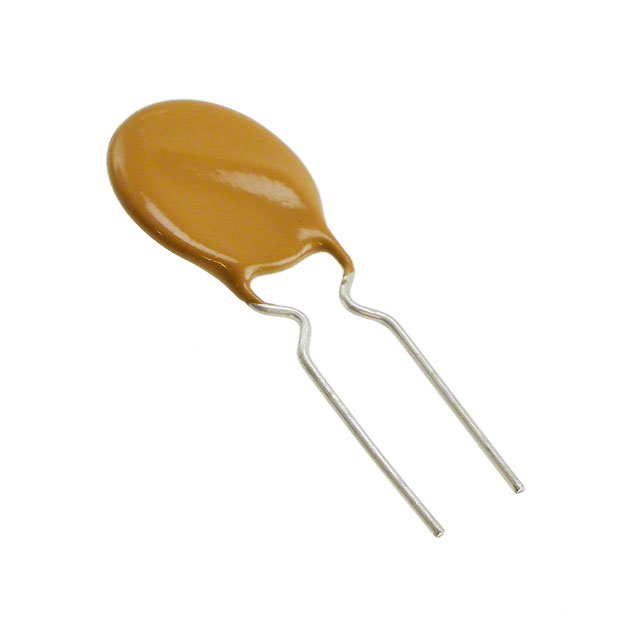

PFRA.090
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 140 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 140 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1294 in stock
PFRA.090.009
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 5.9s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 5.9s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
500 in stock
PFRA.110
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 6.6s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 270 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" Dia x 0.118" T (8.90mm x 3.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 6.6s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 270 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" Dia x 0.118" T (8.90mm x 3.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2194 in stock
PFRA.1100
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 22A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 22A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
370 in stock
PFRA.135
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 7.3s
Resistance - Initial (Ri) (Min) : 65 mOhms
Resistance - Post Trip (R1) (Max) : 170 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" Dia x 0.118" T (8.90mm x 3.00mm)
Height - Seated (Max) : 0.744" (18.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 7.3s
Resistance - Initial (Ri) (Min) : 65 mOhms
Resistance - Post Trip (R1) (Max) : 170 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" Dia x 0.118" T (8.90mm x 3.00mm)
Height - Seated (Max) : 0.744" (18.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
500 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
