Schaffner EMC, Inc.

- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.

With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.

With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.


Part Number

Manufacturer

Description

Unit Price

In Stock

RN216-0.5-02-39M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 920 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

500 in stock

RN216-0.5-02-47M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 960 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

1052 in stock

RN216-0.8-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 370 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

495 in stock

RN216-1.3-02-6M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.3A
DC Resistance (DCR) (Max) : 140 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

498 in stock

RN216-1.5-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 148 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

245 in stock

RN216-1.7-02-4M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 10kHz
Current Rating (Max) : 1.7A
DC Resistance (DCR) (Max) : 87 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

354 in stock

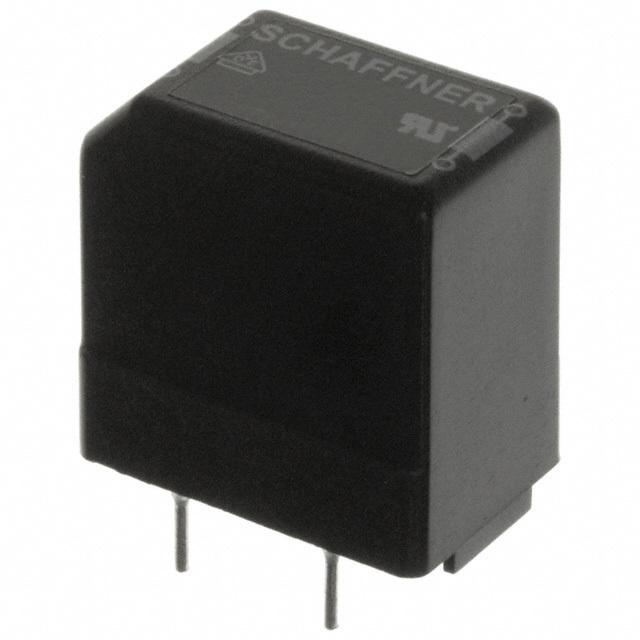

RN216-1-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 210 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

481 in stock

RN216-1-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 260 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

2495 in stock

RN216-2-02-2M2

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 66 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

484 in stock

RN216-2-02-3M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

500 in stock

RN218-0.4-02-100M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 2.8 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

375 in stock

RN218-0.6-02-47M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 1.2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin

500 in stock
