Qualtek Electronics Corp.
Part Number
Manufacturer
Description
Unit Price
In Stock

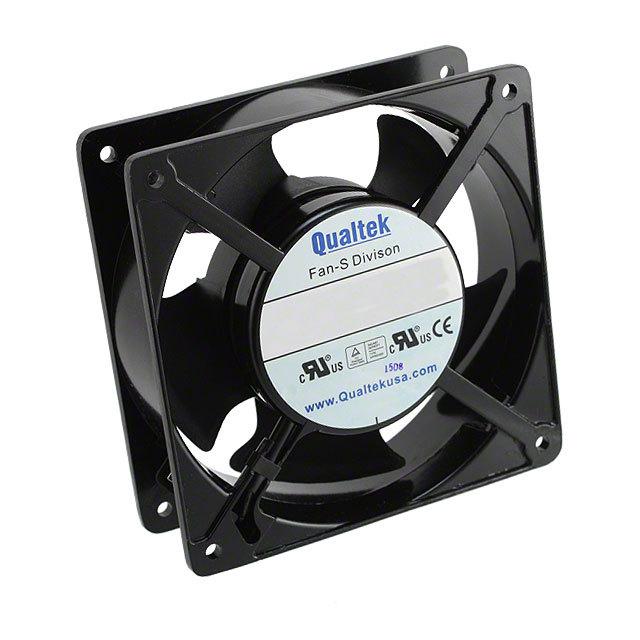

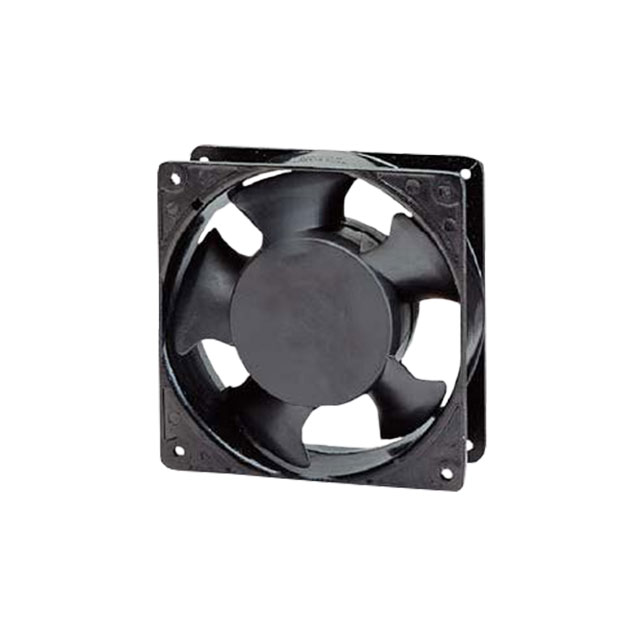

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 103.5 CFM (2.90m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 17.60W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 107.0 CFM (3.00m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.1 dB(A)
Power (Watts) : 19.80W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
236 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 9.40W
RPM : 2200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
9 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 9.40W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
50 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 87.0 CFM (2.44m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 12.50W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
71 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 87.0 CFM (2.44m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 12.50W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
25 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 97.0 CFM (2.72m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 44.5 dB(A)
Power (Watts) : 14.80W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
100 in stock

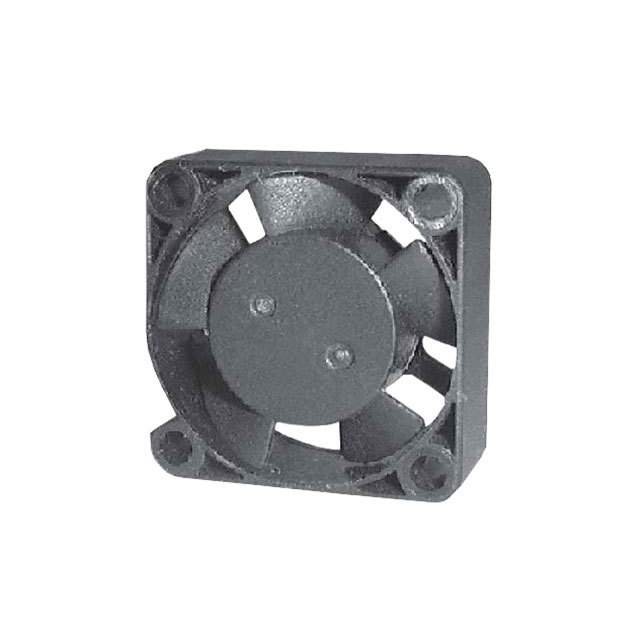

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-02510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.1 CFM (0.059m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 23.0 dB(A)
Power (Watts) : 720mW
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.018 lb (8.16g)
0
941 in stock

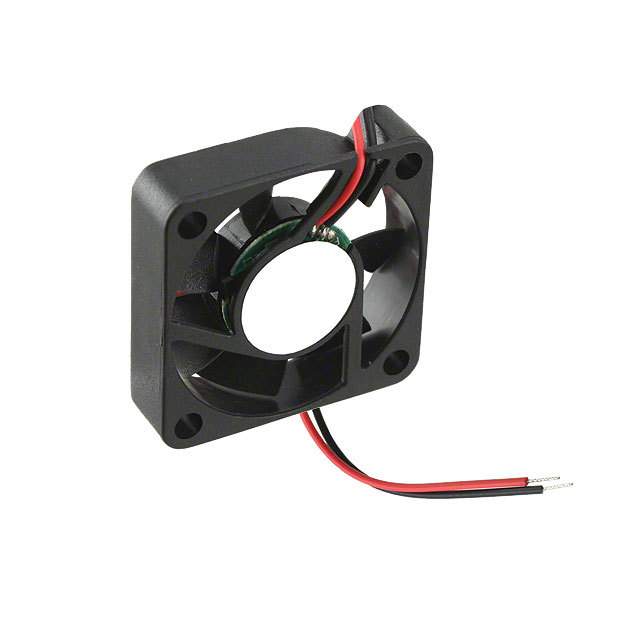

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-04010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.2 CFM (0.174m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB(A)
Power (Watts) : 800mW
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.037 lb (16.78g)
0
527 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-04010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 21.0 dB(A)
Power (Watts) : 350mW
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.037 lb (16.78g)
0
3531 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-04010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.078 in H2O (19.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB(A)
Power (Watts) : 550mW
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.037 lb (16.78g)
0
1335 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FAD1-04010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Hydrodynamic
Fan Type : Tubeaxial
Features : -
Noise : 21.0 dB(A)
Power (Watts) : 350mW
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.037 lb (16.78g)
0
1352 in stock
