Qualtek Electronics Corp.


Part Number

Manufacturer

Description

Unit Price

In Stock

851-03/004

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : 851
Part Status : Active
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 3A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : 2.8mH

833 in stock

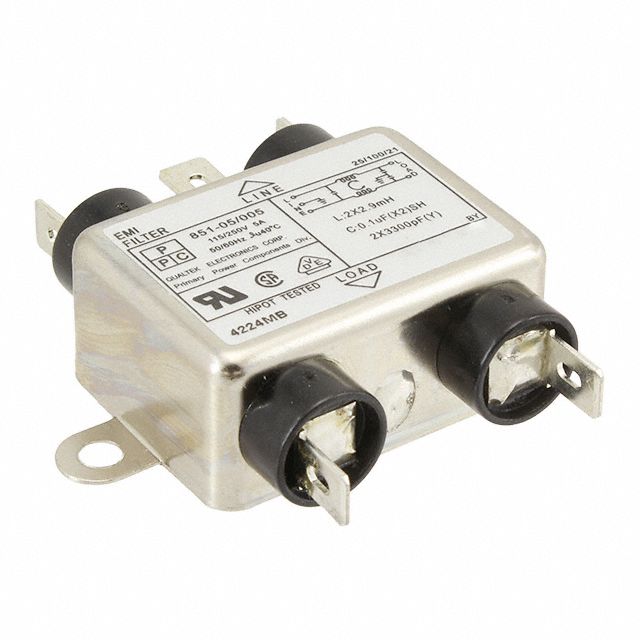

851-05/005

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : 851
Part Status : Active
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 5A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Termination Style : Quick Connect
Inductance : 2.9mH

198 in stock

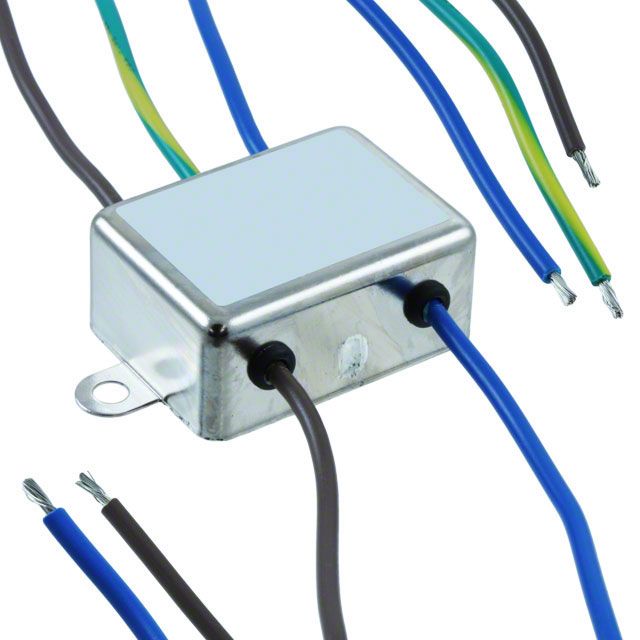

851-05/006

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : 851
Part Status : Active
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 5A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : 2.9mH

3031 in stock

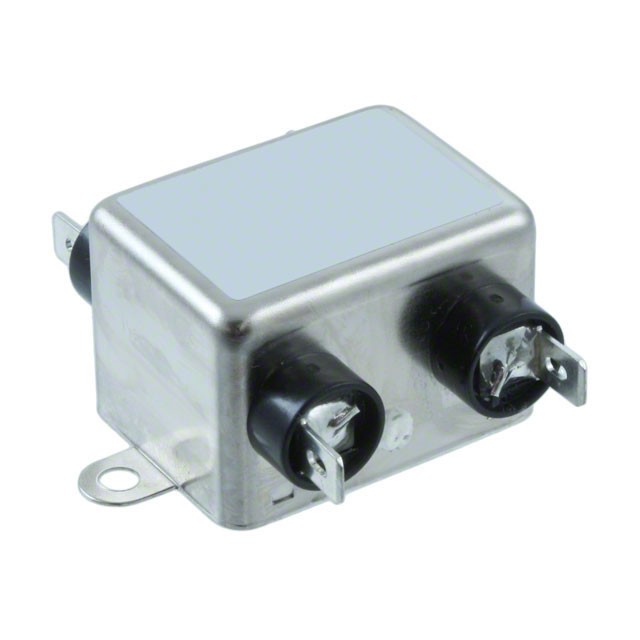

851-10/007

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : 851
Part Status : Active
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Termination Style : Quick Connect
Inductance : 1.5mH

347 in stock

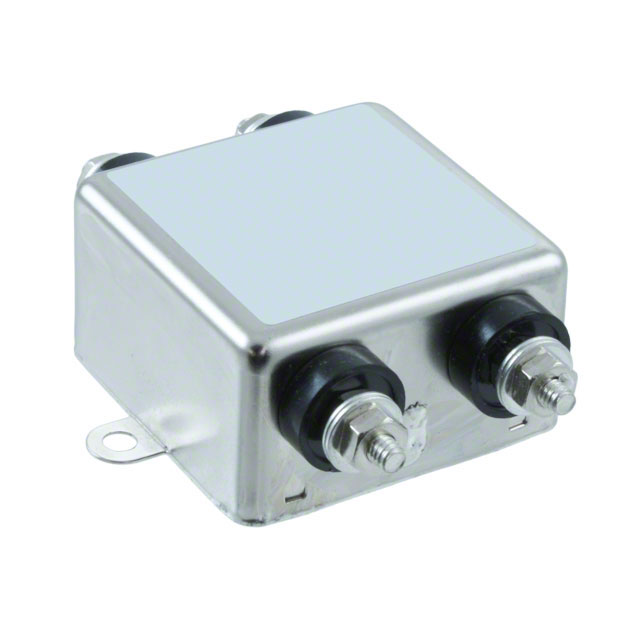

851-20/011

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : 851
Part Status : Active
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 20A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Termination Style : Threaded Post (8-32)
Inductance : 700µH

52 in stock

857-01/005

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 857
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 1A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 28.45mm x 21.59mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

100 in stock

857-03/017

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 857
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 3A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 28.45mm x 21.59mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, DEMKO, FIMKO, NEMKO, S+ MARK, SEMKO, UL, VDE

100 in stock

857-06/024

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 857
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 6A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange, Right Angle
Termination : Quick Connect
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 30.48mm x 22.86mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

100 in stock

857-06/027

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 857
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 6A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 30.48mm x 21.59mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

100 in stock

857-10/033

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 857
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 10A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 28.45mm x 21.59mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

100 in stock

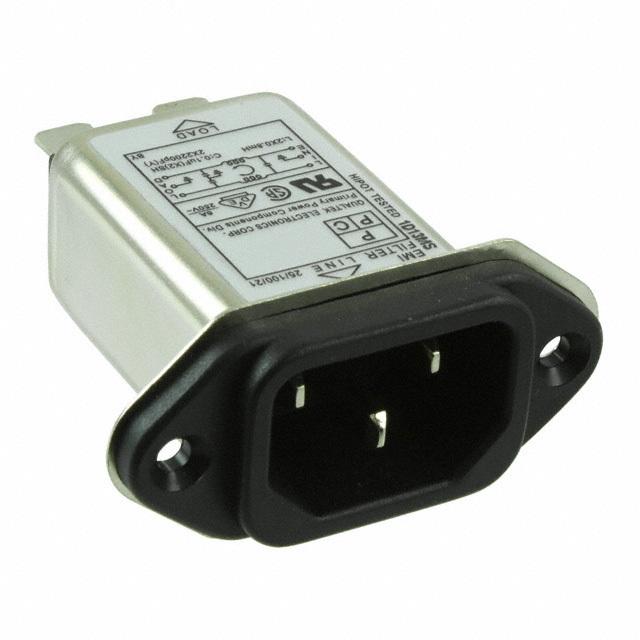

858-01/019

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 858
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 1A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Solder Eyelet
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 28.45mm x 21.59mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

100 in stock

858-03/007

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Packaging : Bulk
Series : 858
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 3A
Voltage - IEC : 115/250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 28.45mm x 21.60mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE

381 in stock
