Qualtek Electronics Corp.
Part Number
Manufacturer
Description
Unit Price
In Stock

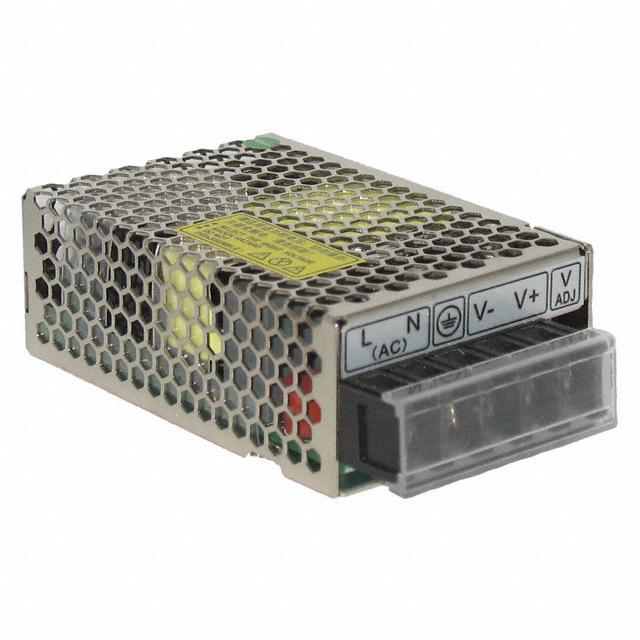

QPD-25-24
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPD-25 (25W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.1A
Power (Watts) : 25W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 84%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.11" L x 2.01" W x 1.10" H (79.0mm x 51.0mm x 28.0mm)
Series : QPD-25 (25W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.1A
Power (Watts) : 25W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 84%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.11" L x 2.01" W x 1.10" H (79.0mm x 51.0mm x 28.0mm)
0
34 in stock
QPD-60-12
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPD-60 (60W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
Series : QPD-60 (60W)
Part Status : Obsolete
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
0
4 in stock
QPD-60-24
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPD-60 (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
Series : QPD-60 (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
0
100 in stock

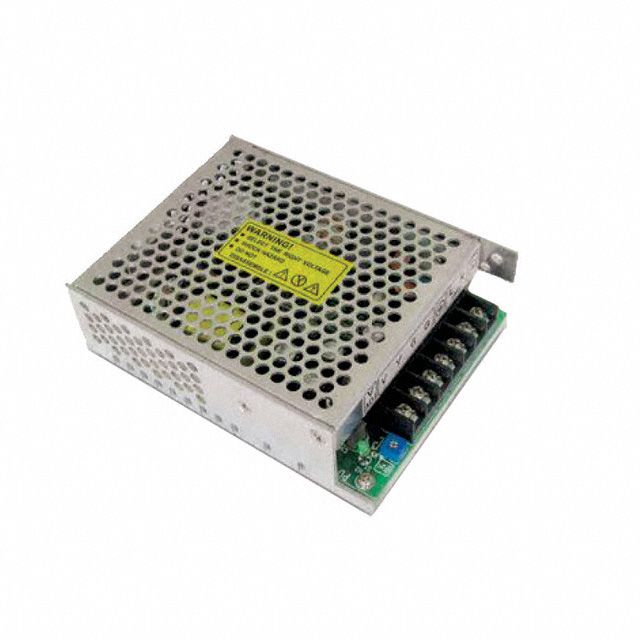

QPD-60-5
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPD-60 (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
Series : QPD-60 (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
0
100 in stock
QPDF-150-12
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-150 (150W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12.5A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm)
Series : QPDF-150 (150W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12.5A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm)
0
105 in stock

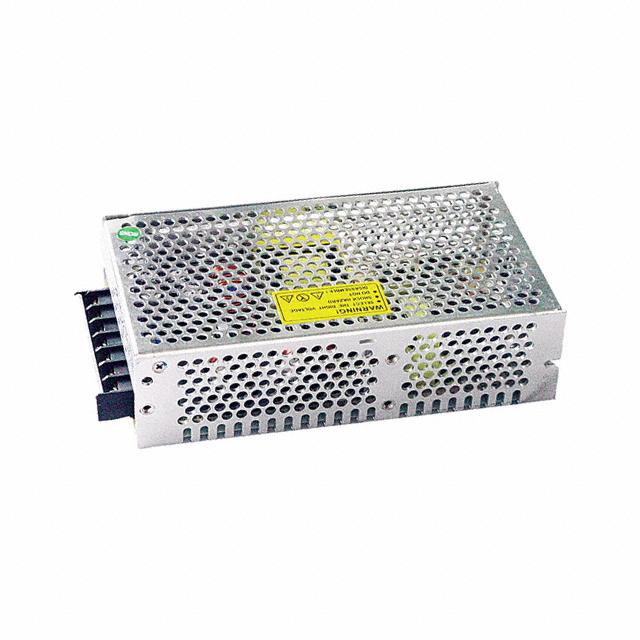

QPDF-150-24
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-150 (150W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm)
Series : QPDF-150 (150W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm)
0
140 in stock
QPDF-200-12
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 17A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 79%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 17A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 79%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
0
100 in stock

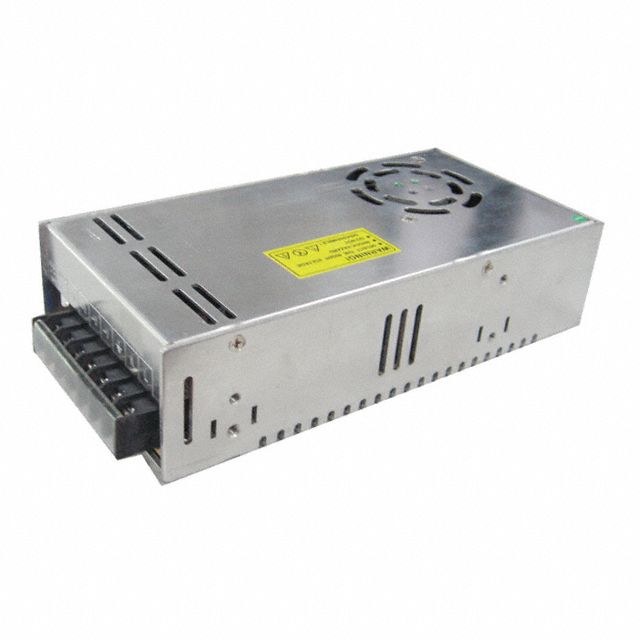

QPDF-200-24
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.4A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 82%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.4A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 82%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
0
100 in stock
QPDF-200-5
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
Series : QPDF-200 (200W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 200W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 83%
Operating Temperature : -10°C ~ 60°C
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
0
100 in stock

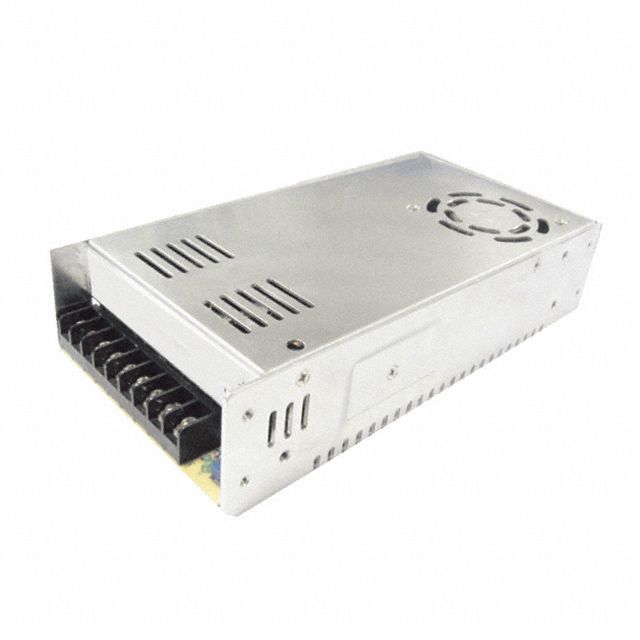

QPDF-320-12
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 25A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 25A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
0
15 in stock
QPDF-320-24
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 13A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 13A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
0
19 in stock
QPDF-320-5
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 60A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 79%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
Series : QPDF-320 (320W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 60A
Power (Watts) : 320W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 79%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm)
0
1 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
