Pulse Electronics Corporation

- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.

Part Number
Manufacturer
Description
Unit Price
In Stock

BV020-5389.0 BV020-5389.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 56mA, Series 28mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 0.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 19.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5390.0 BV020-5390.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 42mA, Series 21mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 0.5 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 19.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5391.0 BV020-5391.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 32mA, Series 16mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 0.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 19.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

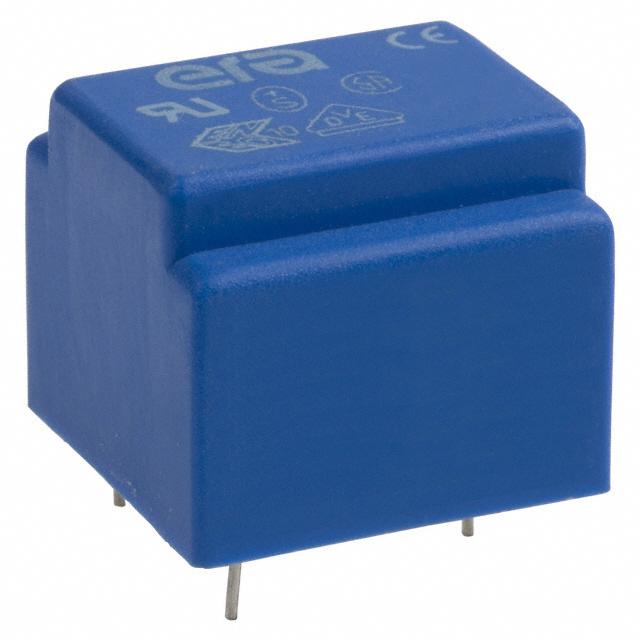

BV020-5393.0 BV020-5393.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 20mA, Series 10mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 0.5 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 19.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

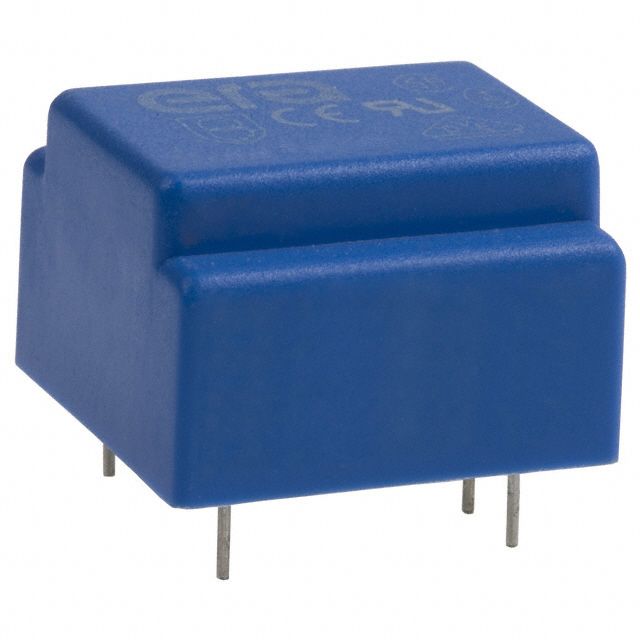

BV020-5411.0 BV020-5411.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6V
Current - Output (Max) : 58mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5413.0 BV020-5413.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 29mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5416.0 BV020-5416.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 14mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5423.0 BV020-5423.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : 6V
Current - Output (Max) : 58mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5424.0 BV020-5424.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : 9V
Current - Output (Max) : 39mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5425.0 BV020-5425.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 29mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Chassis Mount
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

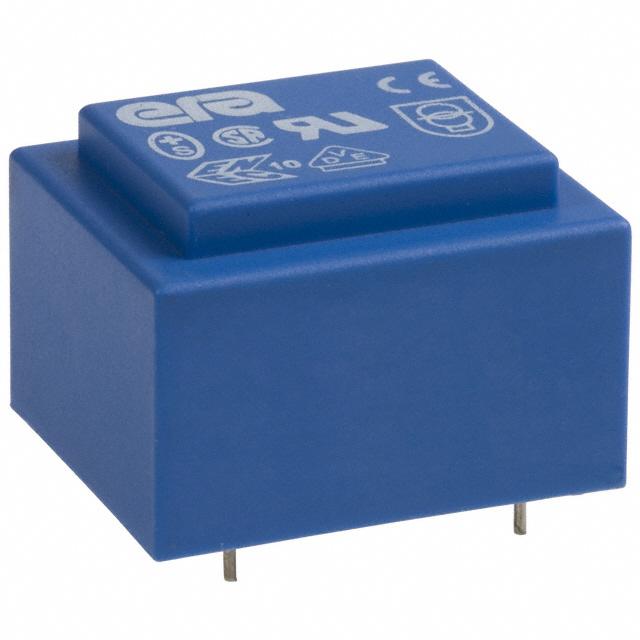

BV020-5426.0 BV020-5426.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : 15V
Current - Output (Max) : 23mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock

BV020-5427.0 BV020-5427.0

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 230V
Voltage - Secondary (Full Load) : 18V
Current - Output (Max) : 19mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 0.35 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 22.00mm L x 23.00mm W
Height - Seated (Max) : 15.00mm
Voltage - Isolation : -
Weight : 0.077 lb (34.93g)
0
100 in stock
